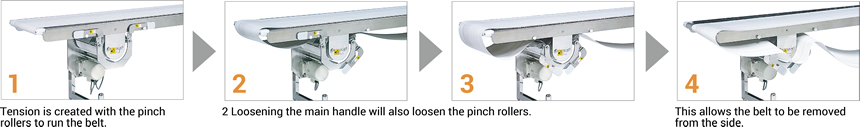

The belt can be replaced simply by releasing the auto tension structure with the handle.
A conveyor with a center drive that is also capable of coping with belt contraction.

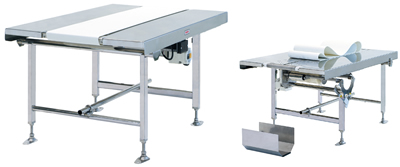

Easy-to-clean structure.

Overview

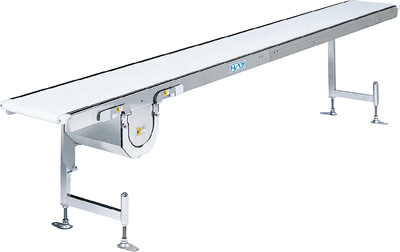

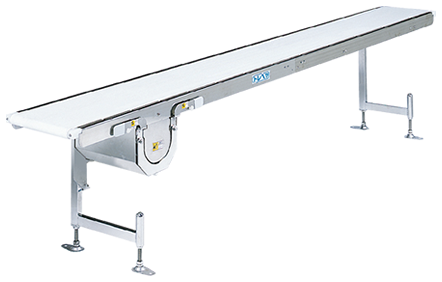

Product appearance

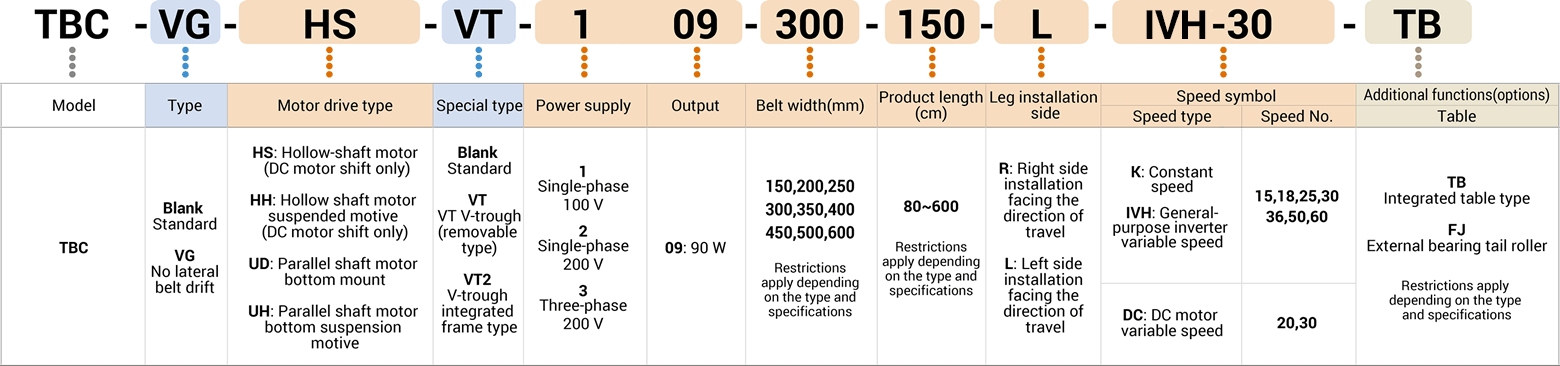

Key to model number designations

Note:
(1) When no symbol applies or no appended symbol is needed, the symbol and the hyphen (-) before it are omitted.
(2) The model designations shown here are for the purpose of illustrating the symbols, and in some cases may denote models that do not actually exist.
(3) See the options page for information on tail rollers with external bearings.
(4) See pages D-100/101 for more information on VT2.

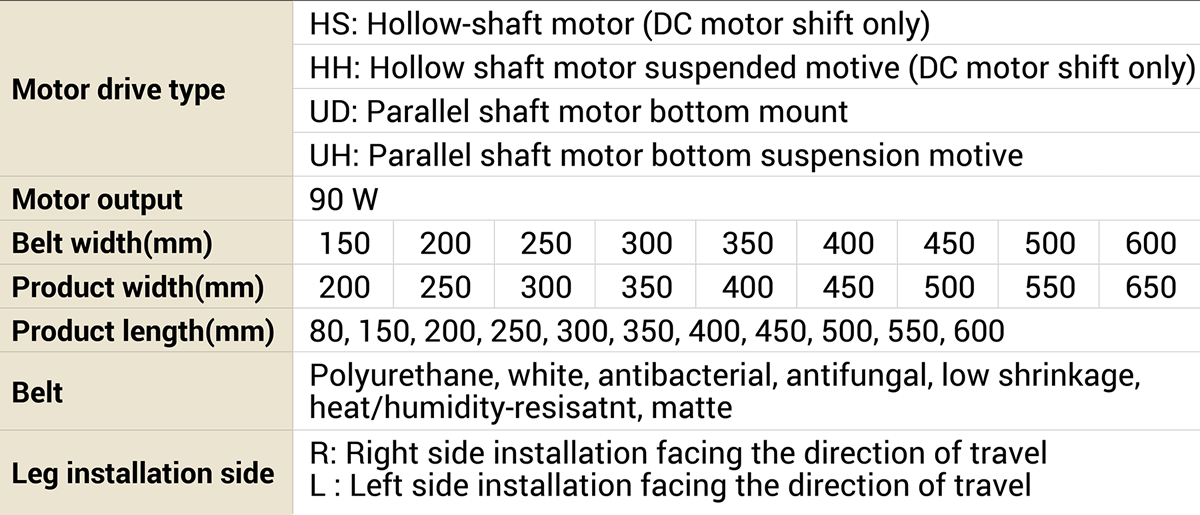

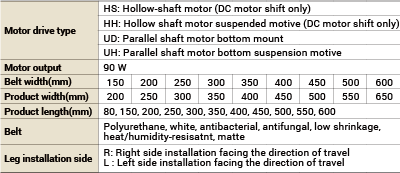

Specifications

Note:
(1) Use 50% of the value for the standard type as the guideline value for the VG type's conveyor payload.
(2) A belt width of 450 mm, 500 mm or 600 mm is set only for HH and UH.
(3) A belt width of 450 mm, 500 mm or 600 mm is set for wide conveyors. Comes with double support legs (FHT) as a standard option. The side with the snap lock will be the belt removal direction.

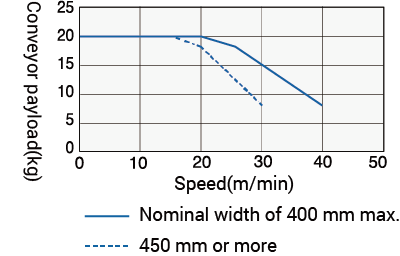

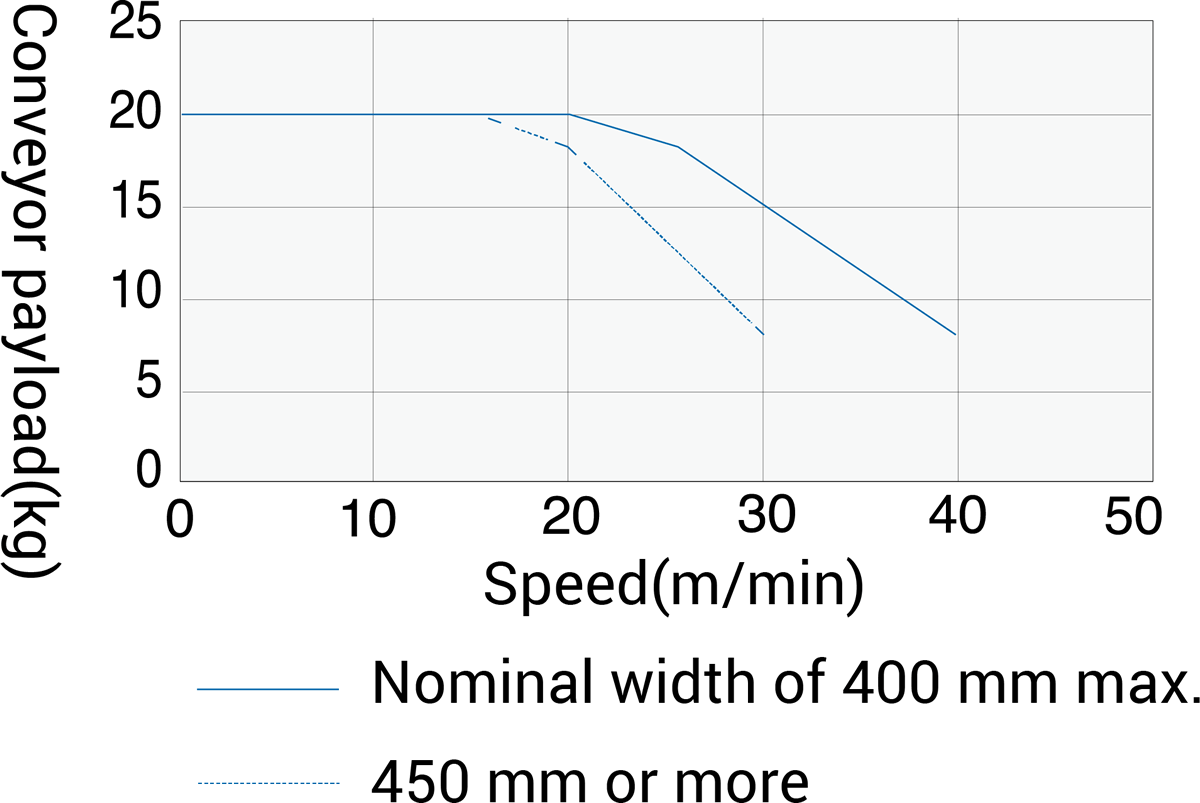

Conveyor payload table

Belt length

Belt length: Product length×2+400 mm

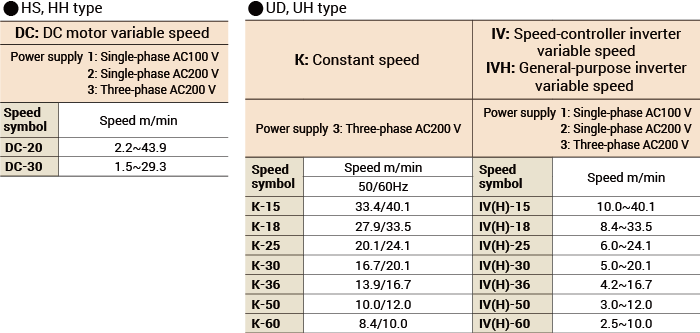

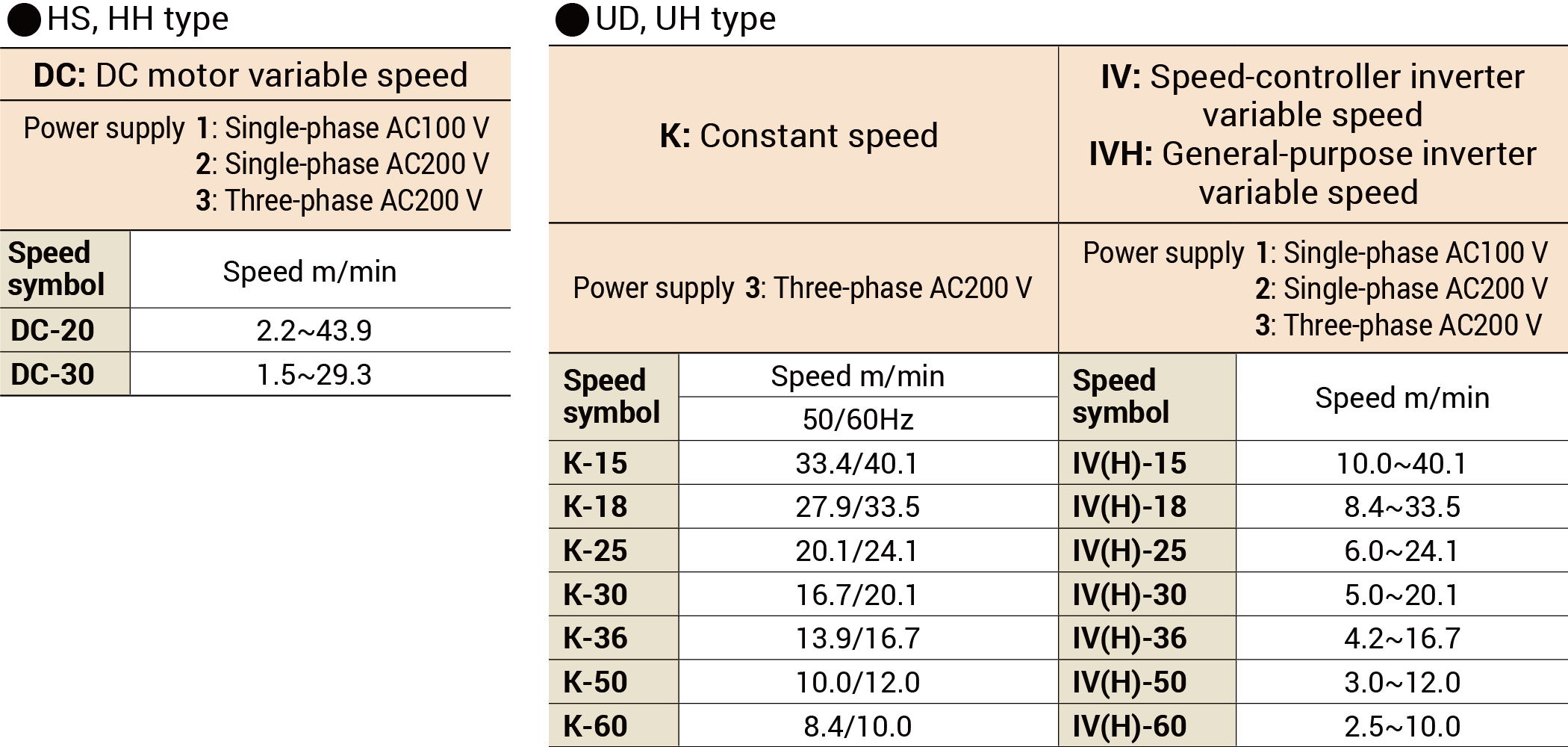

Power supplies and speeds

Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Speeds of DC motor variable speed models may vary by up to 2% more or less than the values shown, depending on the motor characteristics and payload.
(3) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.
