SLS-H

Transported objects placed on the slats are sorted at a
high speed in 2 to up to 5 directions.
Highest sorting capacity is 350pieces/minute.

Products img

Overview

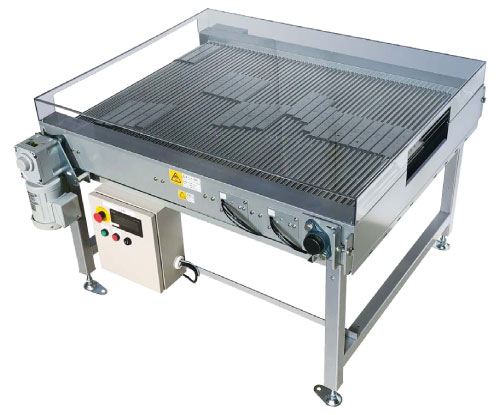

Product appearance

appearance

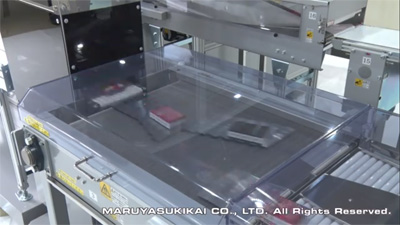

Example
Example

Standard Equipment

Options

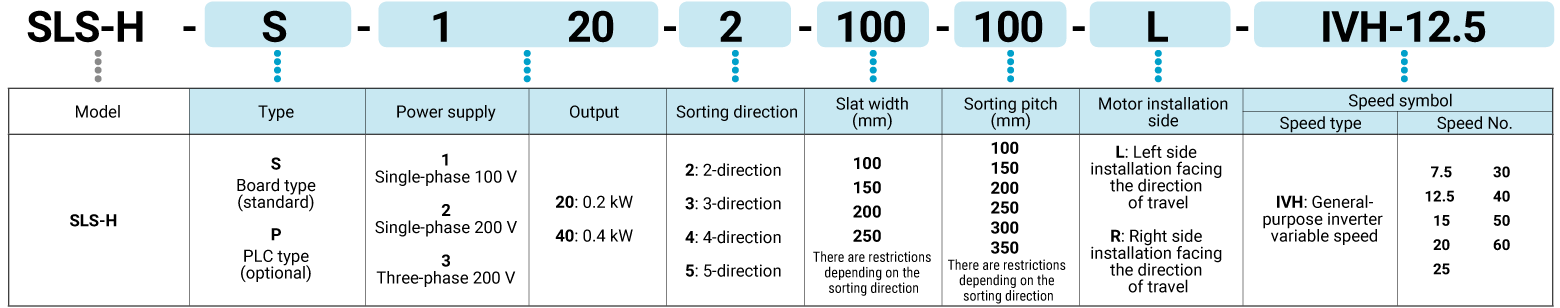

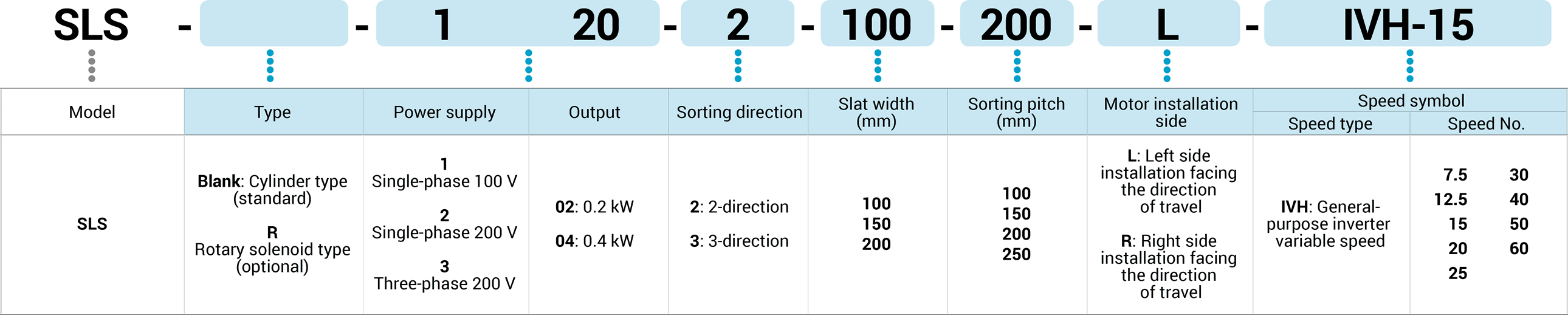

Key to model number designations

Key to model number designations image

Click to enlarge image
Key to model number designations

* Display for symbol explanation. The model indicated may not exist.

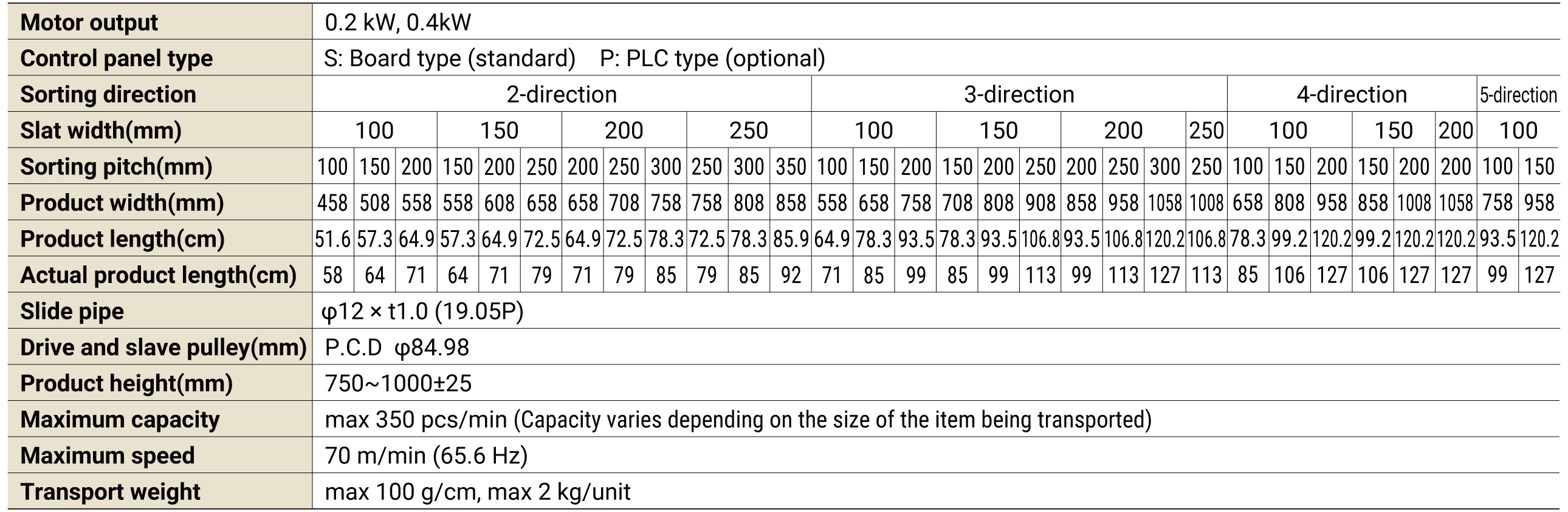

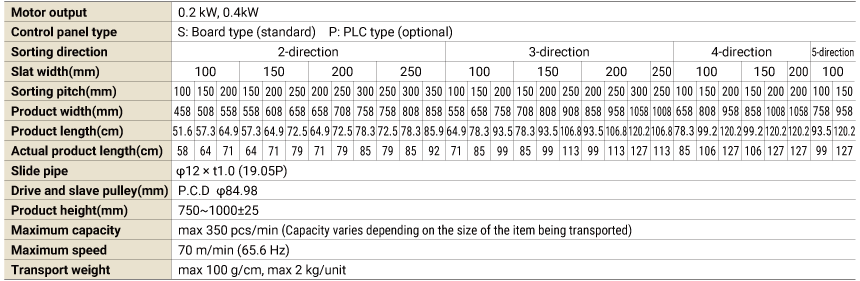

Specifications

Specifications

Click to enlarge image
Specifications

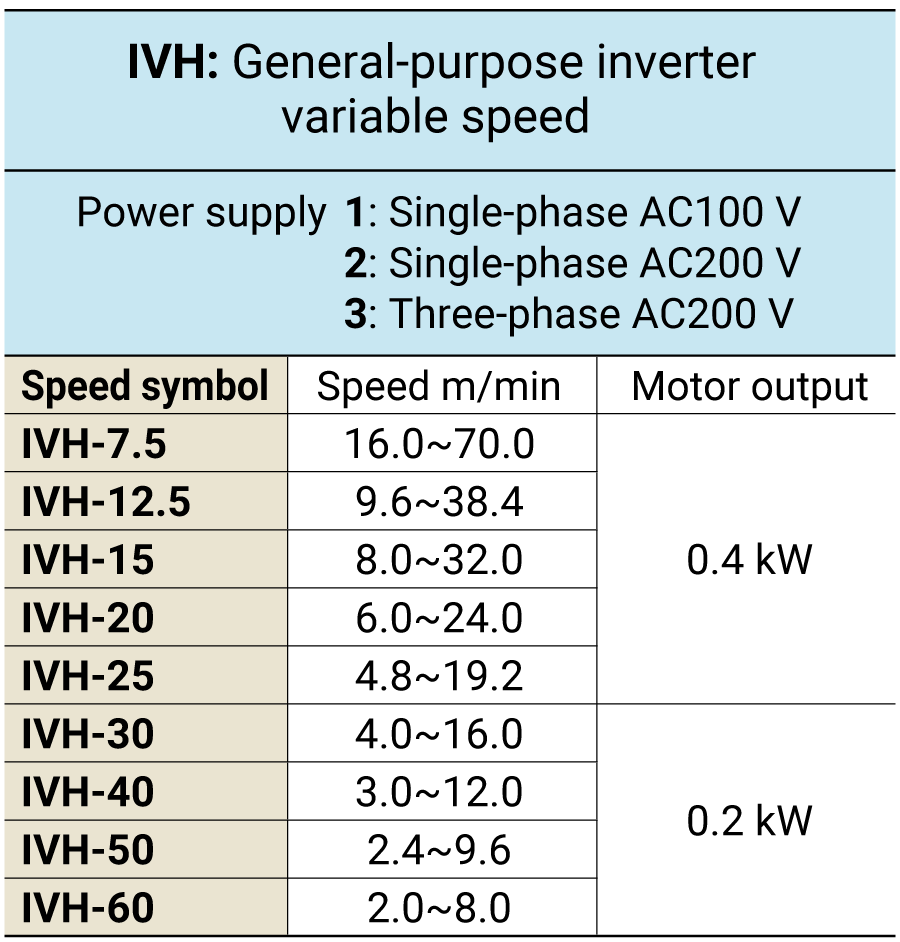

Power supplies and speeds

Power supplies and speeds
Power supplies and speeds

Transport weight

• 200 g per slide pipe (guideline is 100 g/cm)
• Max 2.0 kg/unit (distributed load)

Air supply

• Air pressure above 0.15 MPa for dry air
• Standard pneumatic spares: Filter, regulator
• Air receiving side connection: φ6 coupler

Options

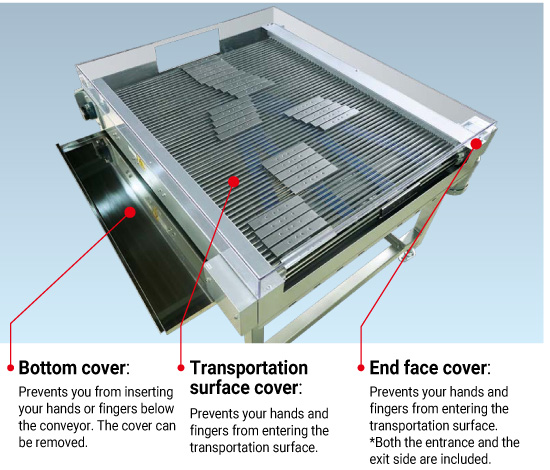

• Entrapment protection cover, transfer roller, Clogging detection sensor

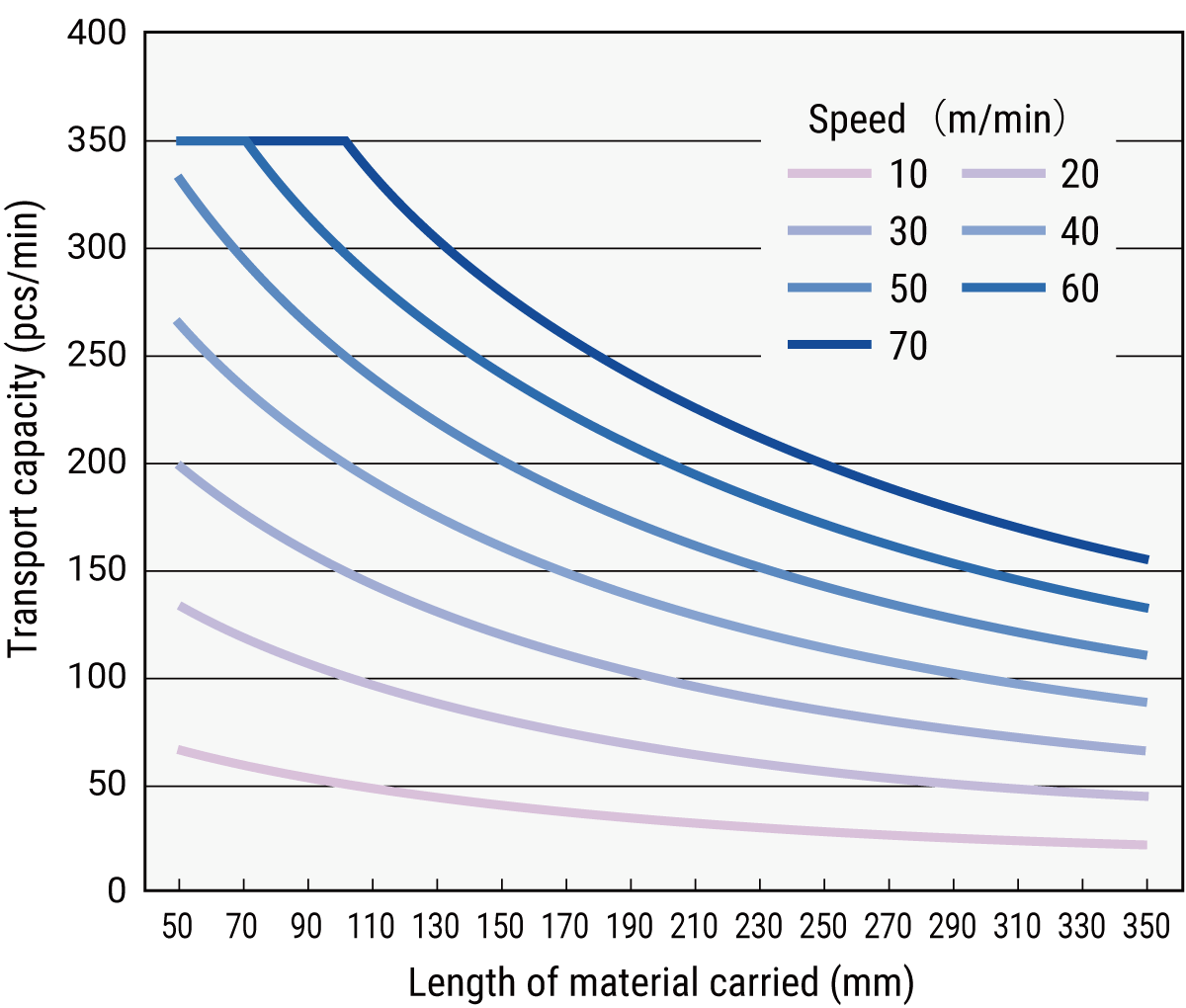

Transport capacity table

Transport capacity table
Transport capacity table

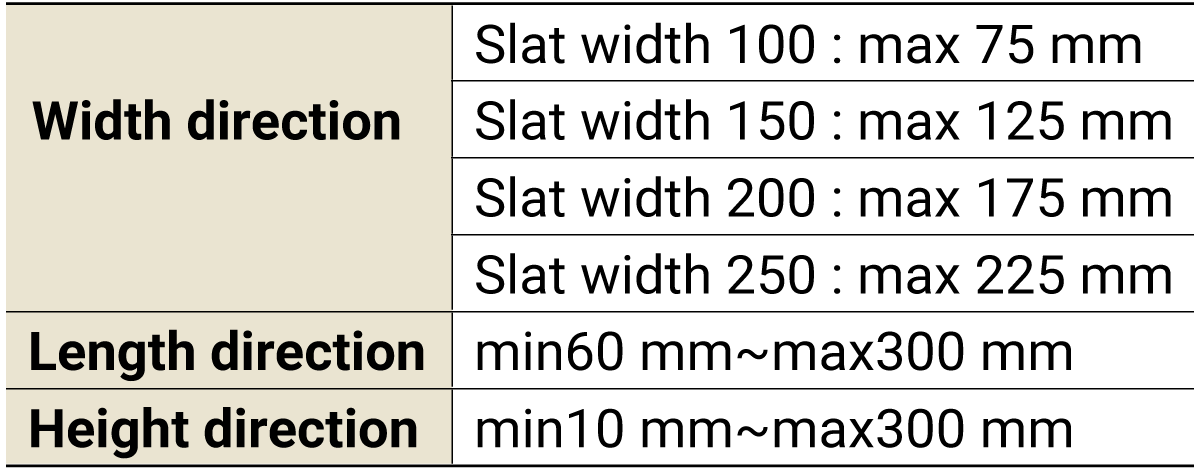

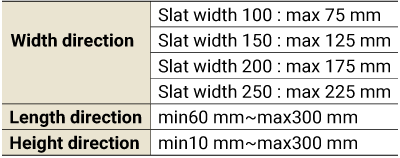

Size of transported objects

Size of transported objects
Size of transported objects

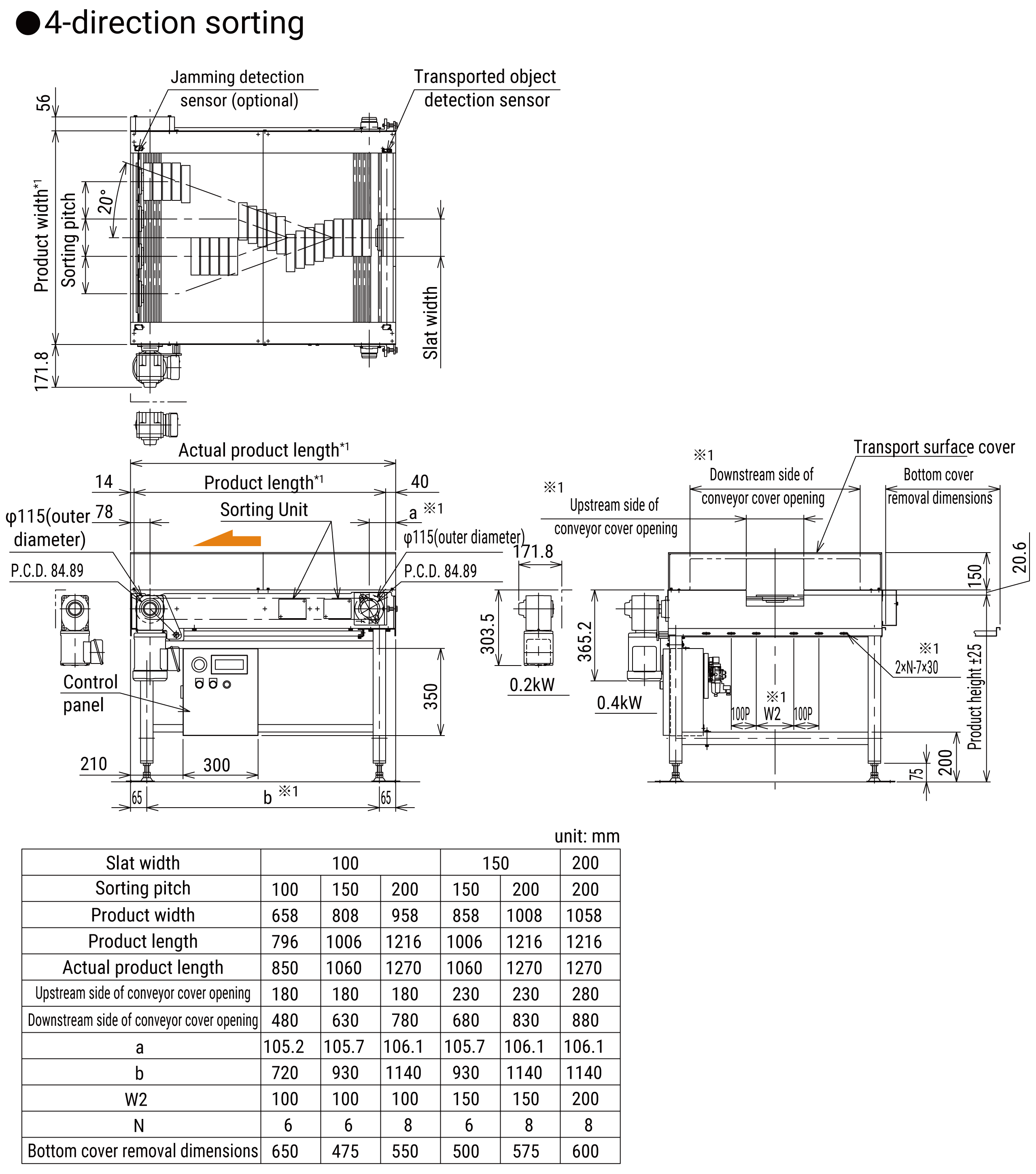

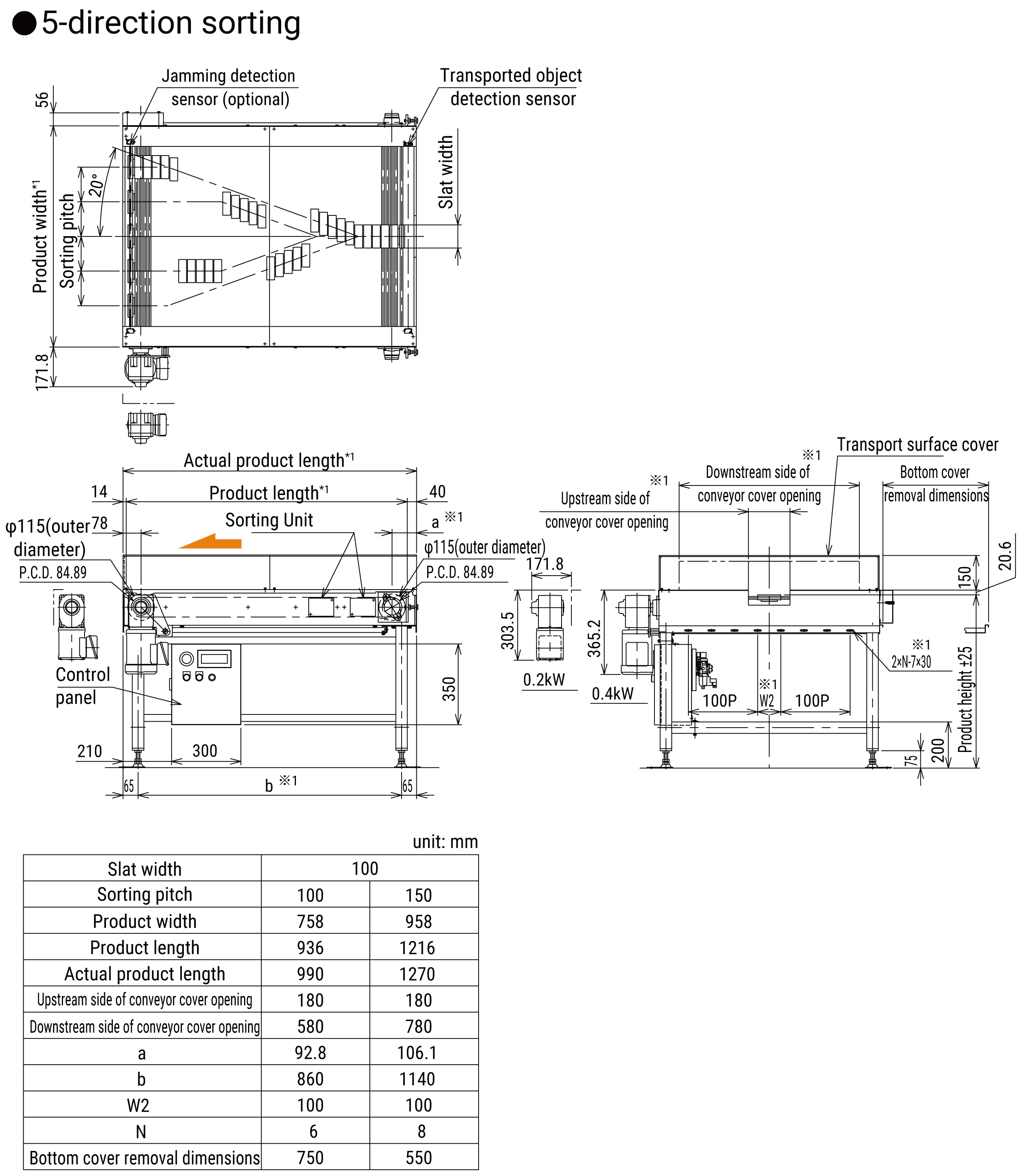

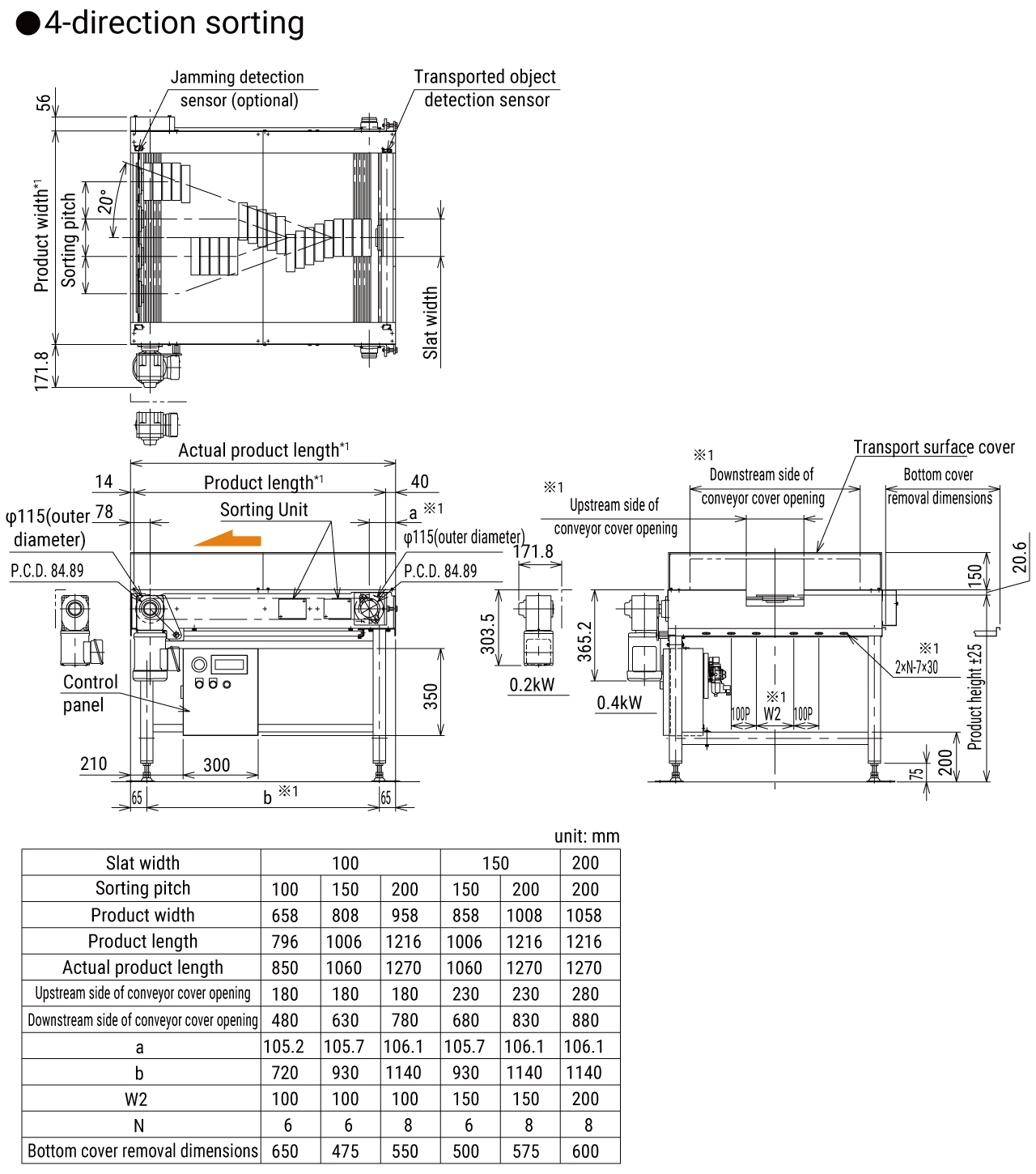

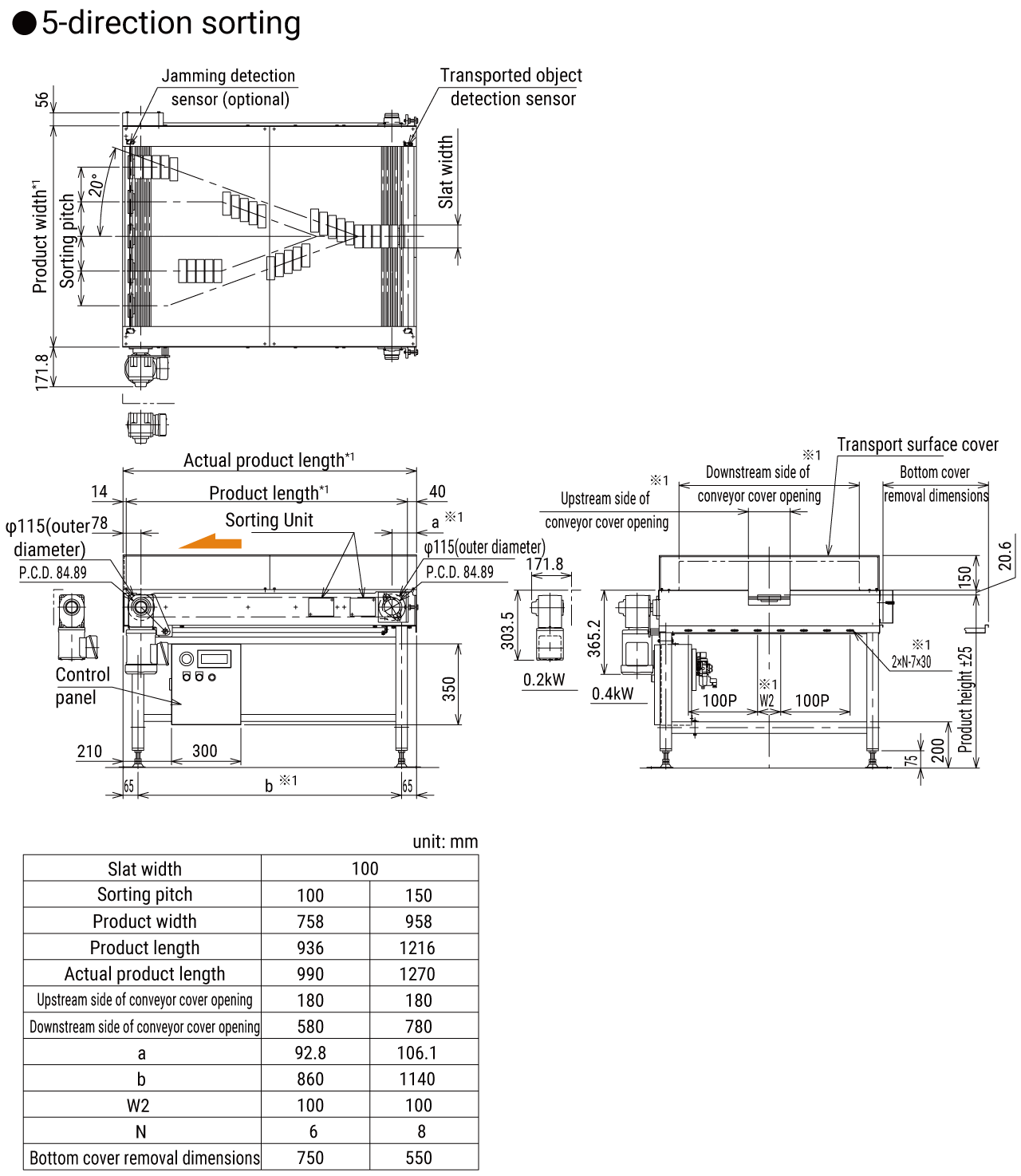

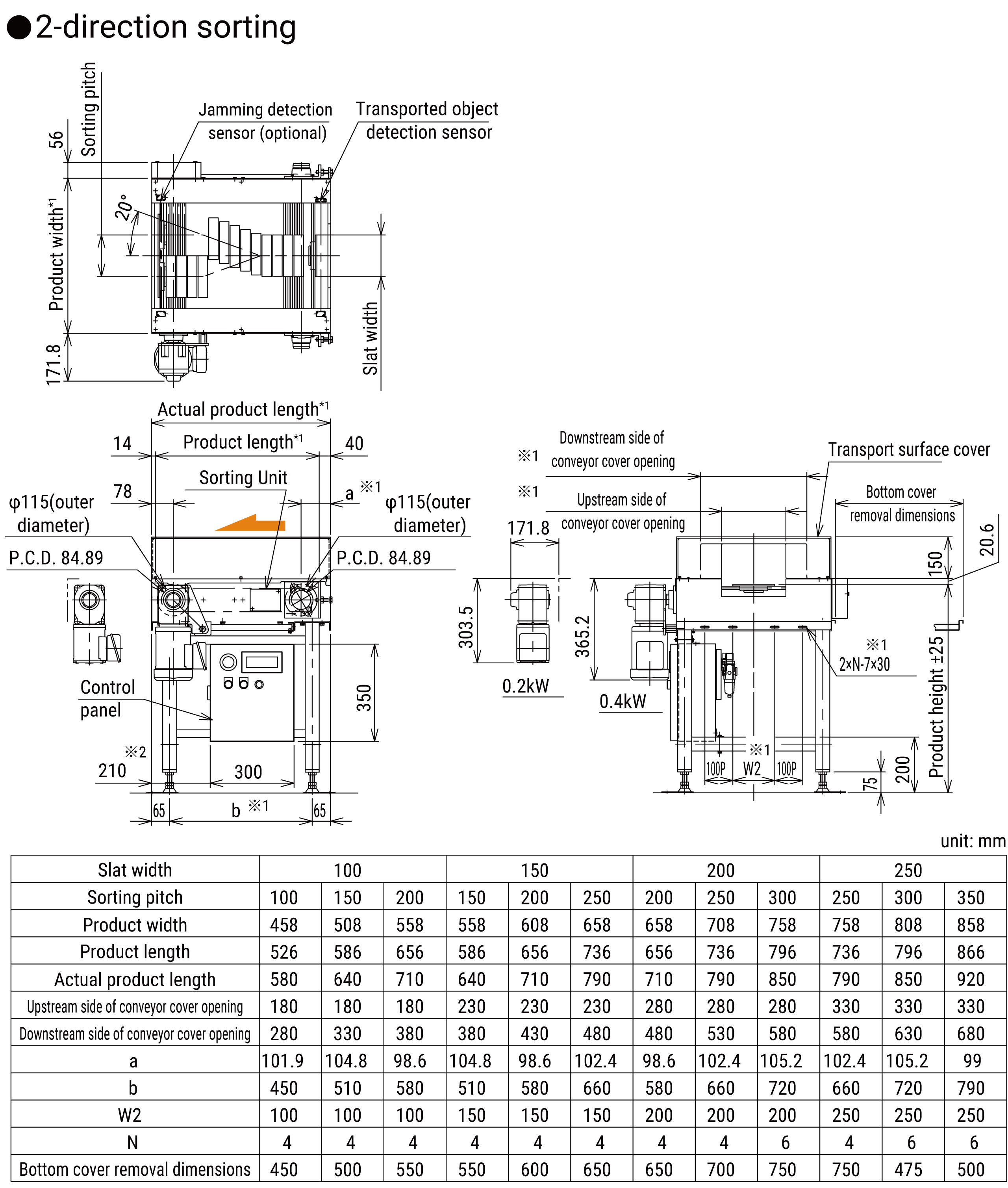

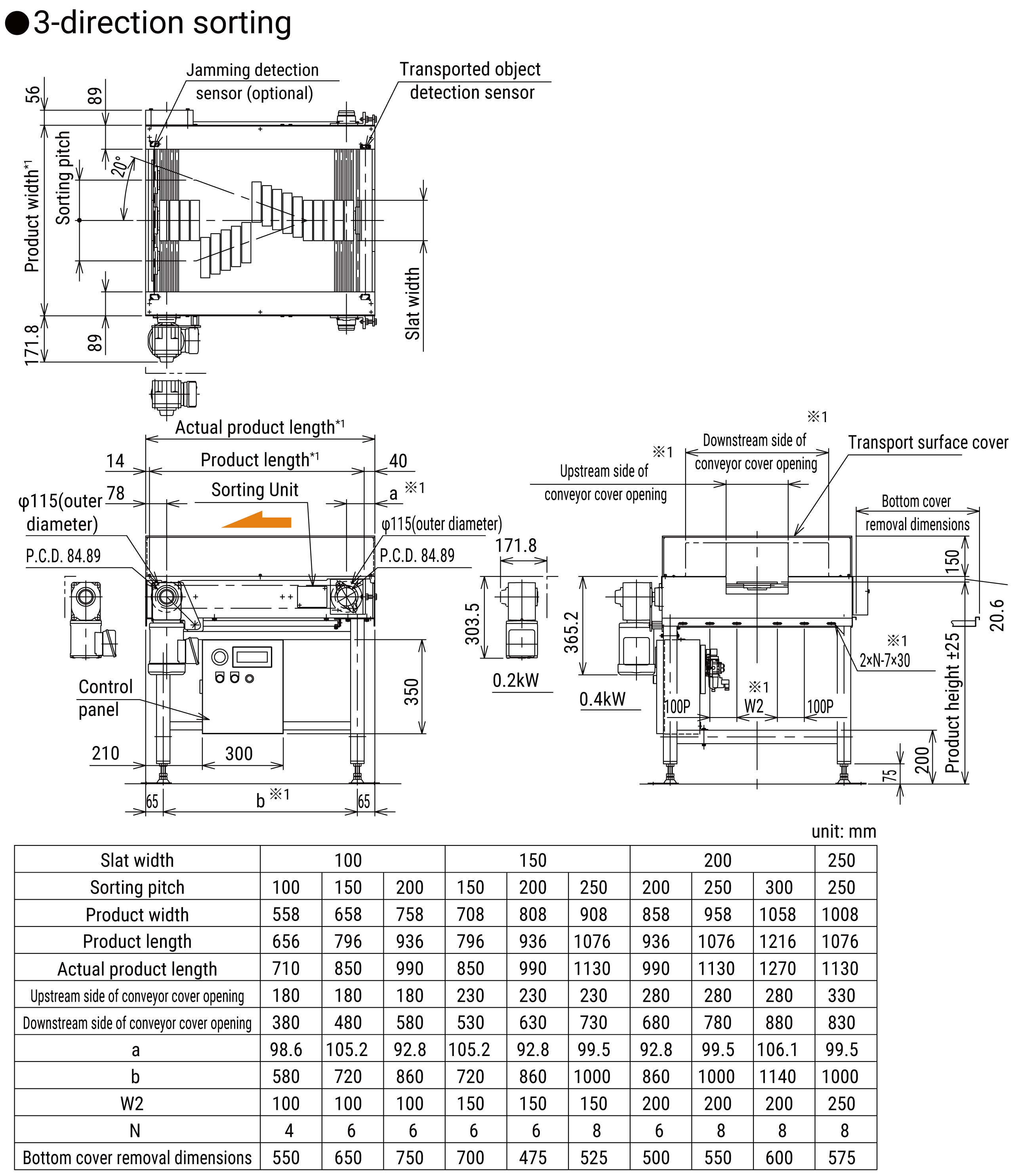

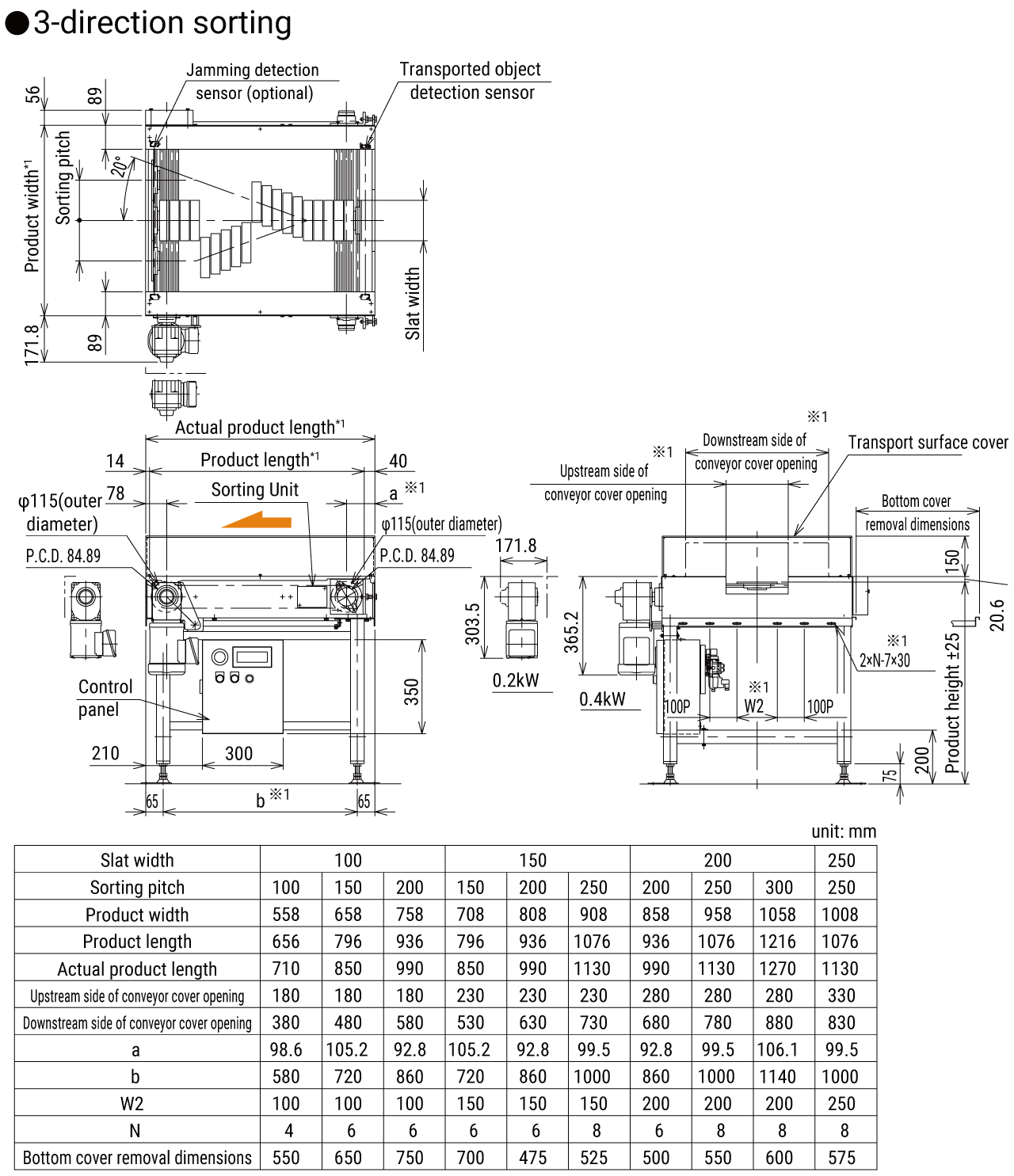

Dimensions

Dimensions
Dimensions
Dimensions
Dimensions
Dimensions
Dimensions
Dimensions
Dimensions
