SGA
Transporting thin objects which push the transported objects flowing down randomly to one side so as to align them.
Overview

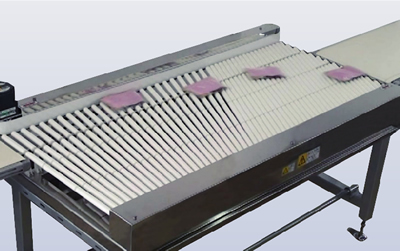

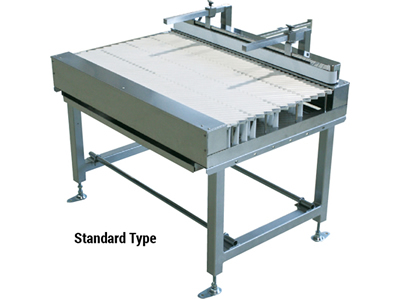

Product appearance

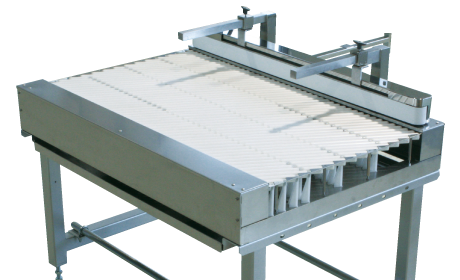

Conveyors for transporting thin objects
Our conveyors for transporting thin objects have a structure in which the roller surface and belt are arranged in an offset position to ensure that low objects do not enter the gaps between the roller surface and the bottom of the belt.

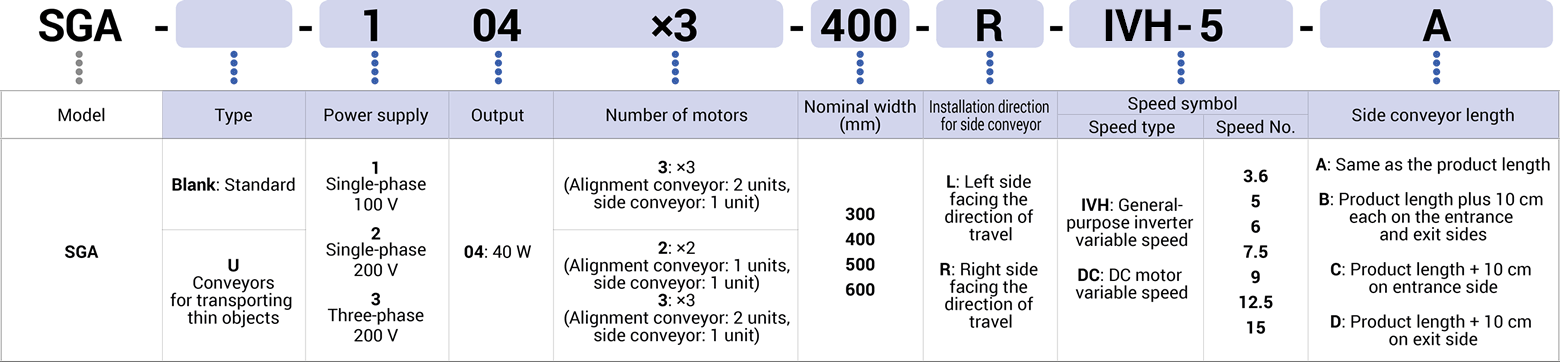

Key to model number designations

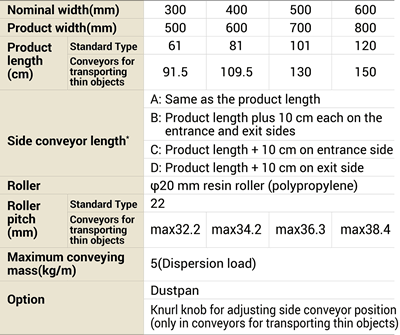

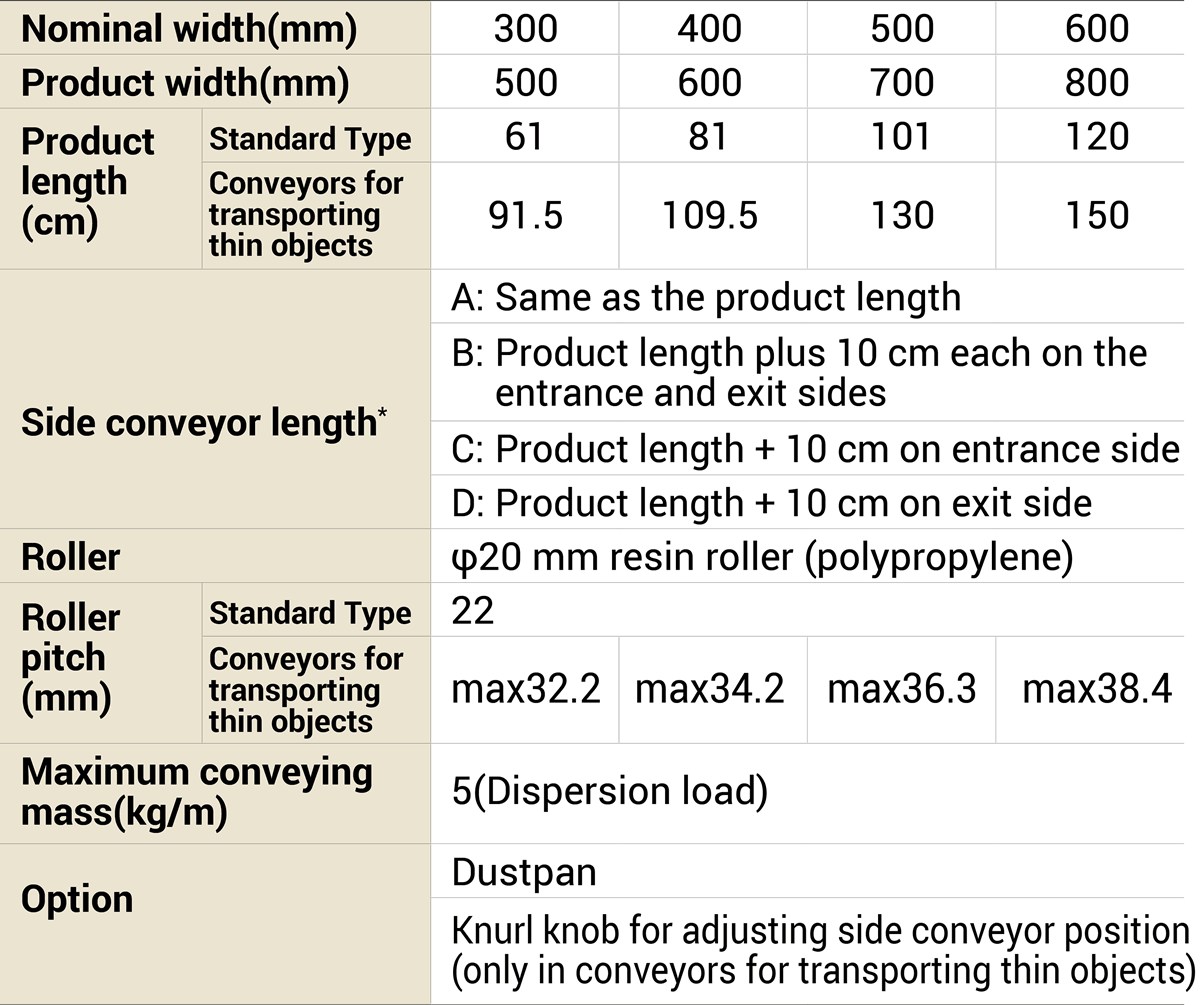

Specifications
* If the conveyor for transporting thin objects has a nominal width of 600 mm, the length of the side conveyor will be A only.

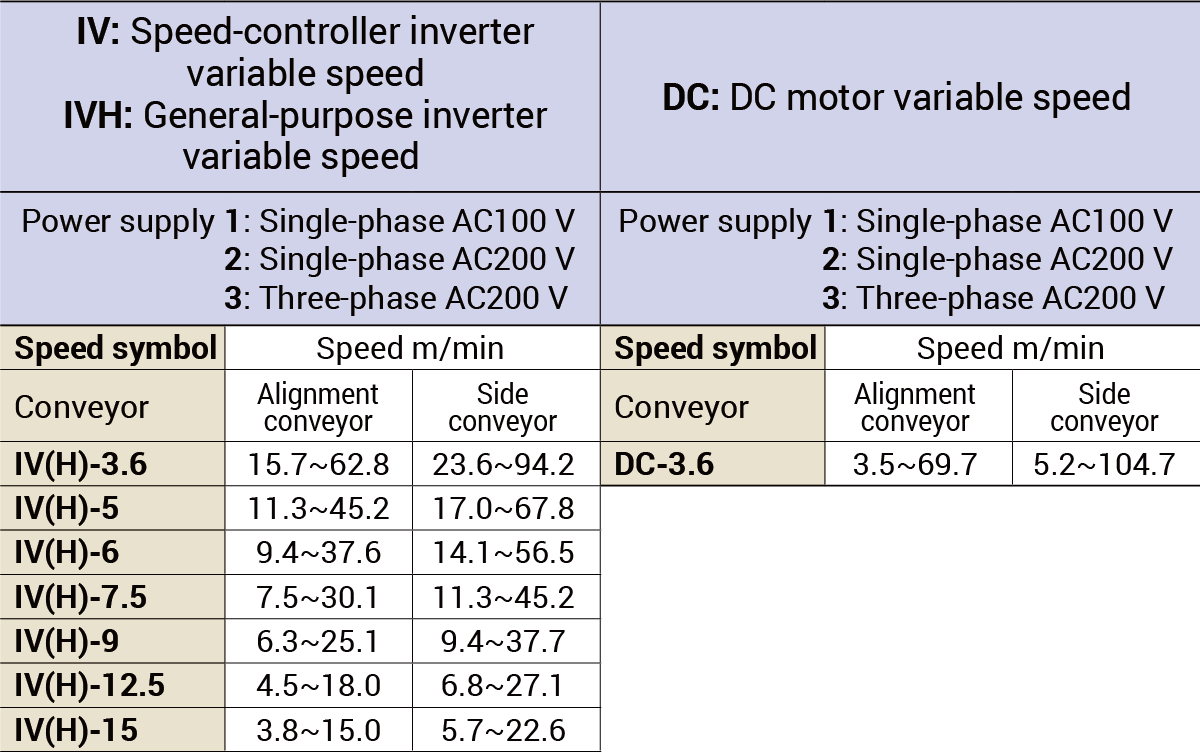

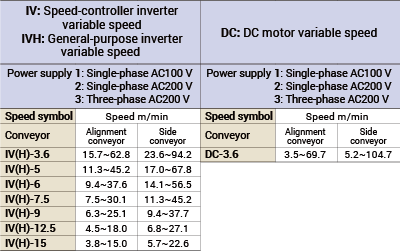

Power supplies and speeds
Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Speeds of DC motor variable speed models may vary by up to 0.6% more or less than the values shown, depending on the motor characteristics and payload.
(3) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.

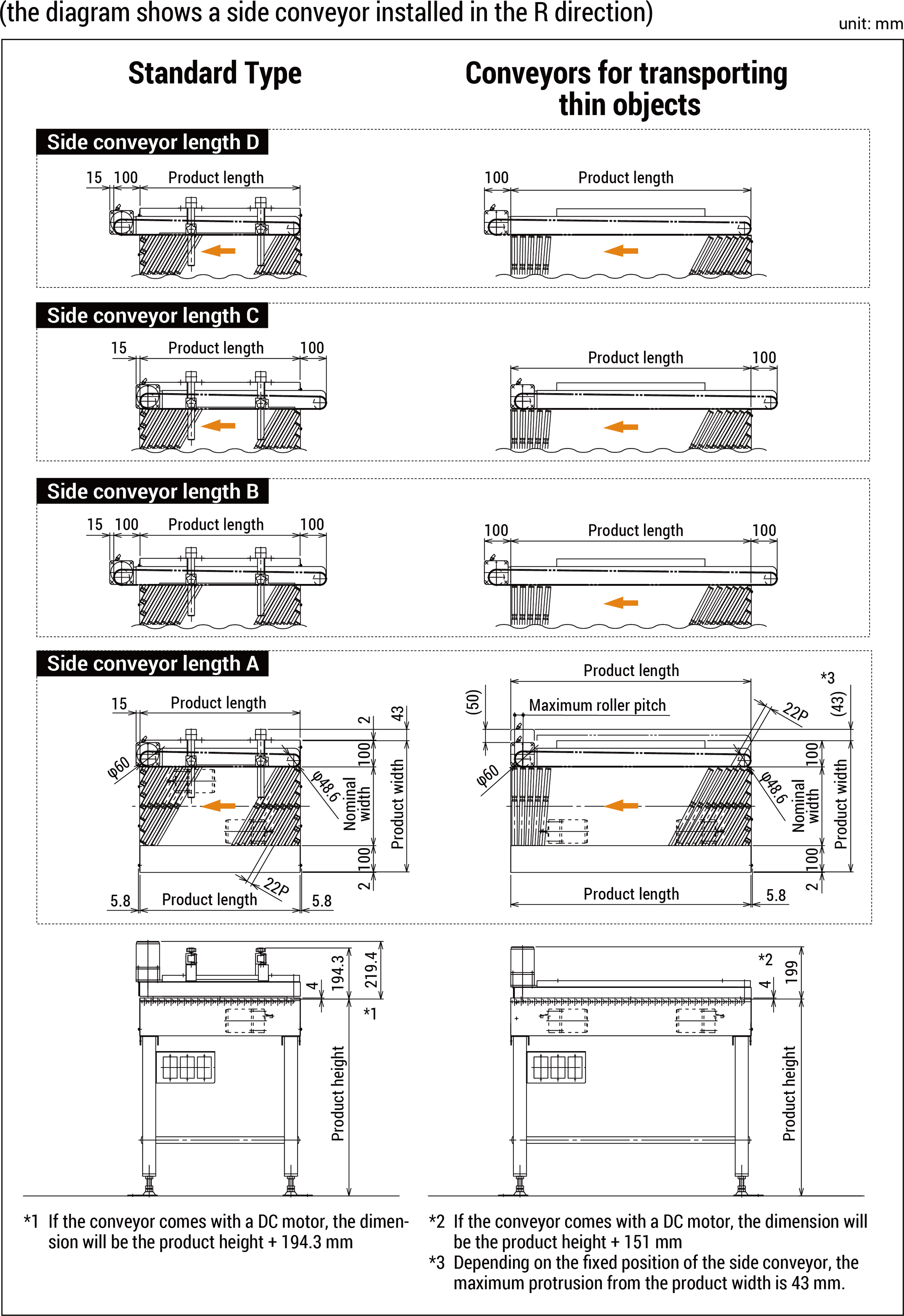

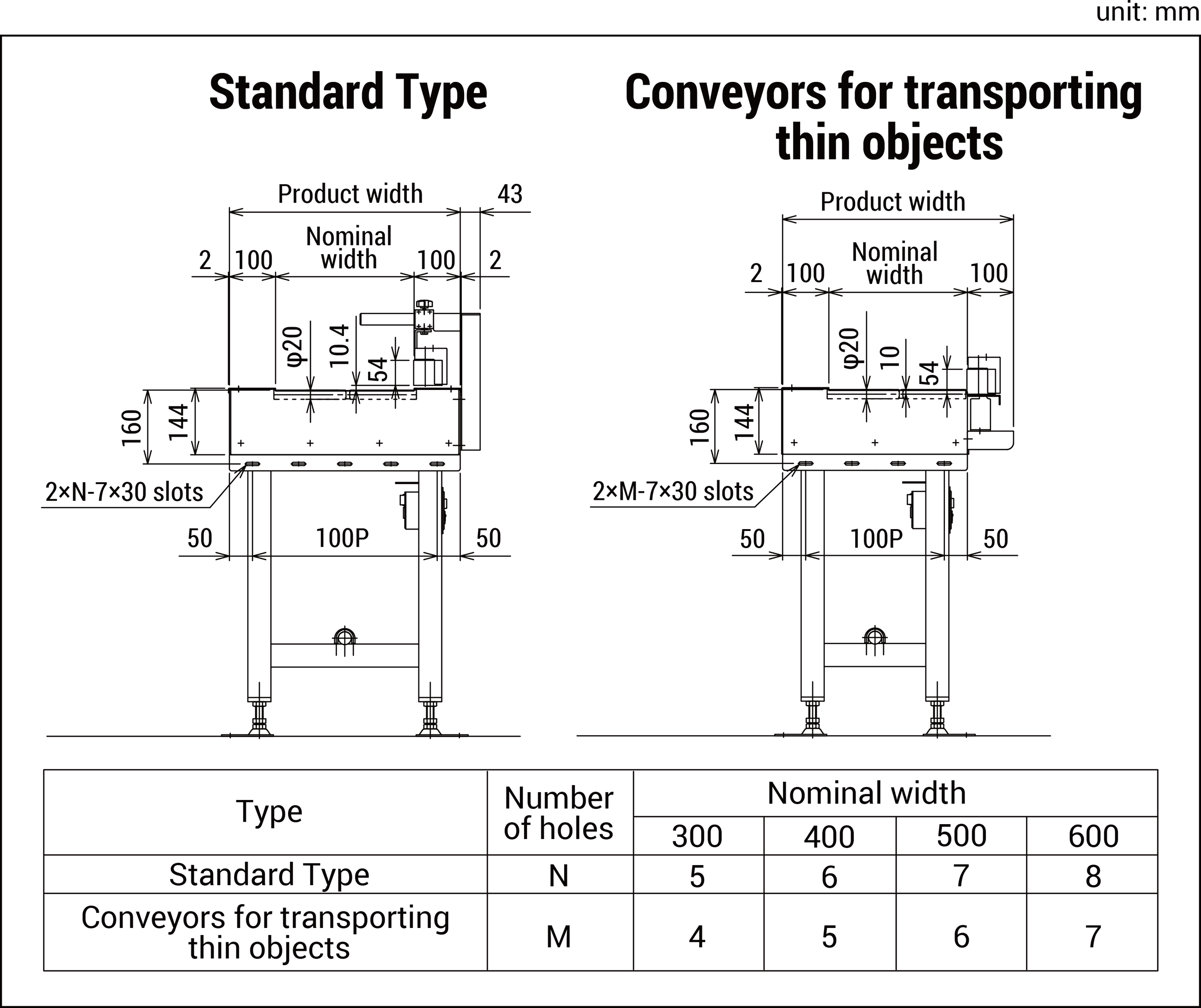

Dimensions
