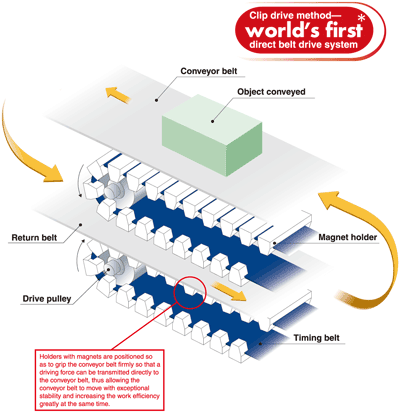

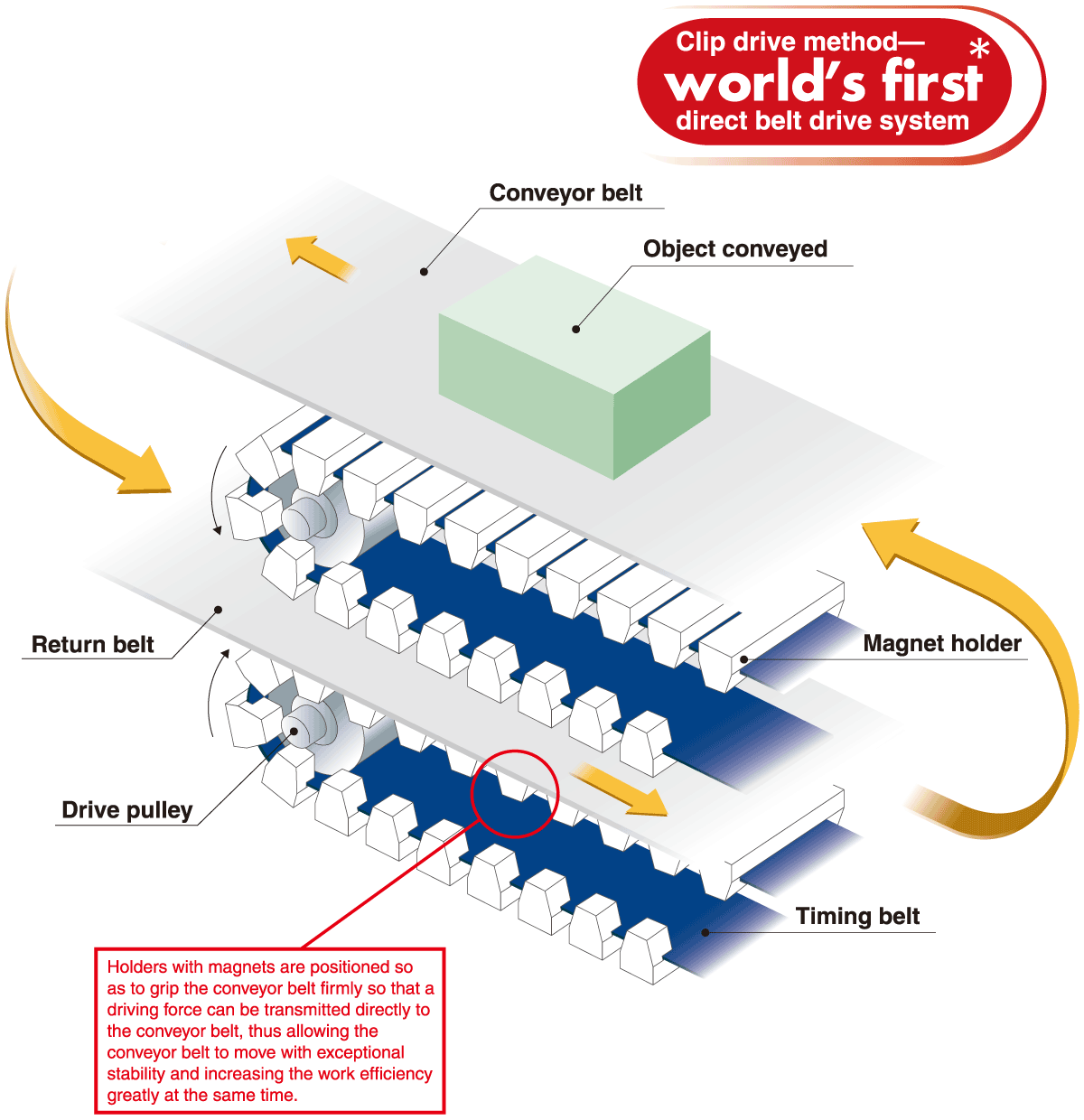

A curved conveyor with a new drive system that turns the belt using magnets on either side of it.

Products img

Overview

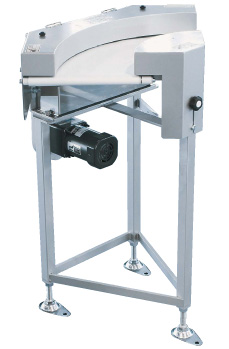

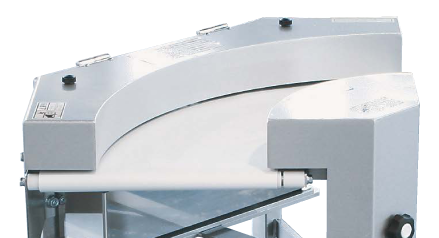

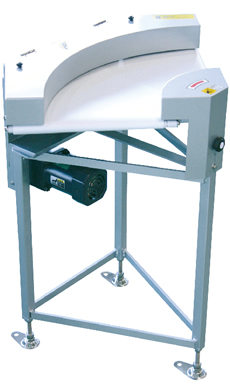

Product appearance

Product appearance

CAD drawings

Download CAD drawingsGBC

Variation

Curve conveyor

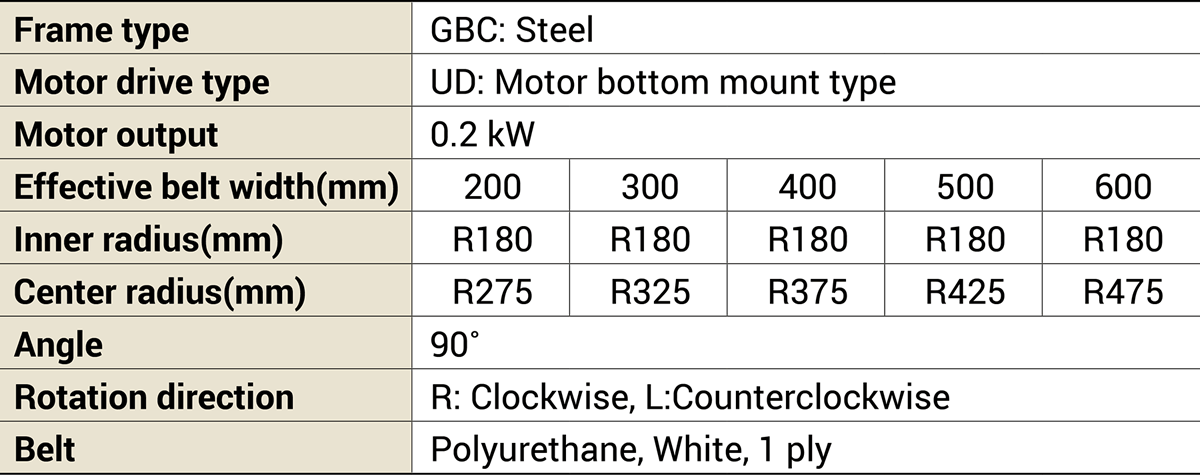

GBC Wide type

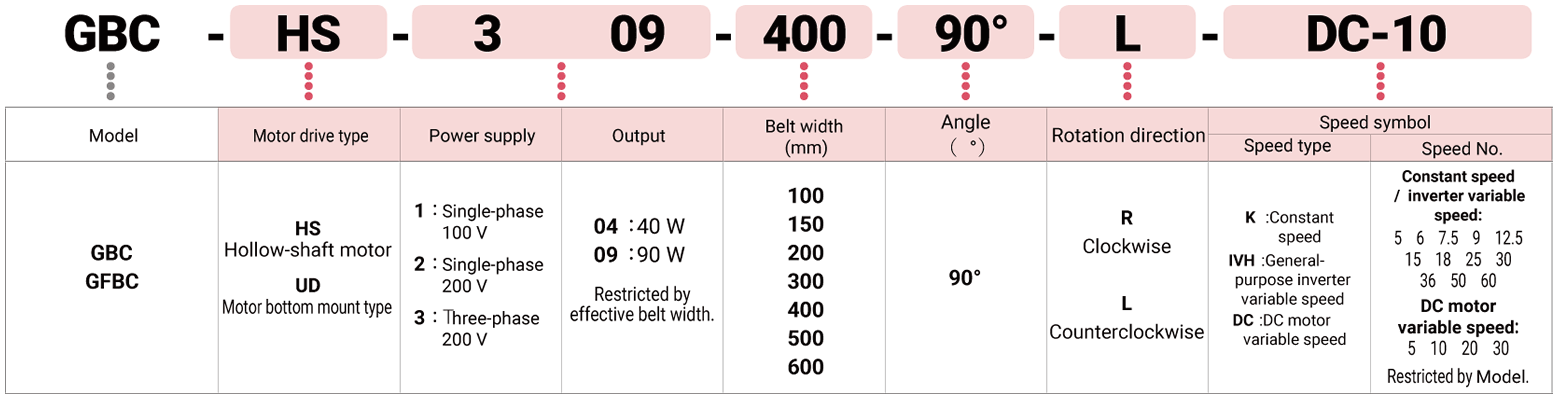

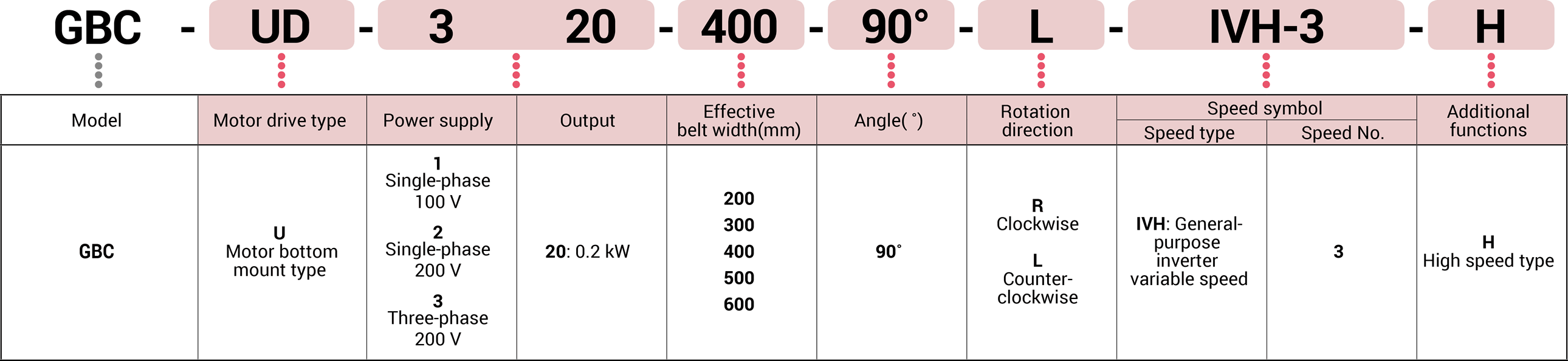

Key to model number designations

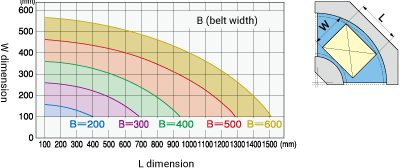

Belt width choices

Belt width choices
Belt width choices

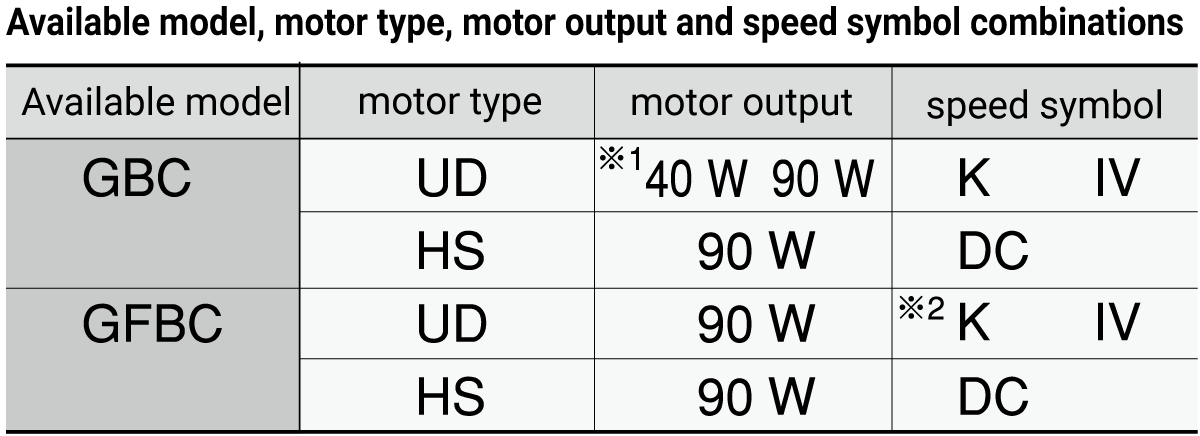

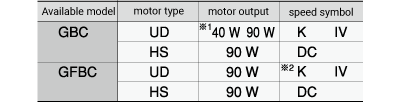

Available model, motor type, motor output and speed symbol combinations

Available model, motor type, motor output and speed symbol combinations
Available model, motor type, motor output and speed symbol combinations

Note:
(1) *1: 40 W for belt width of 100 or 150 mm.
(2) *2: There are no constant-speed models for single-phase 100 V power supply.

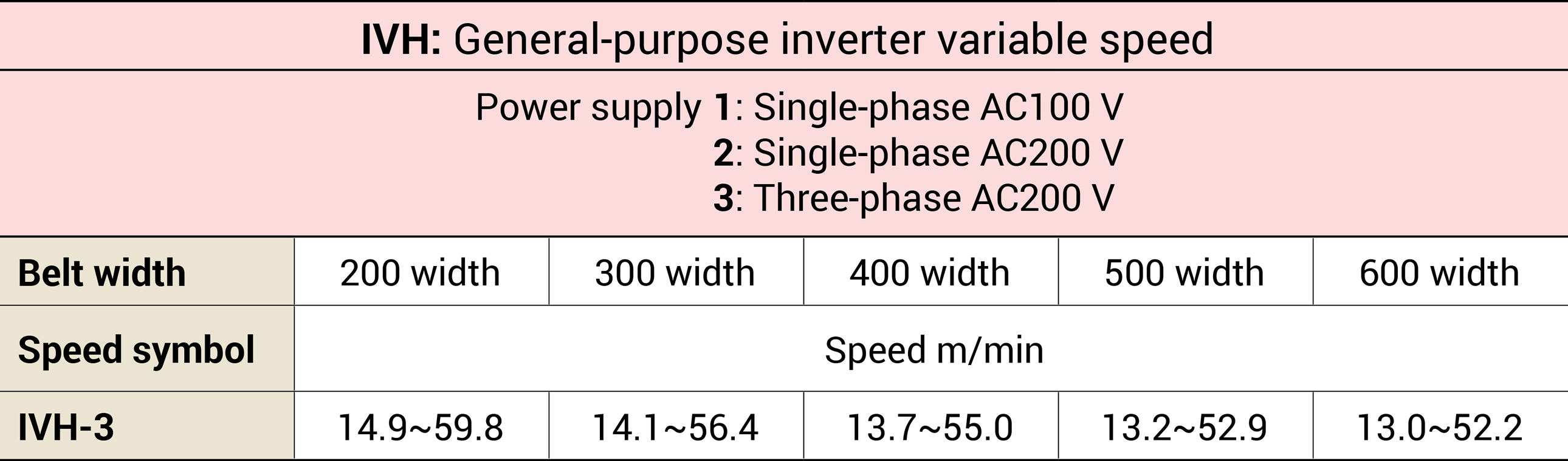

Power supplies and speeds (The speeds shown are the values at the belt center.)

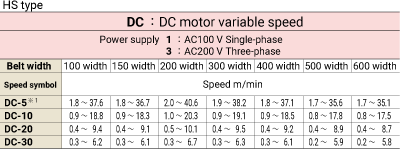

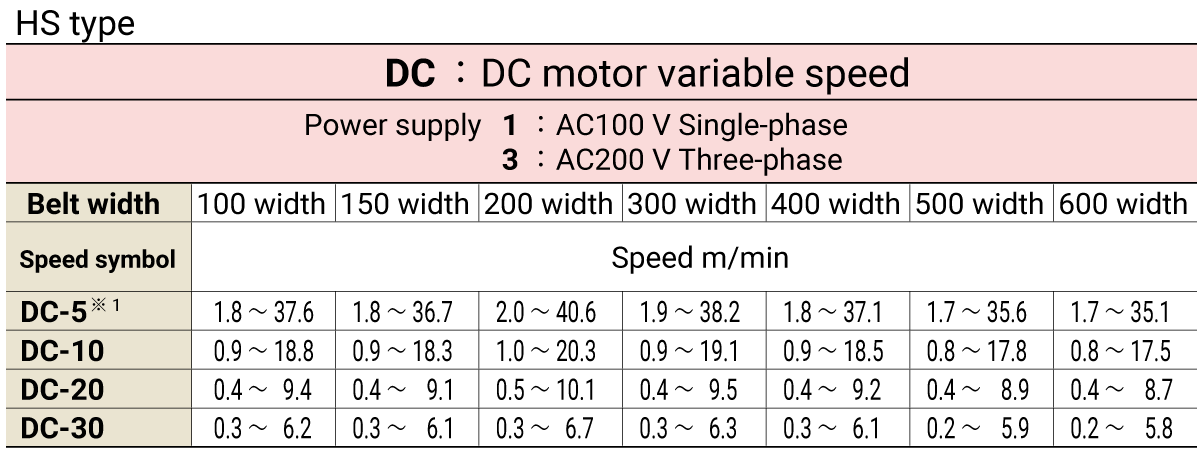

HS type

Note:
(1) *1: DC-5 is not available for GFBC models.
(2) Speeds of DC motor variable speed models may vary by up to -2% more or less than the values shown, depending on the motor characteristics and payload
(3) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.

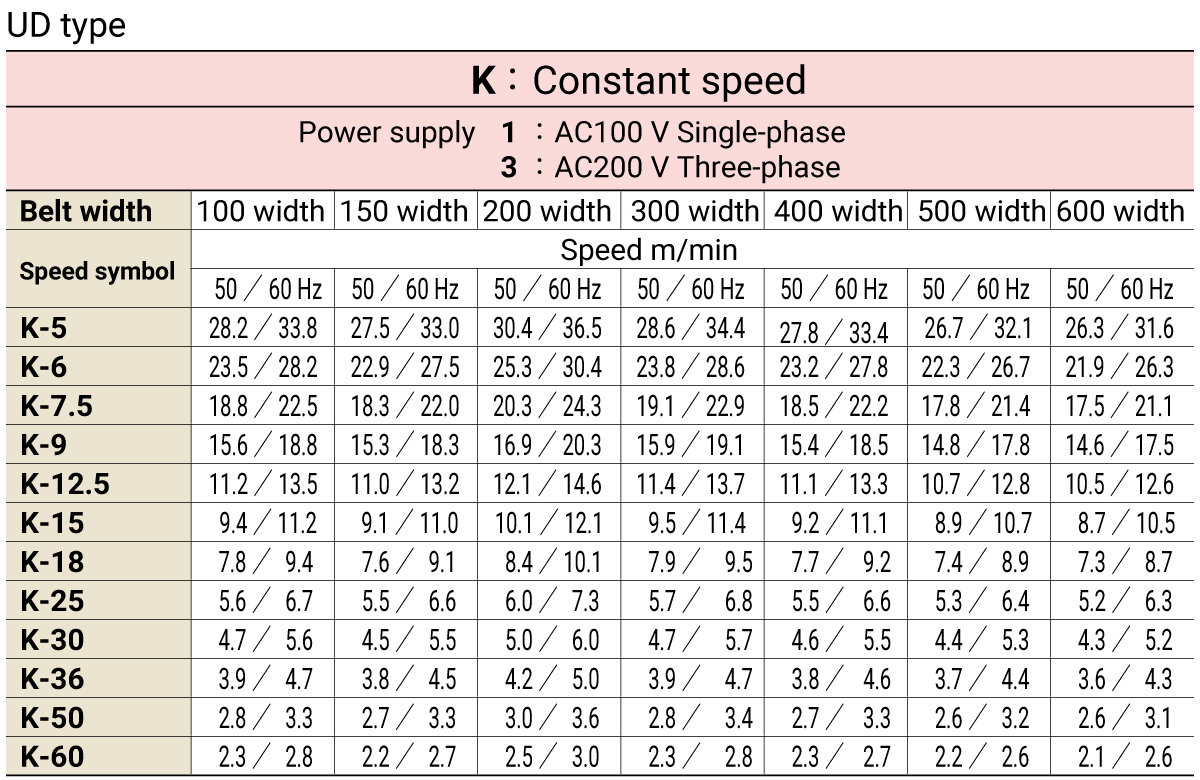

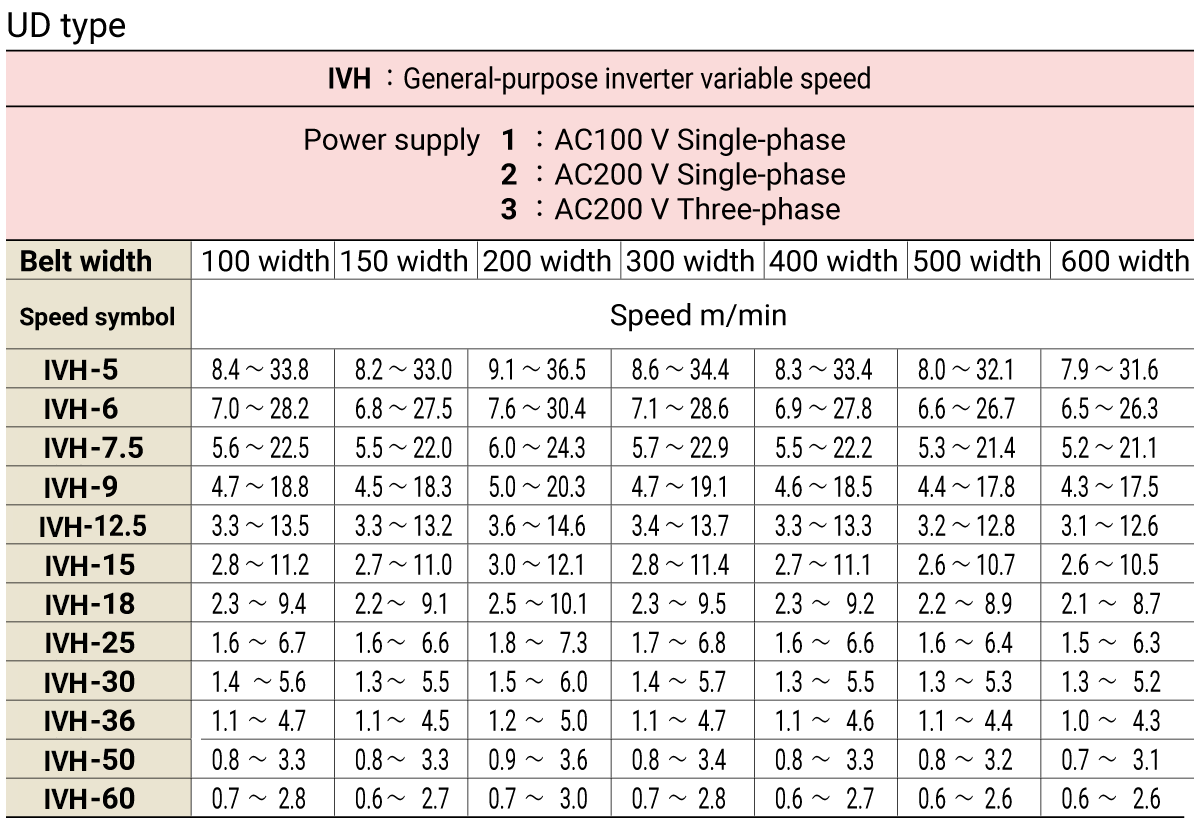

UD type img_01

Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Only GBC belt widths of 100 or 150 mm are available for the 40 W UD type.
(3) Only GBC models are available as slow-speed UD-type models with single-phase 100 VAC power supply.

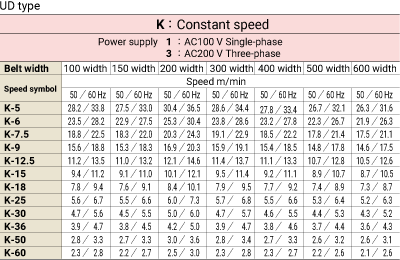

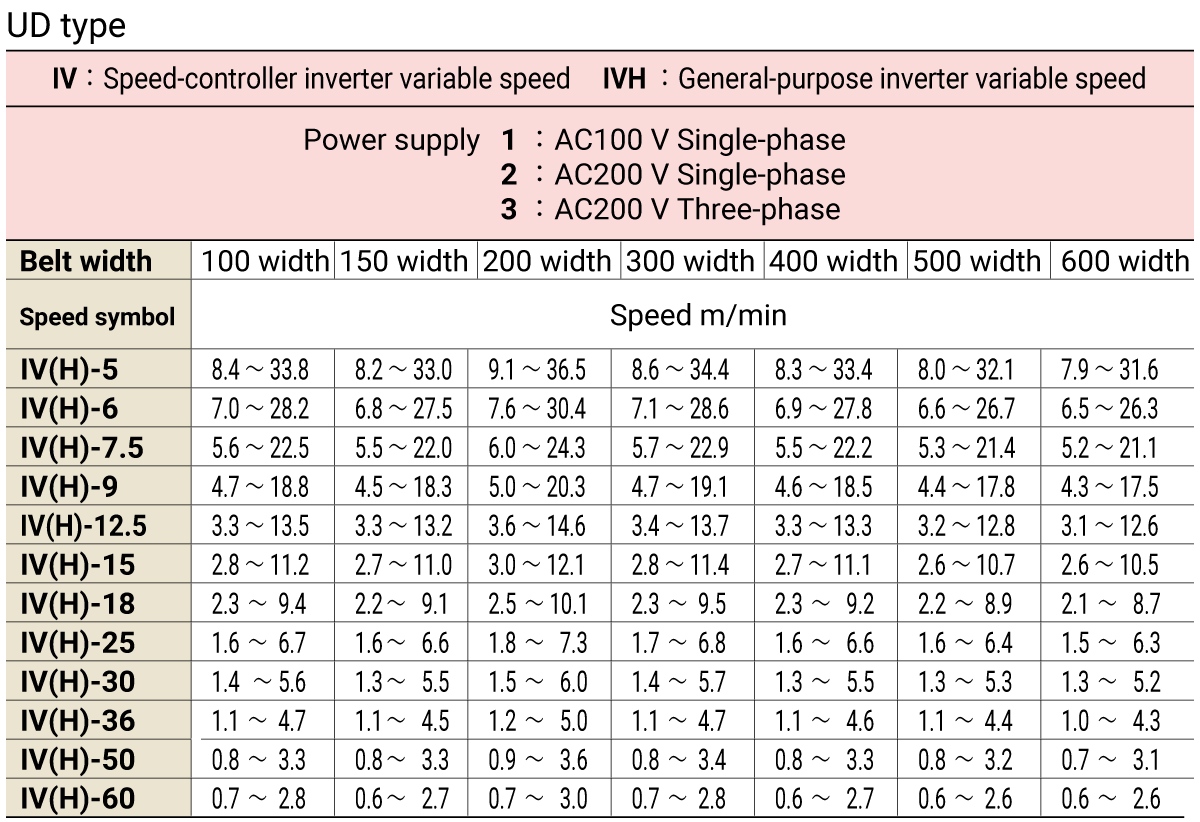

UD type img_02

Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.
(3) Only GBC belt widths of 100 or 150 mm are available for the 40 W UD type.

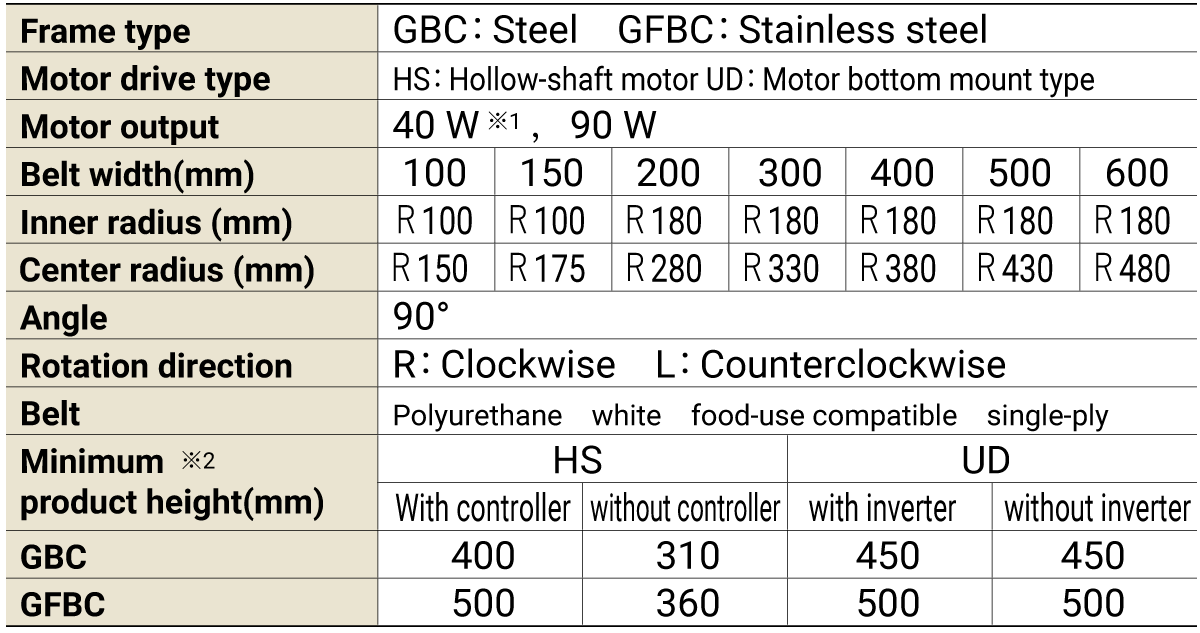

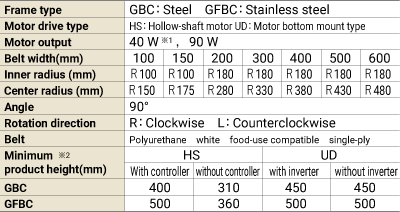

Specifications

Specifications
Specifications

Note:
(1) 40 W models marked by an asterisk (*) are only available as GBC UD-type models with a belt width of 100 or 150 mm.
(2) For "With/without controller" and "With/without inverter" specifications marked by a double asterisk (**), the "with" specification means the controller or inverter is mounted on the product legs. The "without" specification means the controller or inverter is not mounted on the product legs.

Dimensions

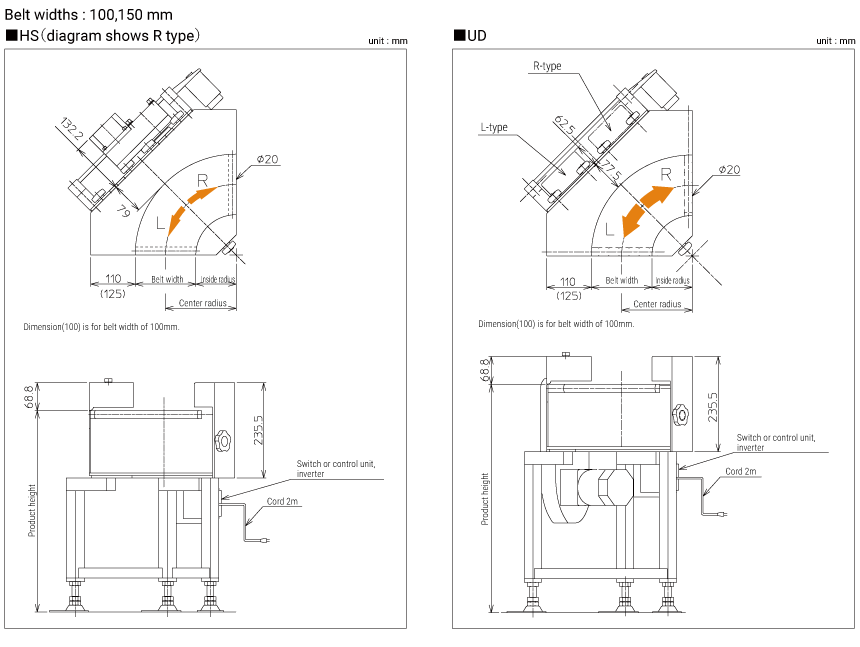

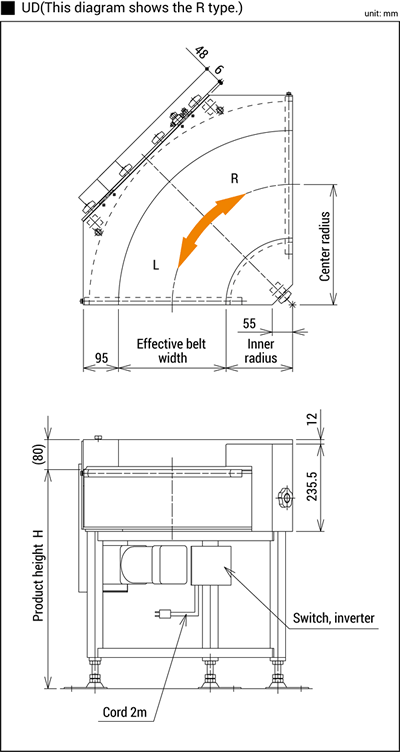

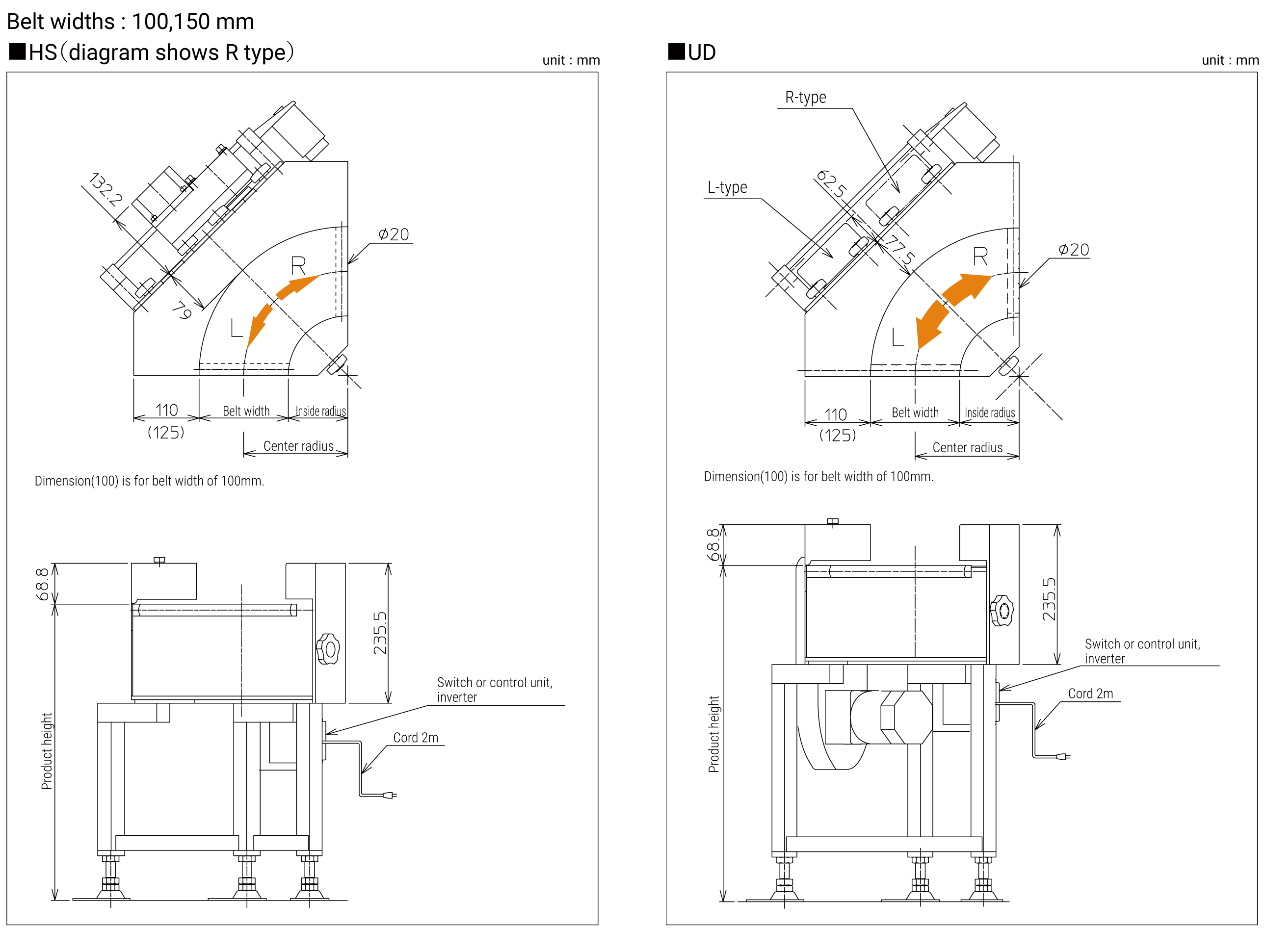

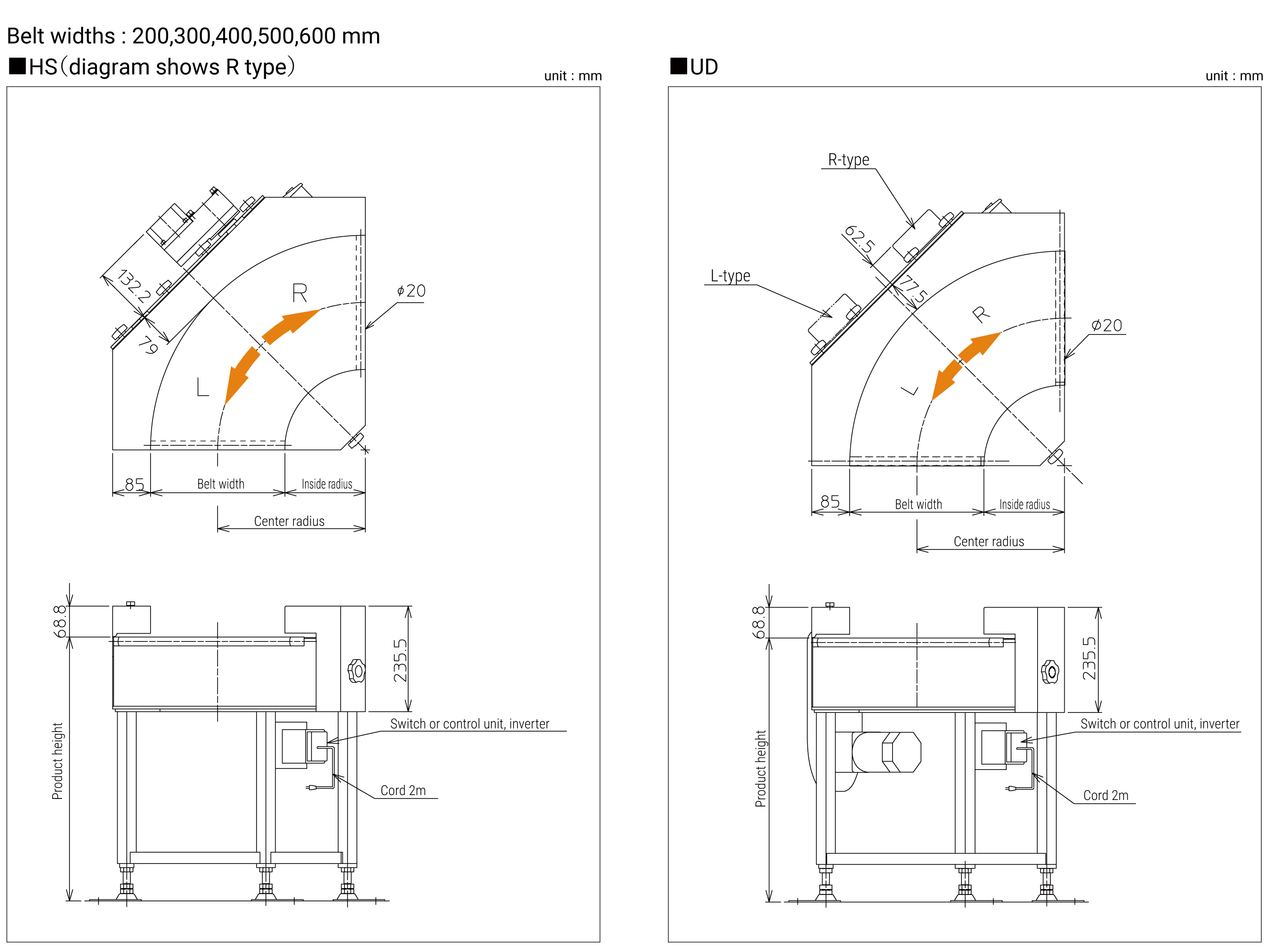

Dimensions img_01
Dimensions img_01

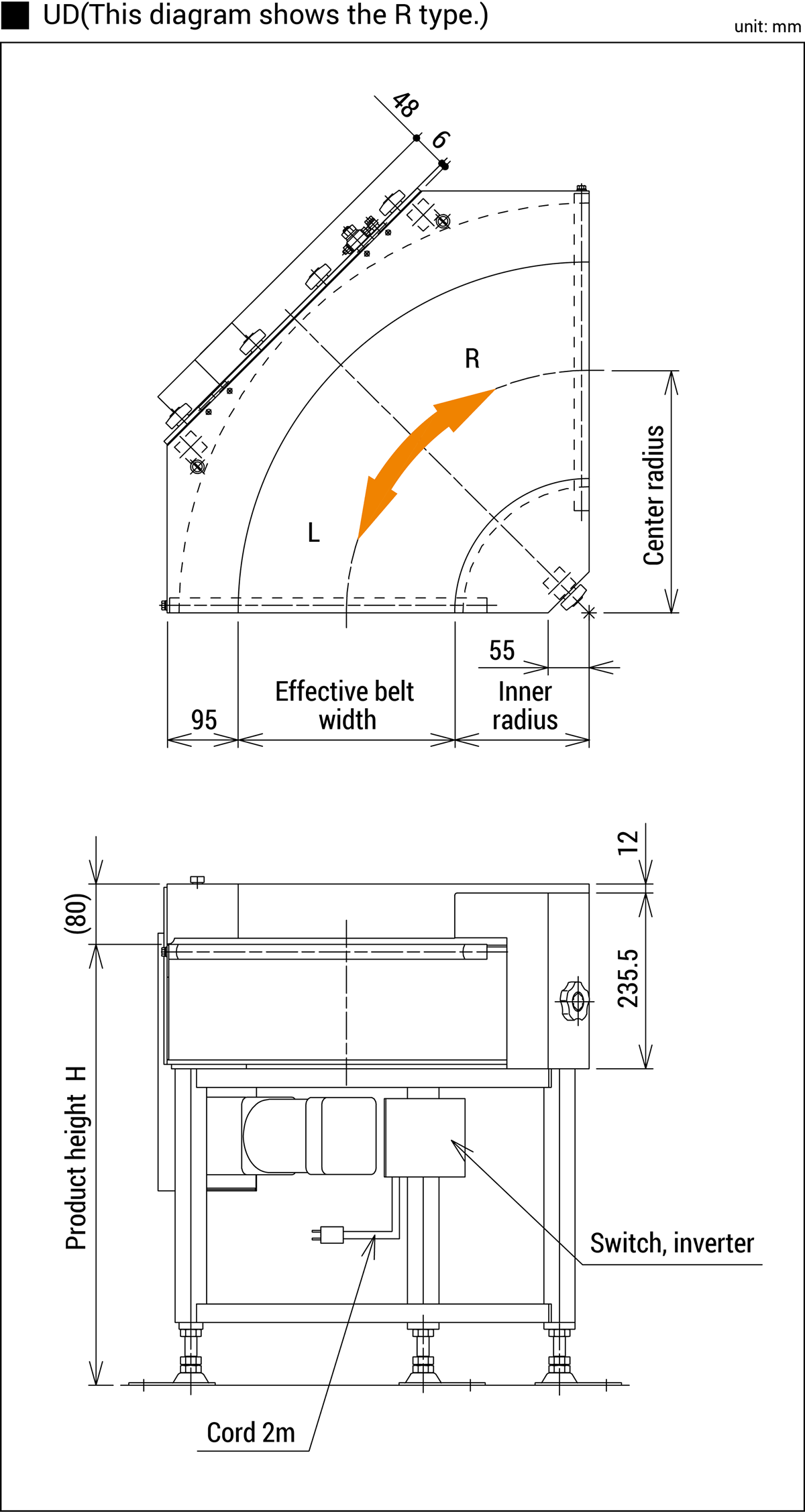

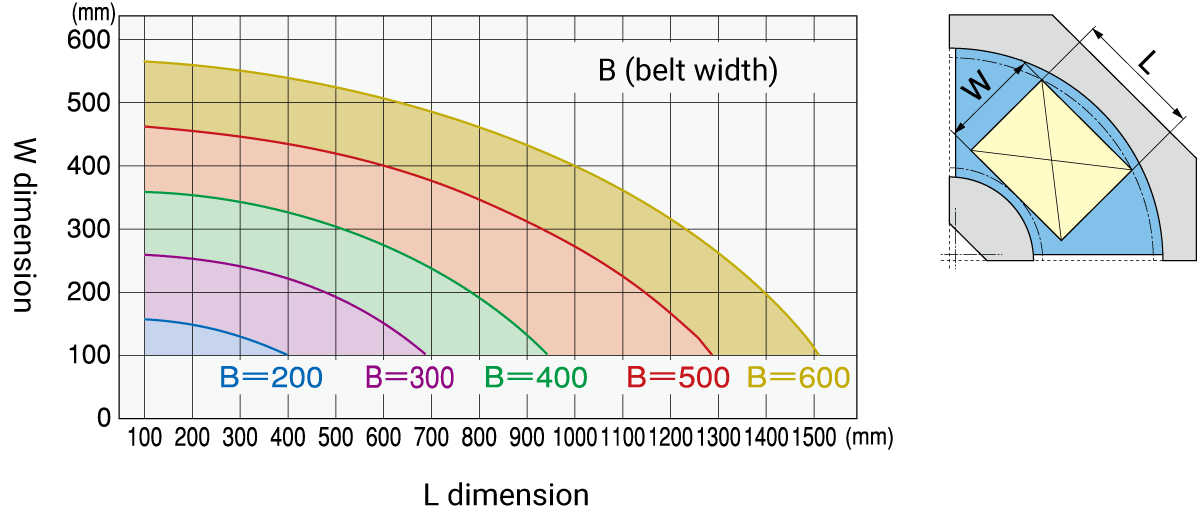

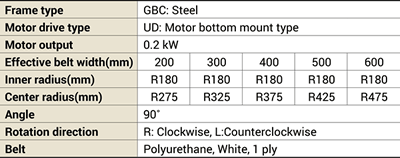

Dimensions img_02
Dimensions img_02
