MMX224

A high-quality model for high-speed, around-the-clock operation.

Products img

Overview

Product appearance

Product appearance

CAD drawings

Download CAD drawingsMMX224

e.g. CFL:L-Feeder(Option)

Option

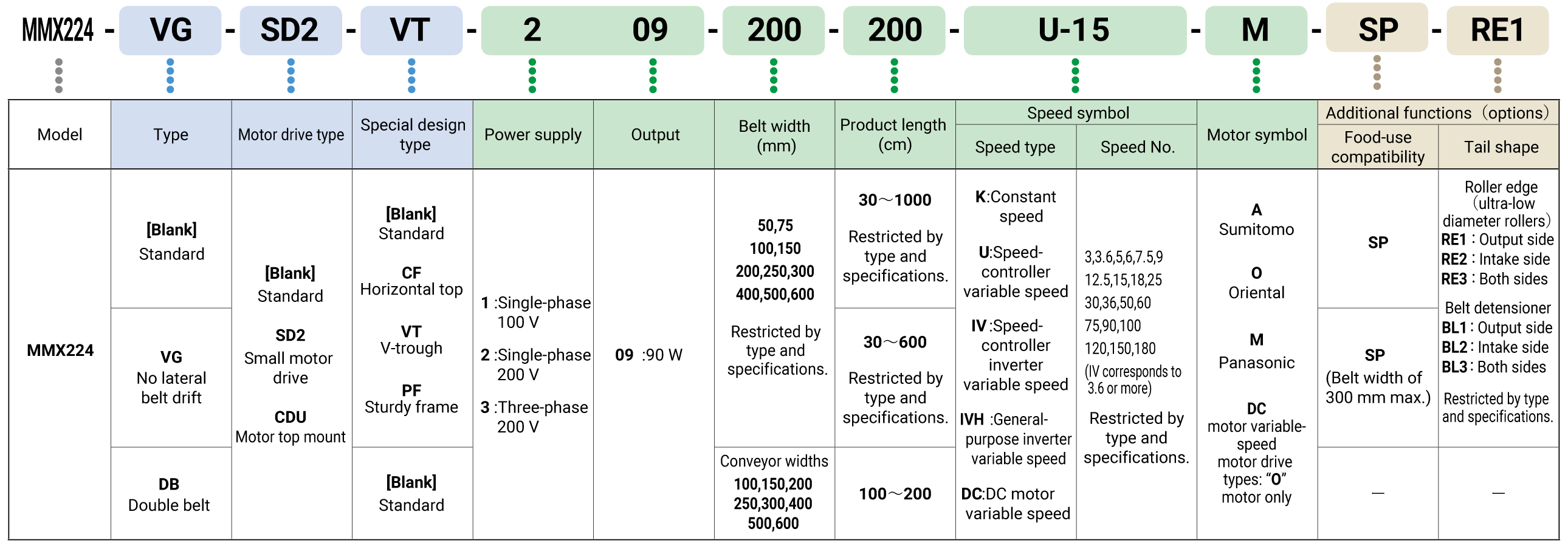

Key to model number designations

Key to model number designations image

Click to enlarge image
Key to model number designations

Note:
(1) When no symbol applies or no appended symbol is needed, the symbol and the hyphen (-) before it are omitted.
(2) The model designations shown here are for the purpose of illustrating the symbols, and in some cases may denote models that do not actually exist.
(3) See the options page for information on the belt detensioner.

Specifications

Specifications
Specifications

Note:
(1) Use 50% of the value for the standard type as the guideline value for the VG type's conveyor payload.
(2) The maximum product length for belt width of 50/75 mm is 600 cm.

Belt lengths

Belt lengths
Belt lengths

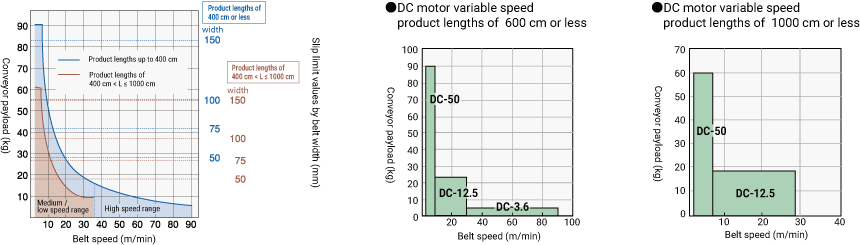

Conveyor payloads

Key to model number designations image

Click to enlarge image
Conveyor payloads

Note:
Use 50% of the value for the standard type as the guideline value for the VG type's ,CF type's,VT type's conveyor payload.

Power supplies and speeds

Power supplies and speeds
Power supplies and speeds

Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Speeds of DC motor variable speed models may vary by up to 0.6% more or less than the values shown, depending on the motor characteristics and payload.
(3) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.

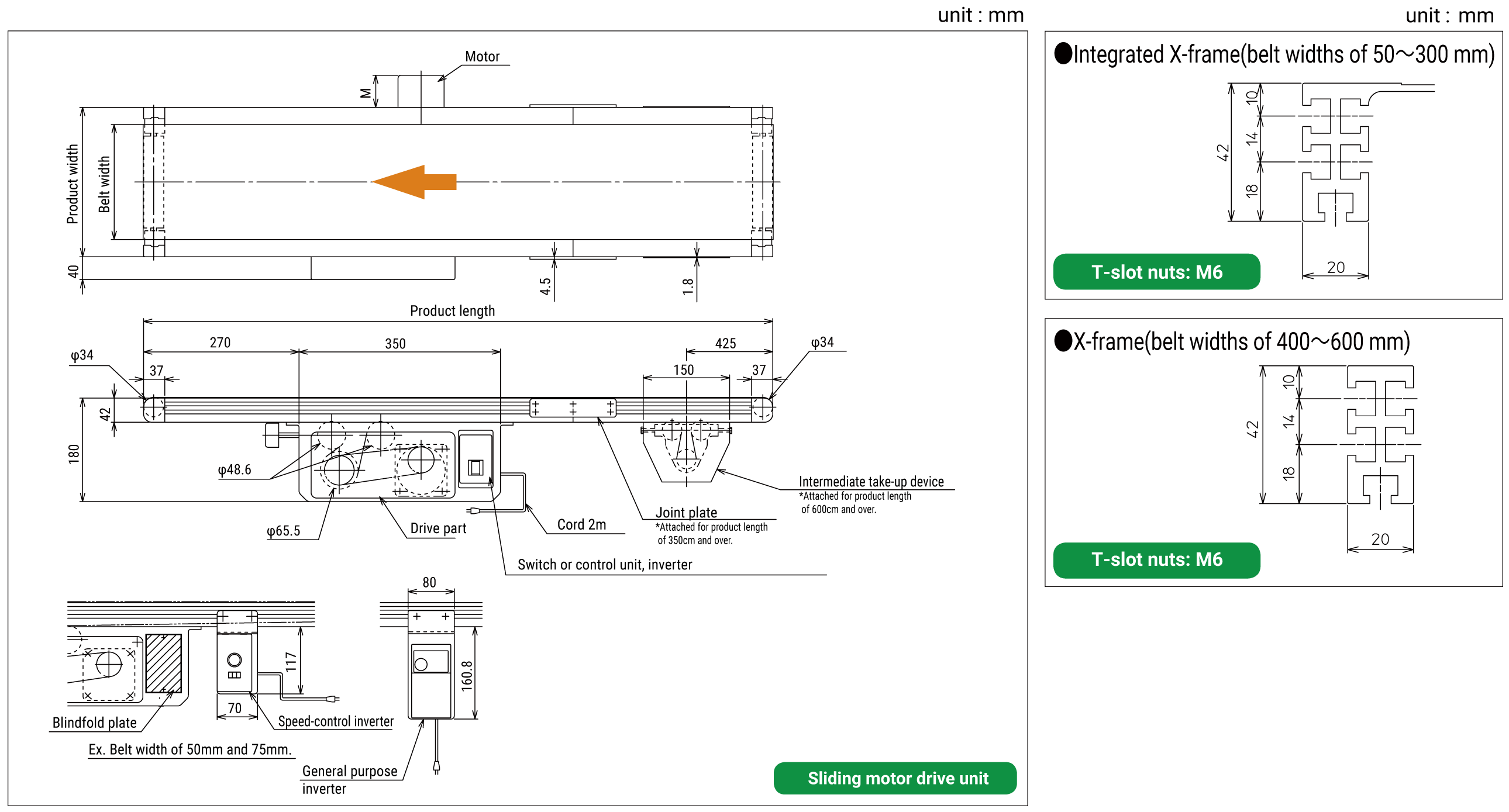

Dimensions,Frame cross-section

Dimensions,Frame cross-section

Click to enlarge image
Dimensions,Frame cross-section

Motor projection dimension M (maximum value)

Motor projection dimension M (maximum value)
Motor projection dimension M (maximum value)

Note:
Each dimension shown is the maximum value among the motors available.(A:Sumitomo, O:Oriental, M:Panasonic)

Options

Type

Standard (no symbol) type / meandering-less (VG) type MMX224 / MMX224-VG
MMX200-VG

Legs and guides are optional.

The standard belt type is flat on both the front and back sides. For standard type and VG type, it is possible to set a belt loosening device.

MMX200-VG

Non-meandering type (VG) which prevents meandering by attaching a crosspiece in the center at the back of the belt.

Various motive types(Specifications without description are the same as standard products.)

Shorter product length conveyor Small-scale motive (SD2) type MMX224-SD2
MMX224 SD2
Specifications
Specifications
Specifications

It is possible to set the belt loosening device.

The motive part is the smallest possible size.
A shorter product length conveyor is possible.

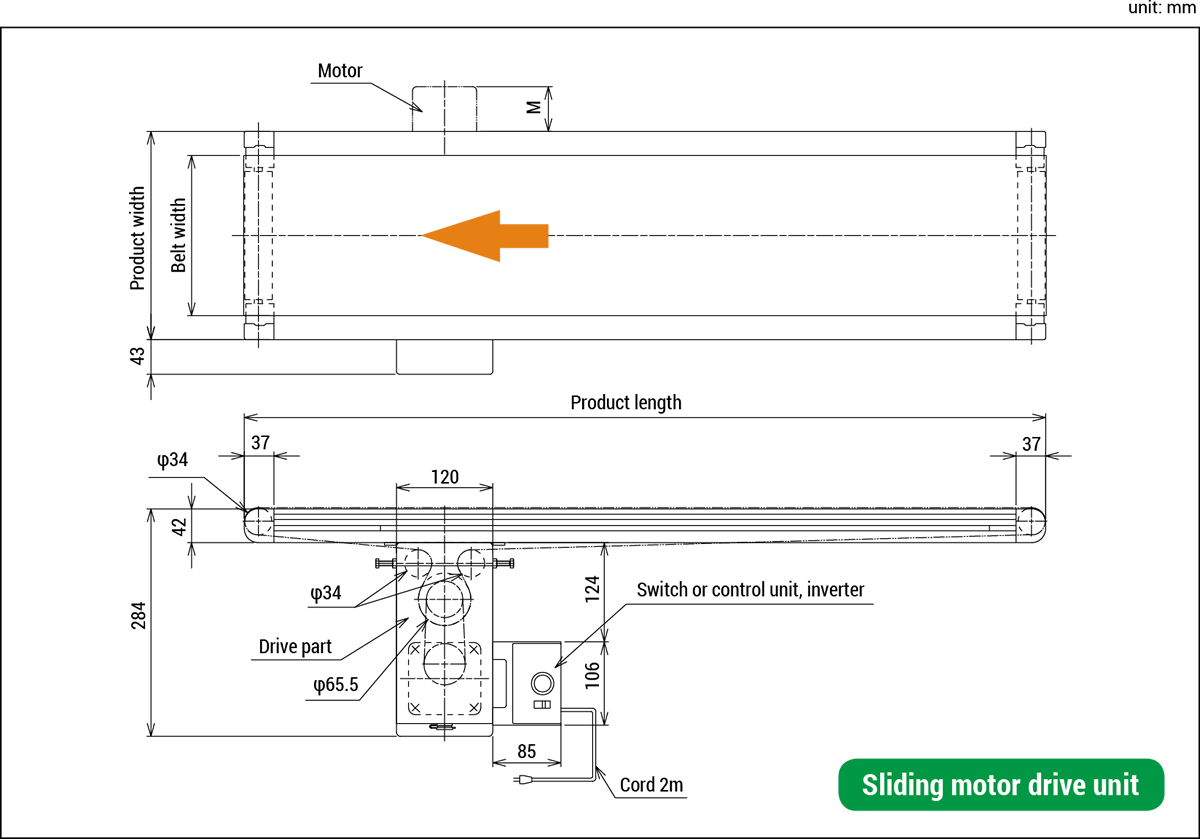

Dimensions

Dimensions

Click to enlarge image
Dimensions

Special type(Specifications without description are the same as standard products.)

Transfer from a slope to the horizontal and vice-versa Upper horizontal (CF) type MMX224-CF
MMX224-CF
Product length

Product length: 100~1000cm

Conformance speed (Speed No.)
Conformance speed (Speed No.)
Conformance speed (Speed No.)

Transport weight: Use the standard 50% as a guide.
If the slope is steep, a separate tilting belt is required.
It is possible to set the belt loosening device.

Transfer from a slope to horizontal and vice-versa without changing over using 1 machine.
The slope angle can be adjusted from 0 to 30°.

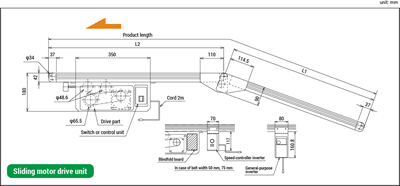

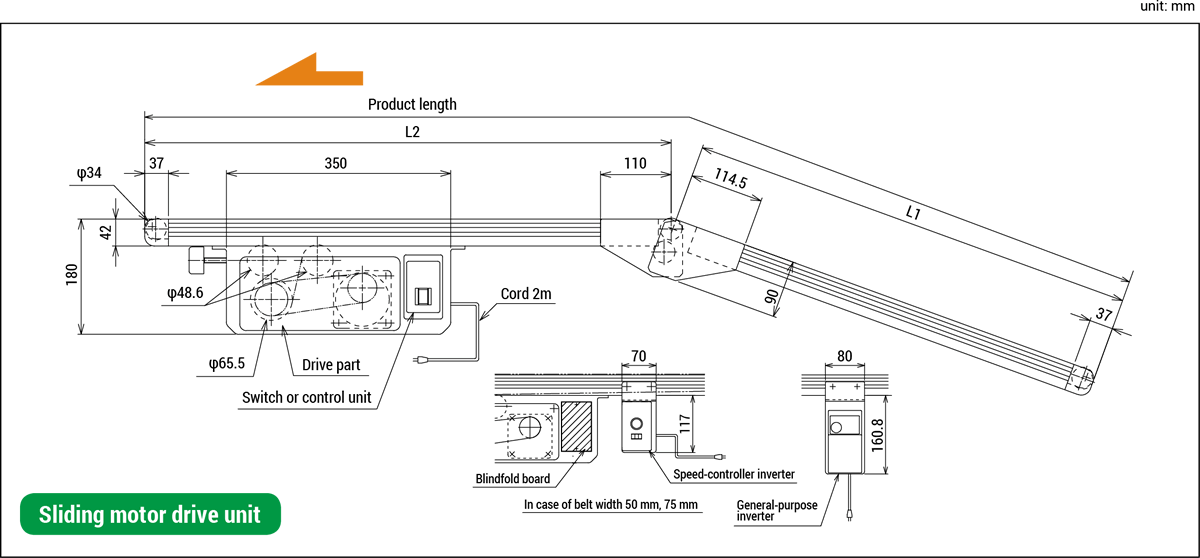

Dimensions

Dimensions

Click to enlarge image
Dimensions

Special type(Specifications without description are the same as standard products.)

Ideal for carrying loose objects V-trough (VT) type MMX224-VT
MMX224-VT

A V-shaped guide has been inserted into both sides of the belt to set the transfer surface in the bilge. Ideal for carrying loose objects.

Specifications
Specifications
Specifications
Conformance speed (Speed No.)
onformance speed (Speed No.)
onformance speed (Speed No.)

Transport weight: Use the standard 50% as a guide.

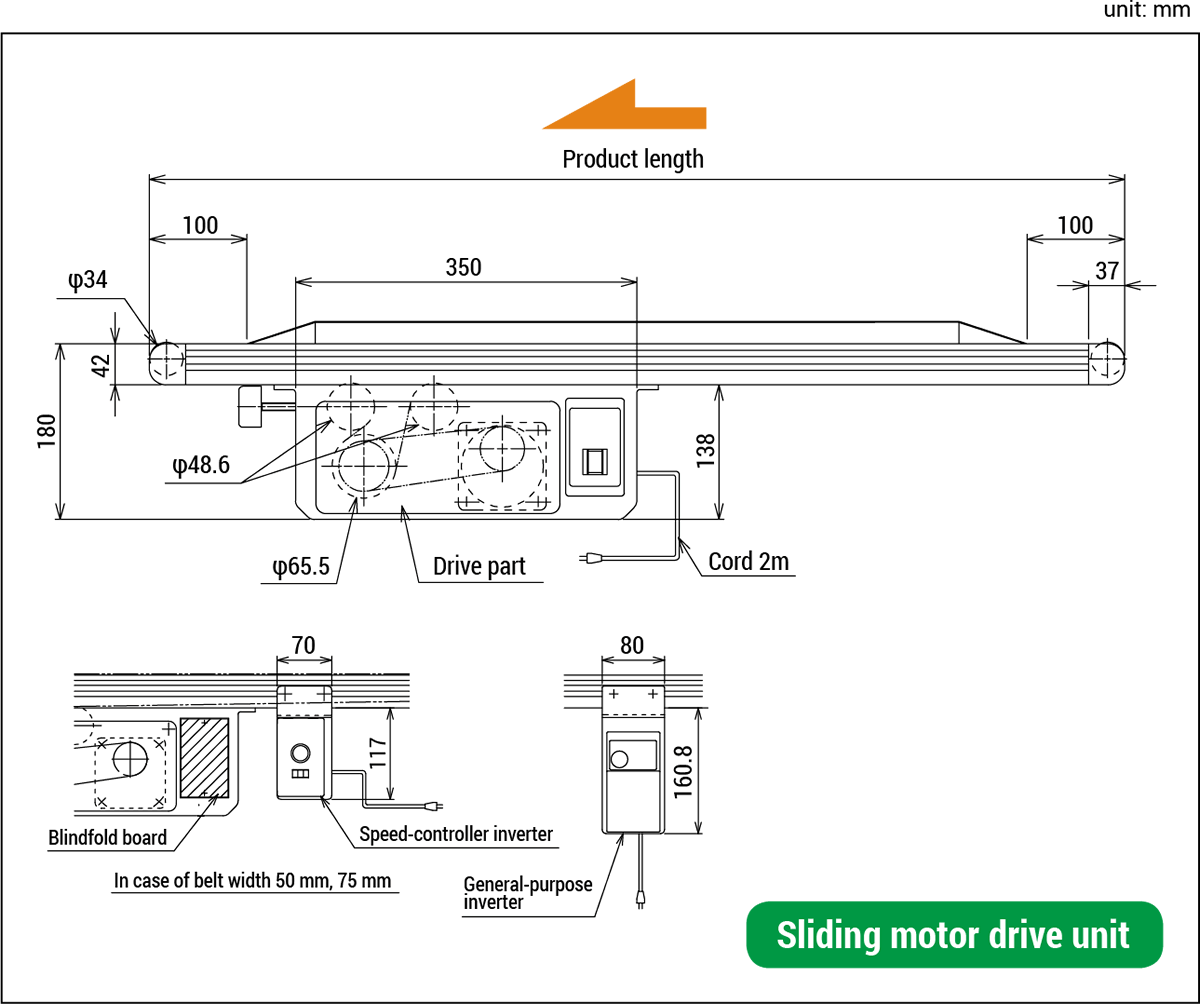

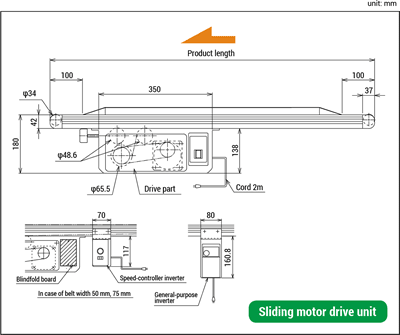

Dimensions

Dimensions

Click to enlarge image
Dimensions

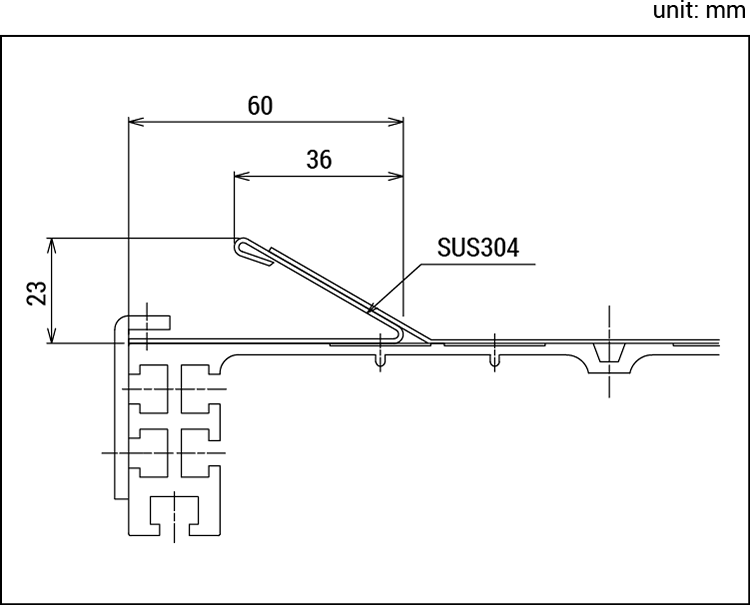

Frame cross-sections

Cross-sections

Click to enlarge image
Cross-sections

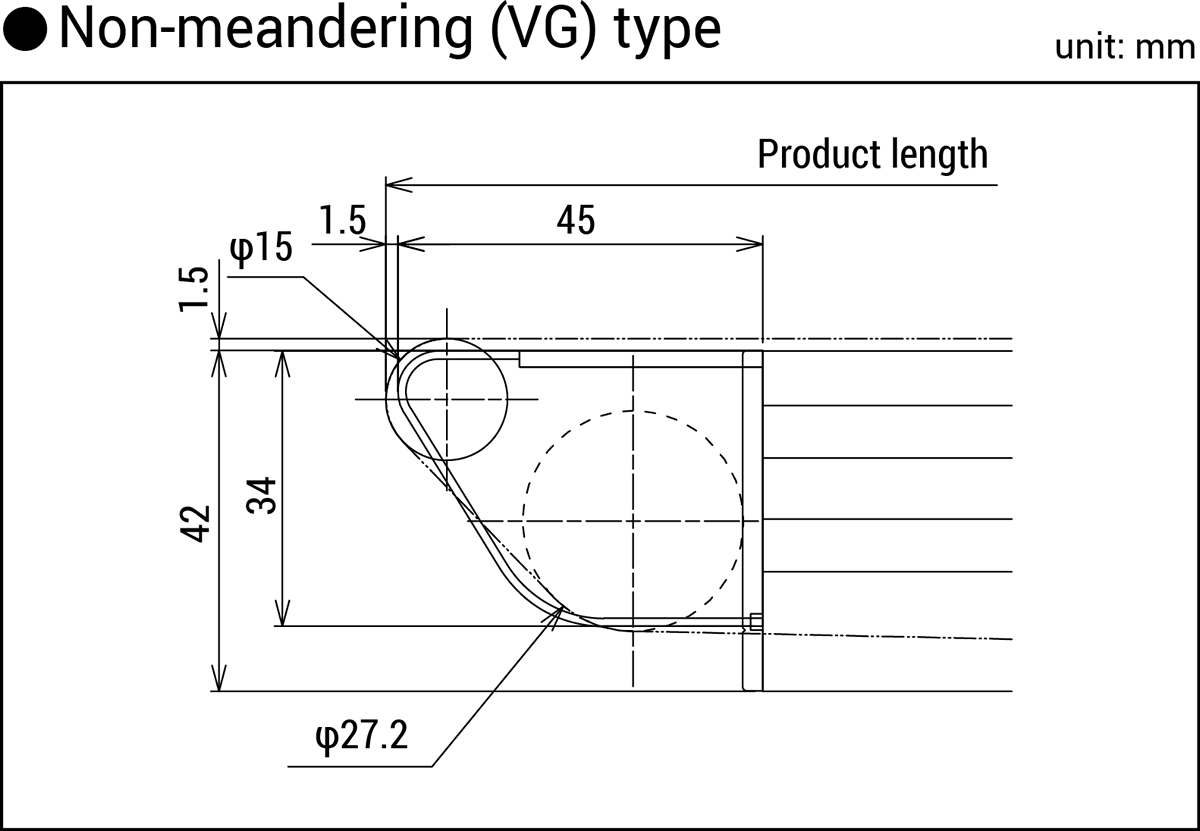

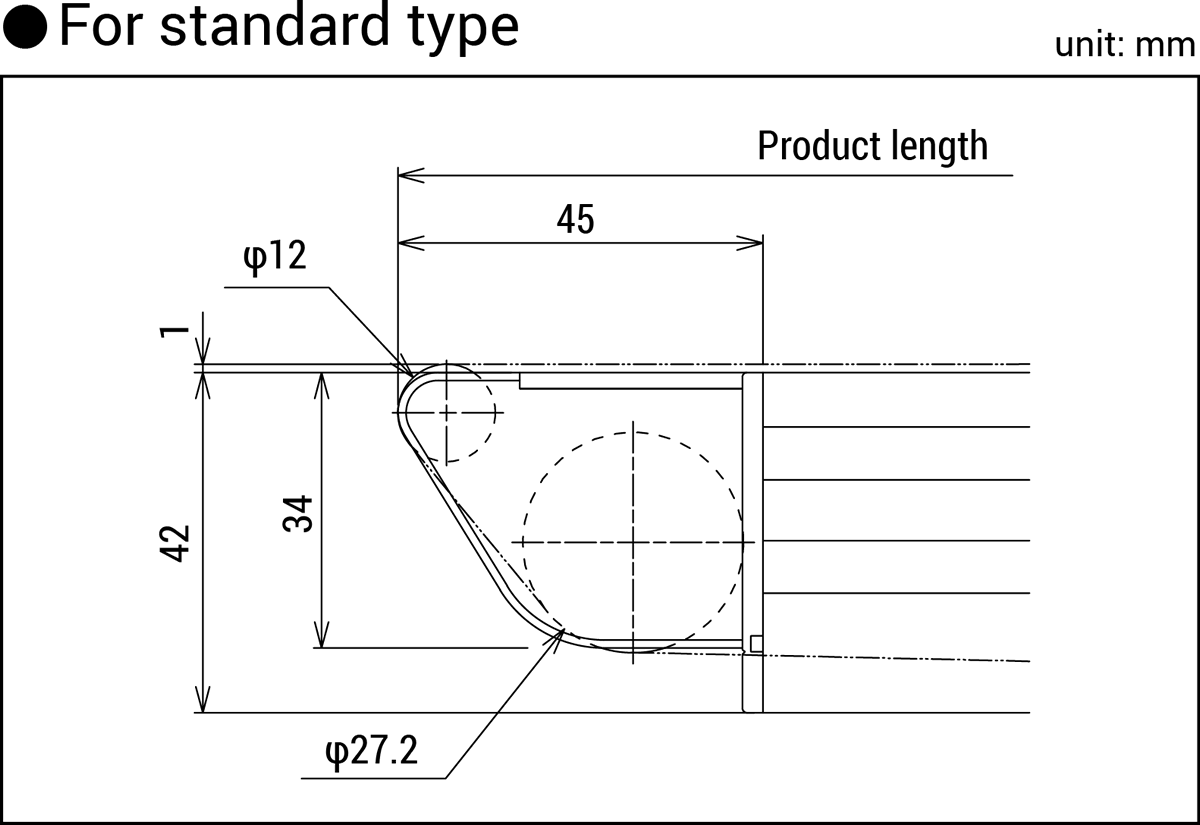

Tail shape For transferring small transported objects Roller edges (RE1, RE2, RE3)  RE1: Installed on exit side RE2: Installed on entrance side RE3: Installed on both sides MMX224-RE1

Small transported objects can also be transferred smoothly because small rollers of diameter φ12 (non-meandering (VG) type has a diameter of φ15) are used at the end of the tail

MMX224 RE1
Specifications
Specifications
Specifications

The minimum product length is the minimum product length of each type.

Conformance speed (Speed No.)

Conformance speed (Speed No.)

Click to enlarge image
Conformance speed (Speed No.)
Belt length table

Belt length table

Click to enlarge image
Belt length table
Dimensions

Dimensions

Click to enlarge image
Dimensions

Dimensions

Click to enlarge image
Dimensions

Option(Guide)

PG1
PG1

Option(Leg)

MMX224-HA1
MMX200-HA1
