MBC2

A standard curved conveyor with outstanding durability.

Products img

Overview

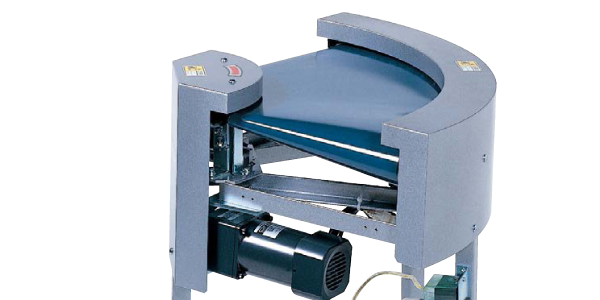

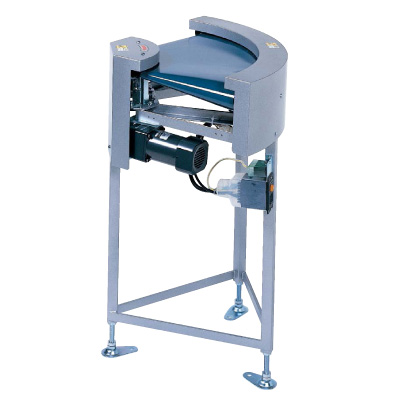

Product appearance

Product appearance

CAD drawings

Download CAD drawingsMBC2

Optional MF belt

VG type

Note: 200 mm nominal belt width is not available

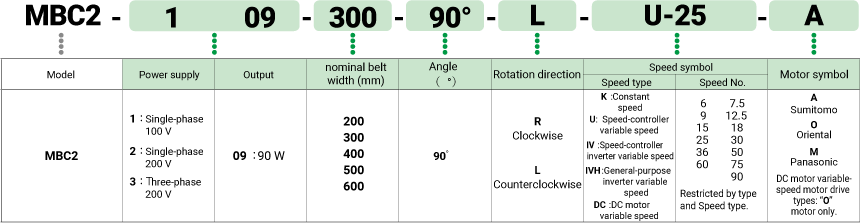

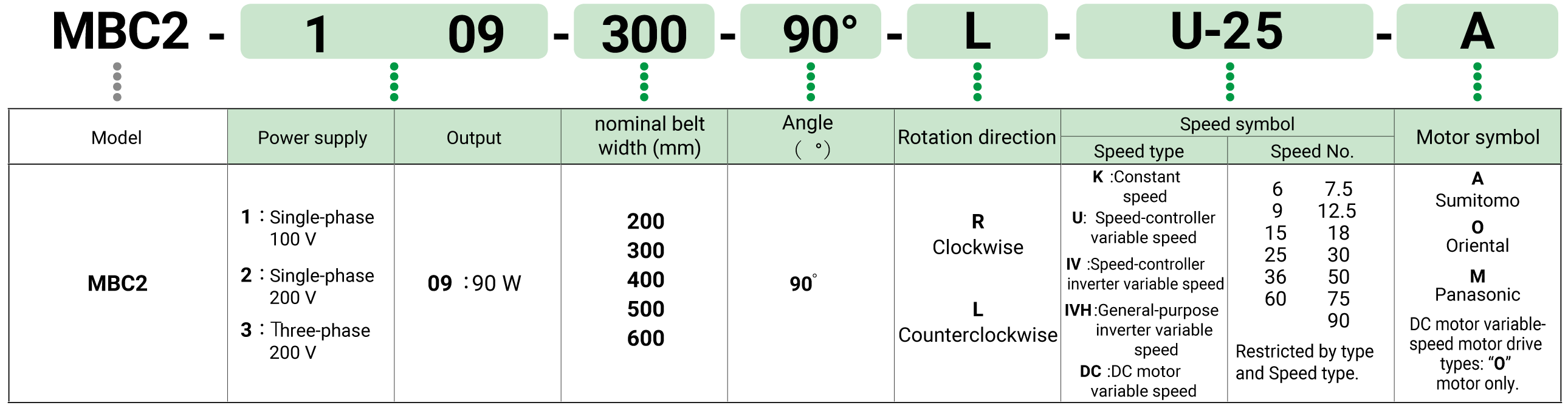

Key to model number designations

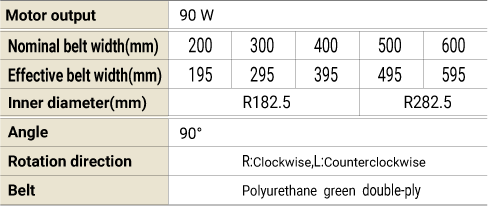

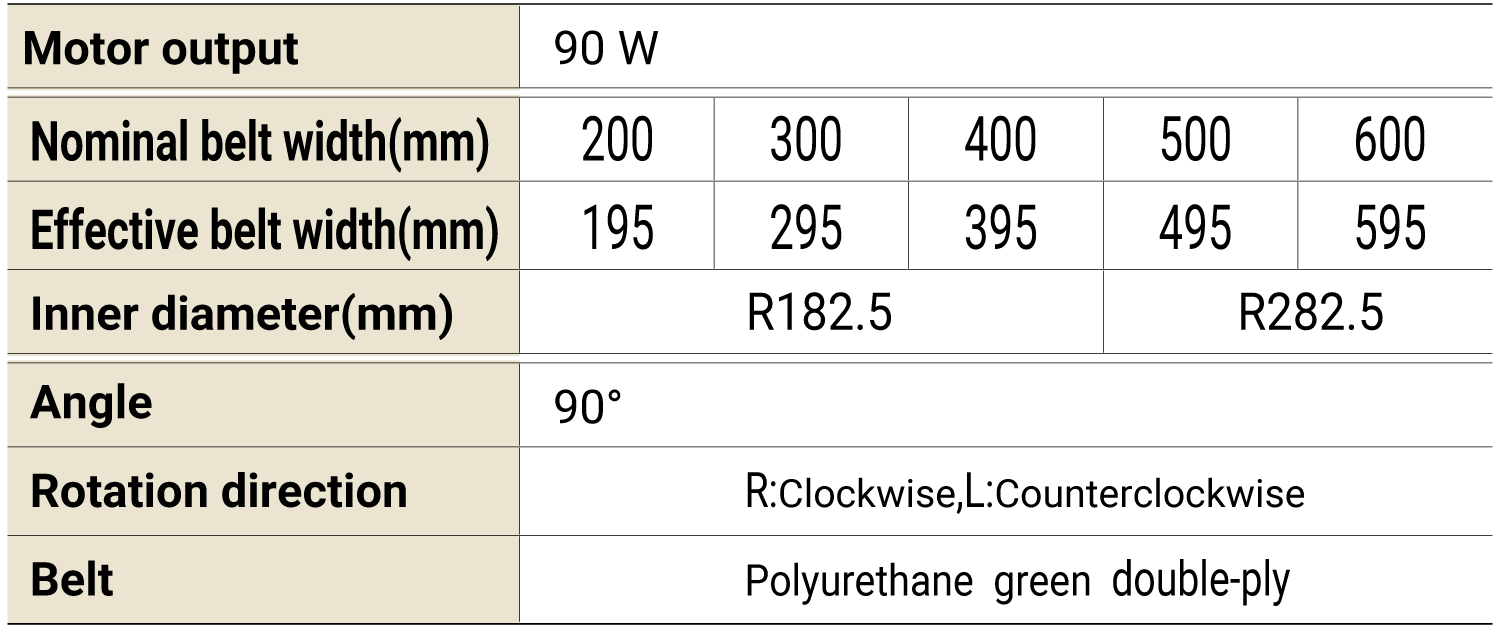

Specifications

Specifications
Specifications

Power supplies and speeds(The speeds shown are the values at the belt center.)

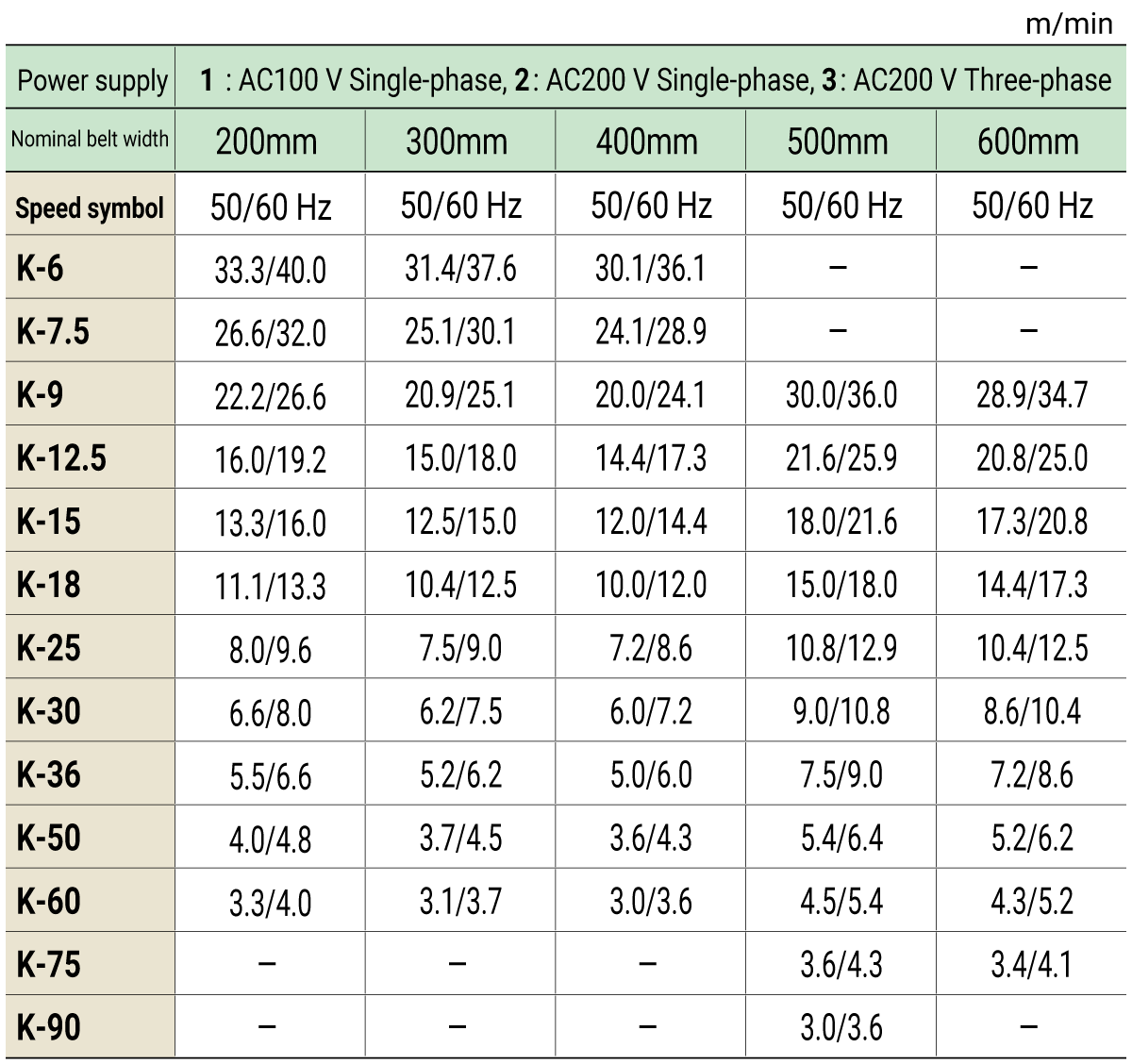

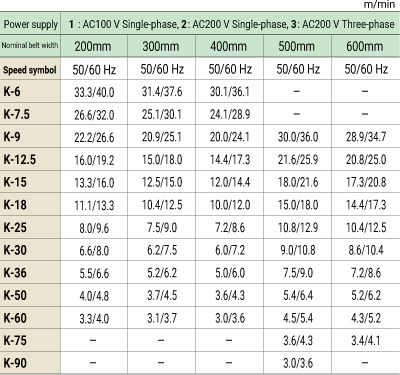

Constant speed

Constant speed
Constant speed

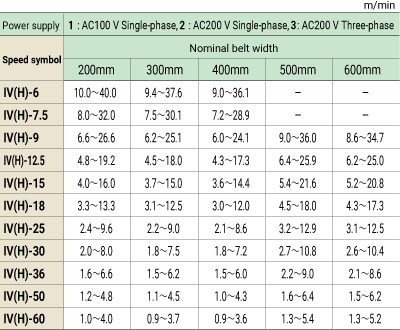

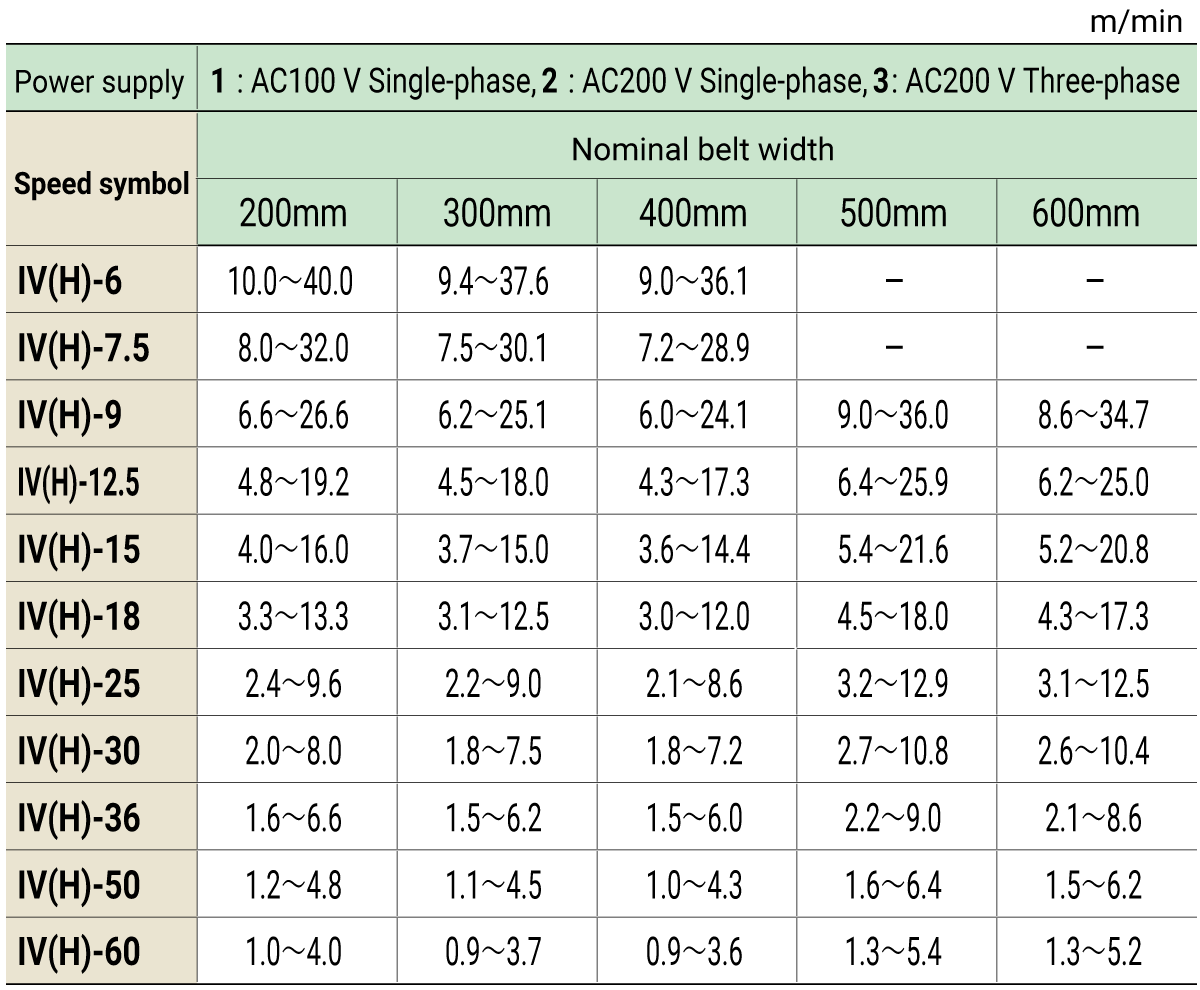

Speed-controller inverter variable speed,
General-purpose inverter variable speed

Speed-controller inverter variable speed,General-purpose inverter variable speed
Speed-controller inverter variable speed,General-purpose inverter variable speed

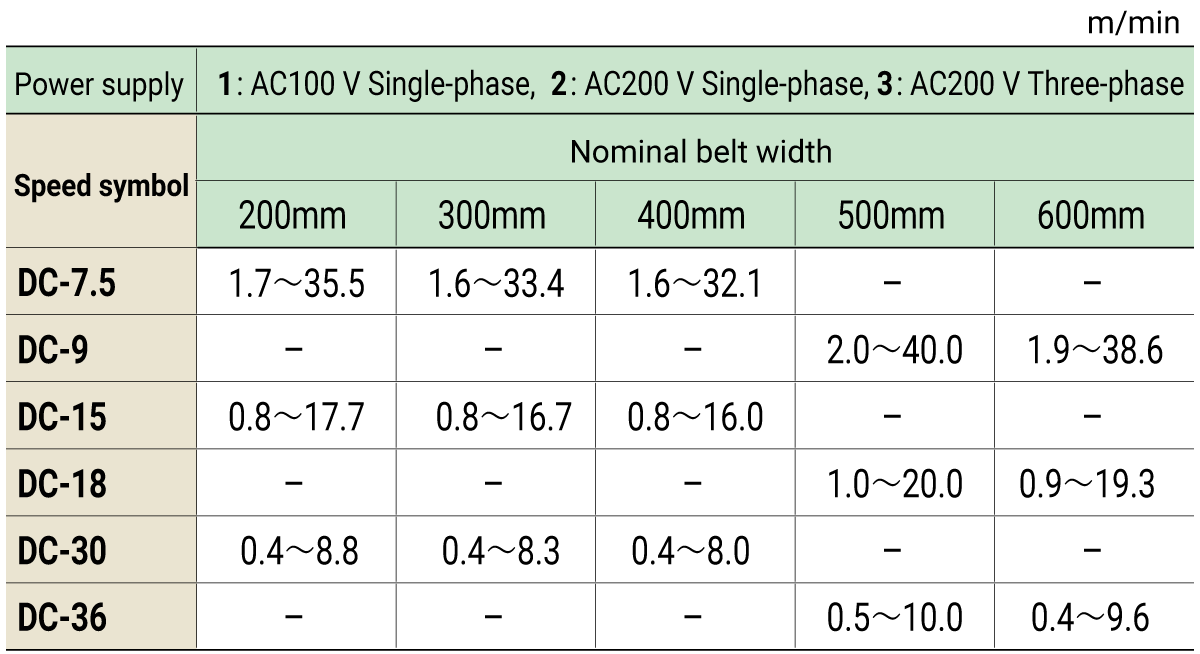

DC motor variable speed

DC motor variable speed
DC motor variable speed

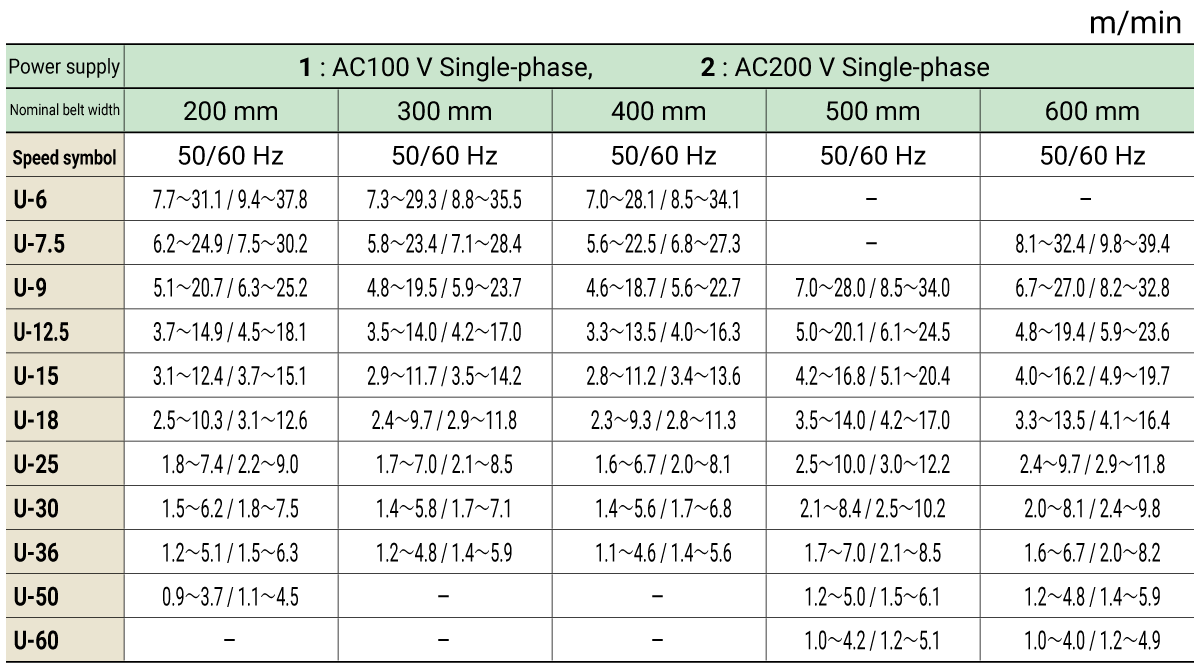

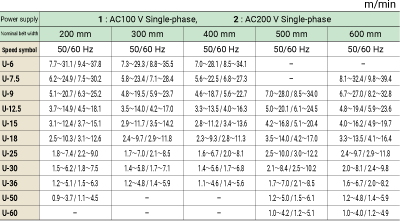

Speed-controller variable speed

Speed-controller variable speed

Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Speeds of DC motor variable speed models may vary by up to 0.6% more or less than the values shown, depending on the motor characteristics and payload.
(3) 200 mm-wide belts have low durability at high speeds, so using them at speeds lower than K/U/IV/ DC-15 is recommended.
(4) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.

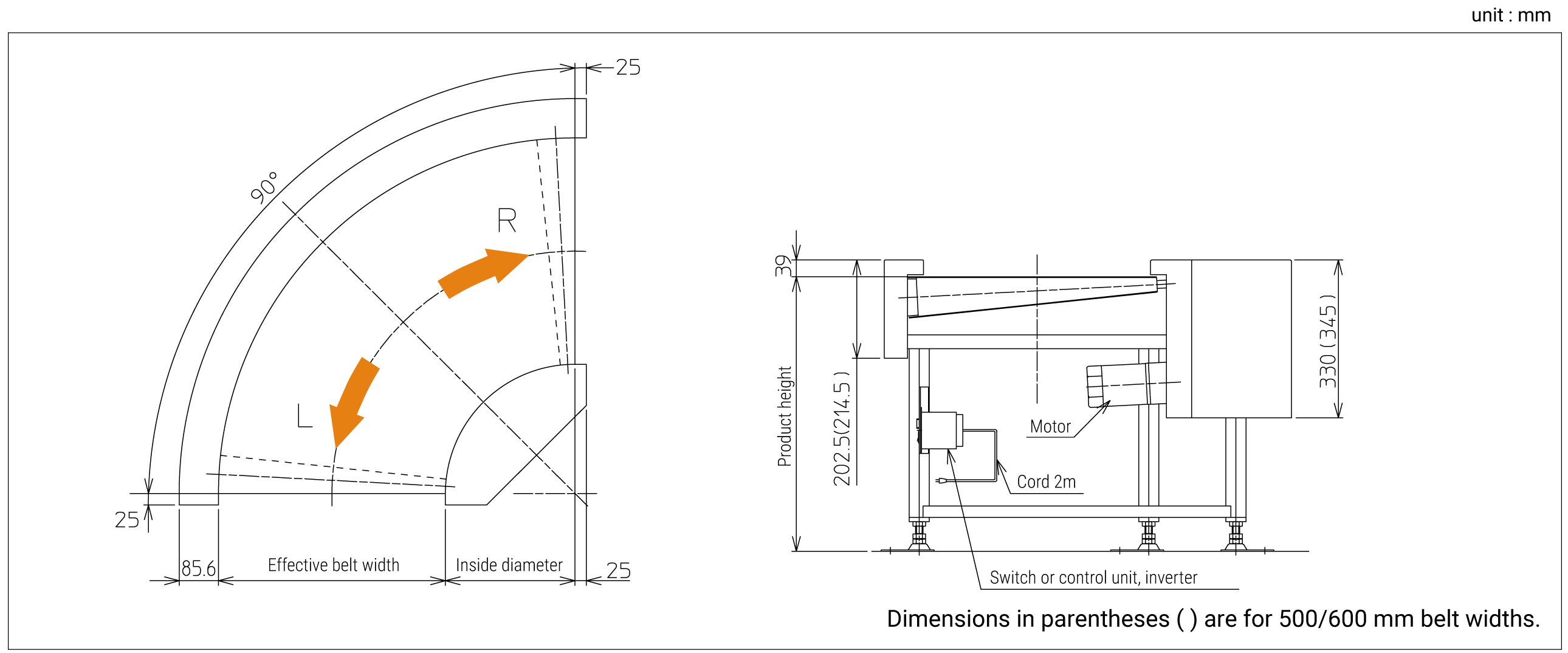

Dimensions

Dimensions
Dimensions

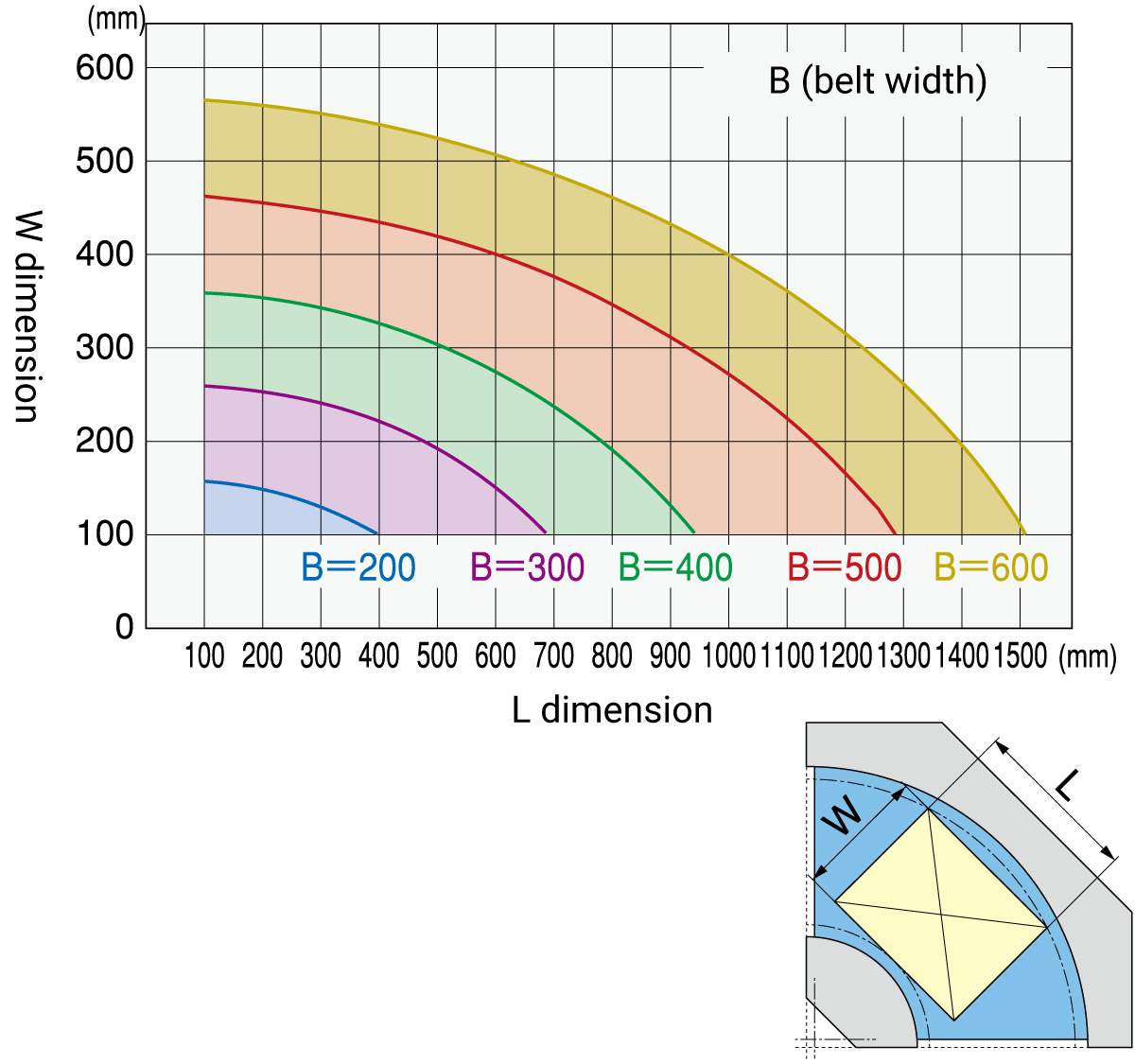

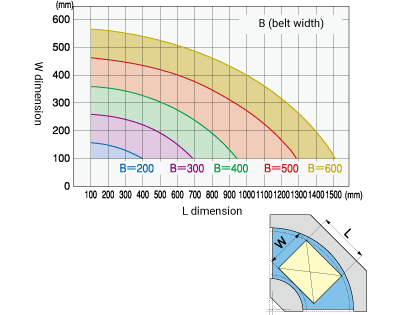

Effective belt width choices

Effective belt width choices
Effective belt width choices

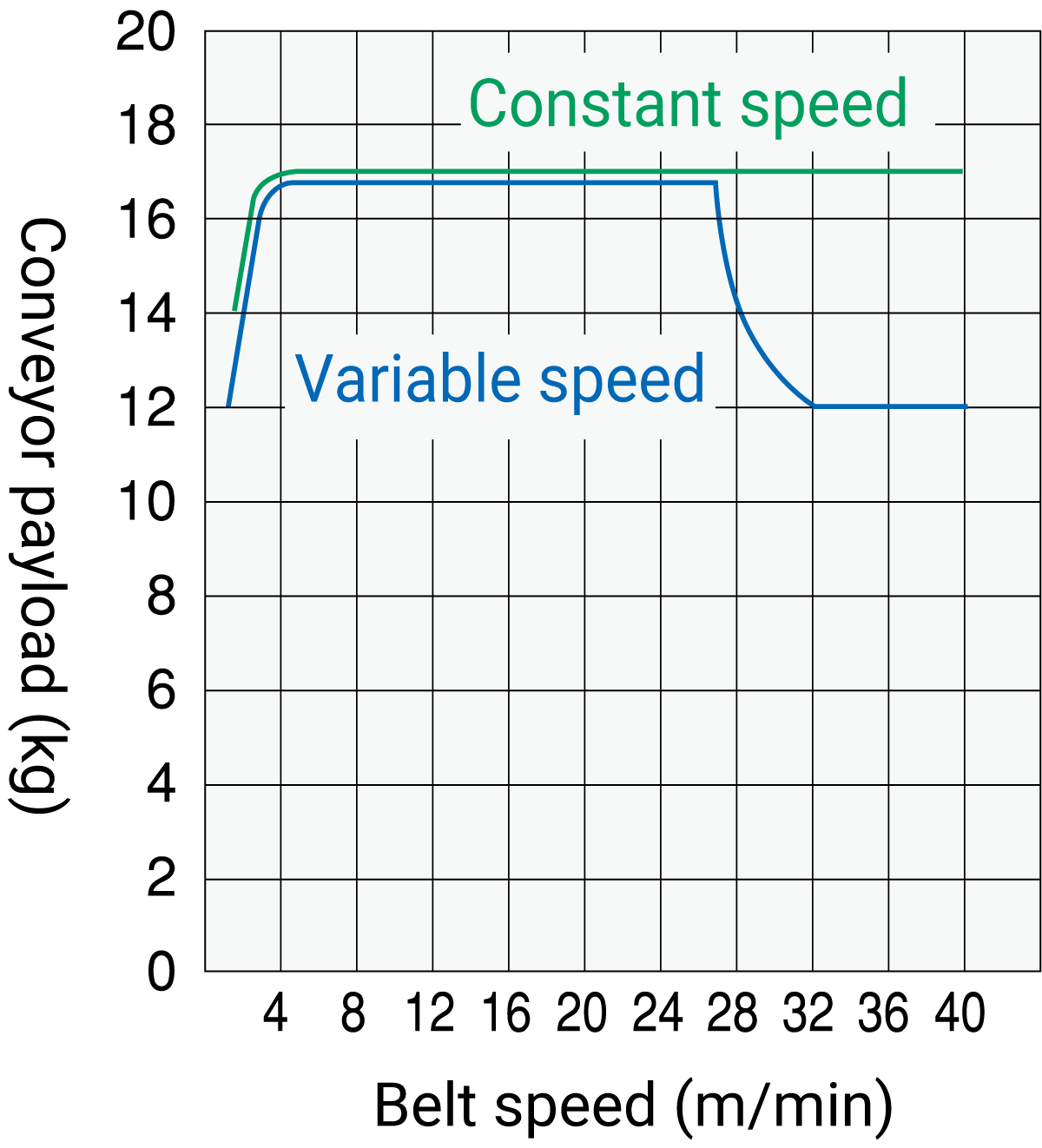

Conveyor payloads

Conveyor payloads
Conveyor payloads
