MMX300
An aluminum frame model for medium-weight loads.
Overview

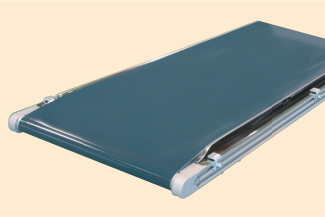

Product appearance

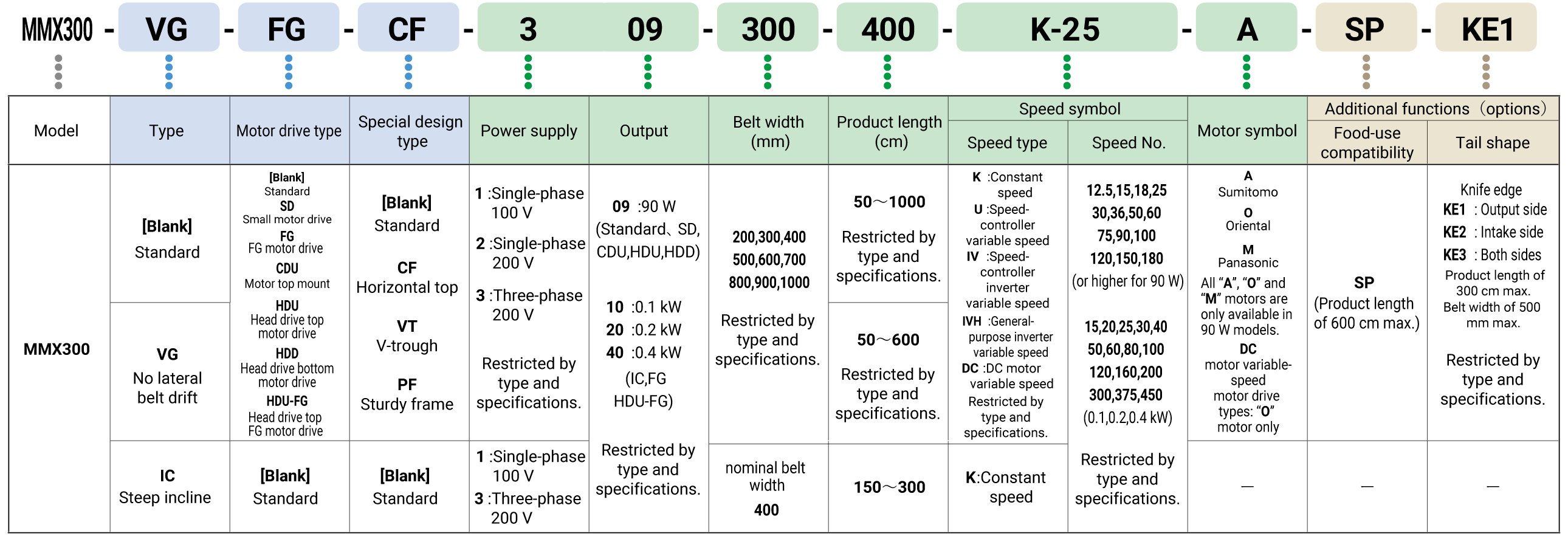

Key to model number designations
Note:
(1) When no symbol applies or no appended symbol is needed, the symbol and the hyphen (-) before it are omitted.
(2) The model designations shown here are for the purpose of illustrating the symbols, and in some cases may denote models that do not actually exist.
(3) See the options page for information on the belt detensioner.
Specifications
Note:
(1) VG type models with a belt width of 650 mm or more have two ribs in the belt for preventing lateral belt drift.
(2) Use 50% of the value for the standard type as the guideline value for the VG type's conveyor payload.
Belt lengths

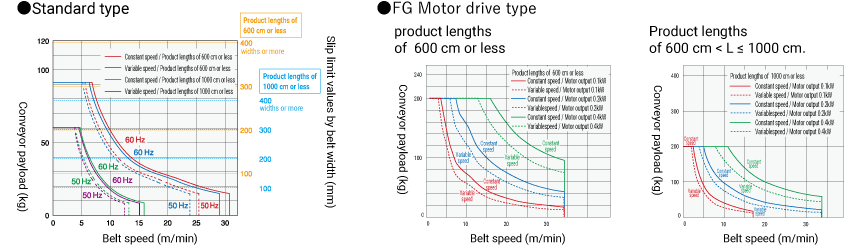

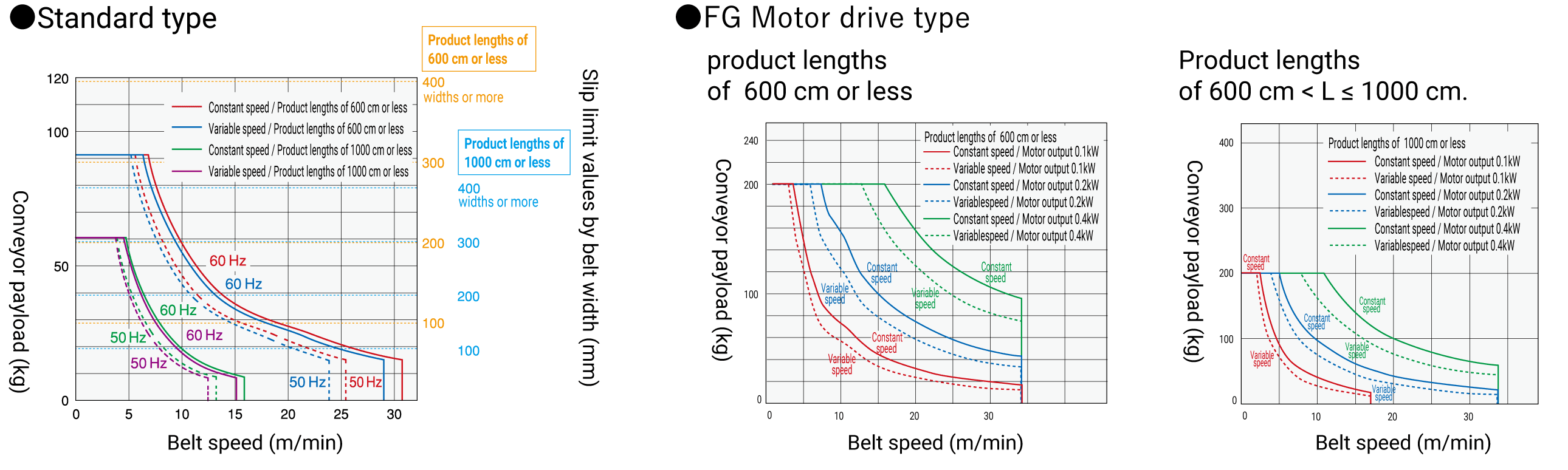

Conveyor payloads
*Use 50% of the value for the standard type as the guideline value for the VG type's ,CF type's,VT type's conveyor payload.
Power supplies and speeds
Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Speeds of DC motor variable speed models may vary by up to 0.6% more or less than the values shown, depending on the motor characteristics and payload.
(3) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.
Dimensions
Frame Cross-section
Motor projection dimension M
Note:
(1) The constant-speed and general-purpose inverter variable-speed types have no projecting dimensions.
(2) Each dimension shown is the maximum value among the motors available.(A:Sumitomo, O:Oriental, M:Panasonic)
Options
Type
Legs and stay pipe are optional.
Non-meandering type (VG) which prevents meandering by attaching a crosspiece in the center at the back of the belt.
Various motive types(Specifications without description are the same as standard products.)
The motive part is the smallest possible size.
A shorter product length conveyor is possible.
Product length
Product length: 50~400cm

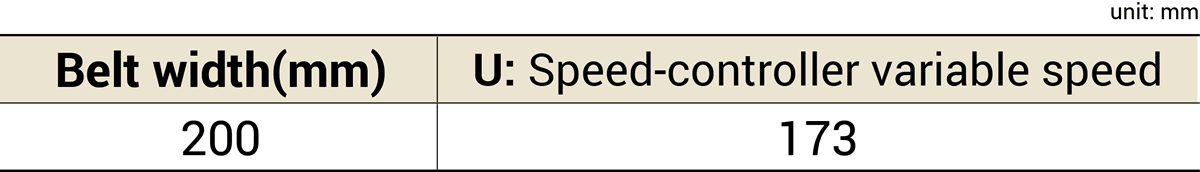

Motor protruding dimension table(M)
Note: Motor will not protrude out unless the belt width or speed is stated.

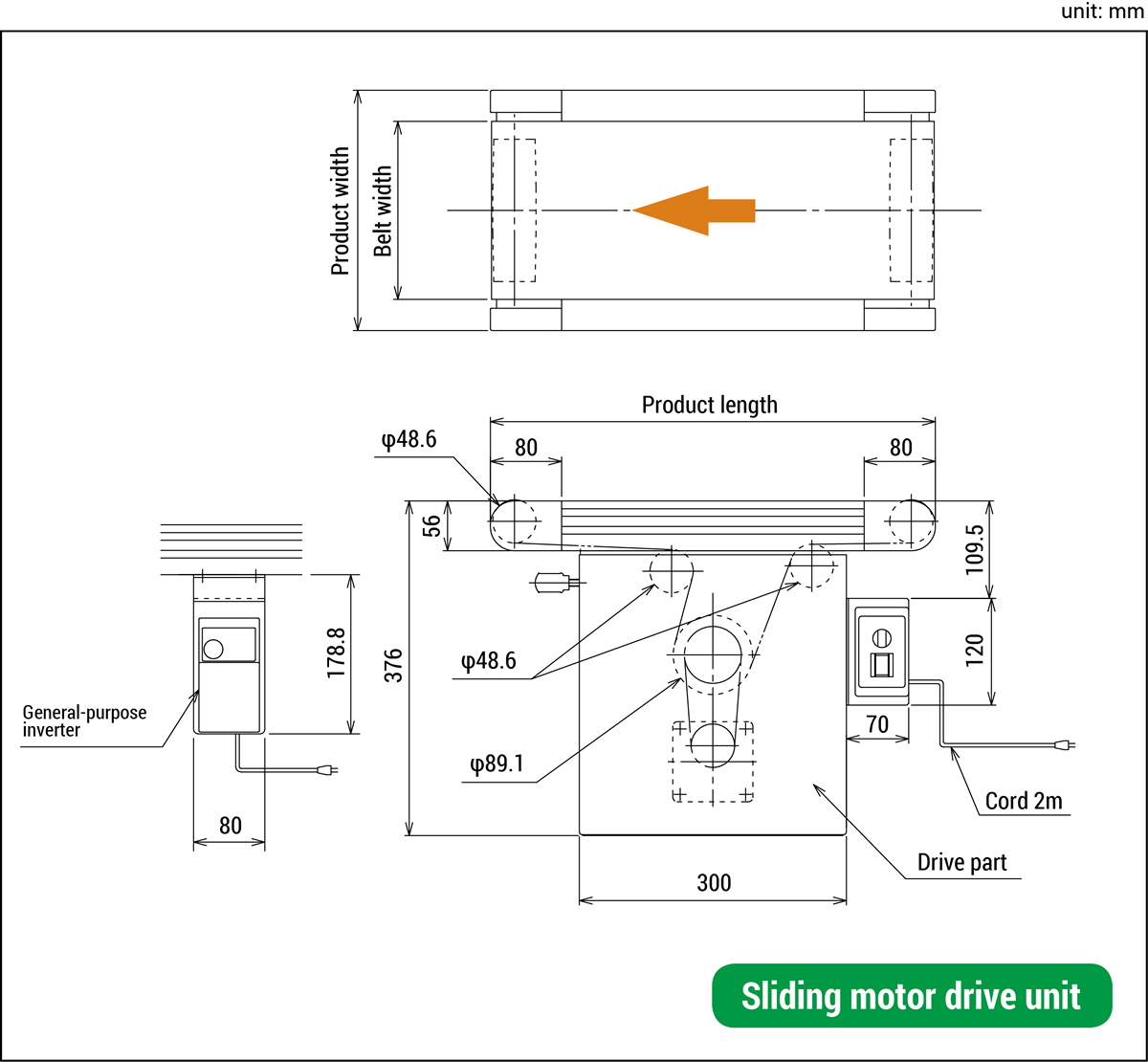

Dimensions
Special type(Specifications without description are the same as standard products.)

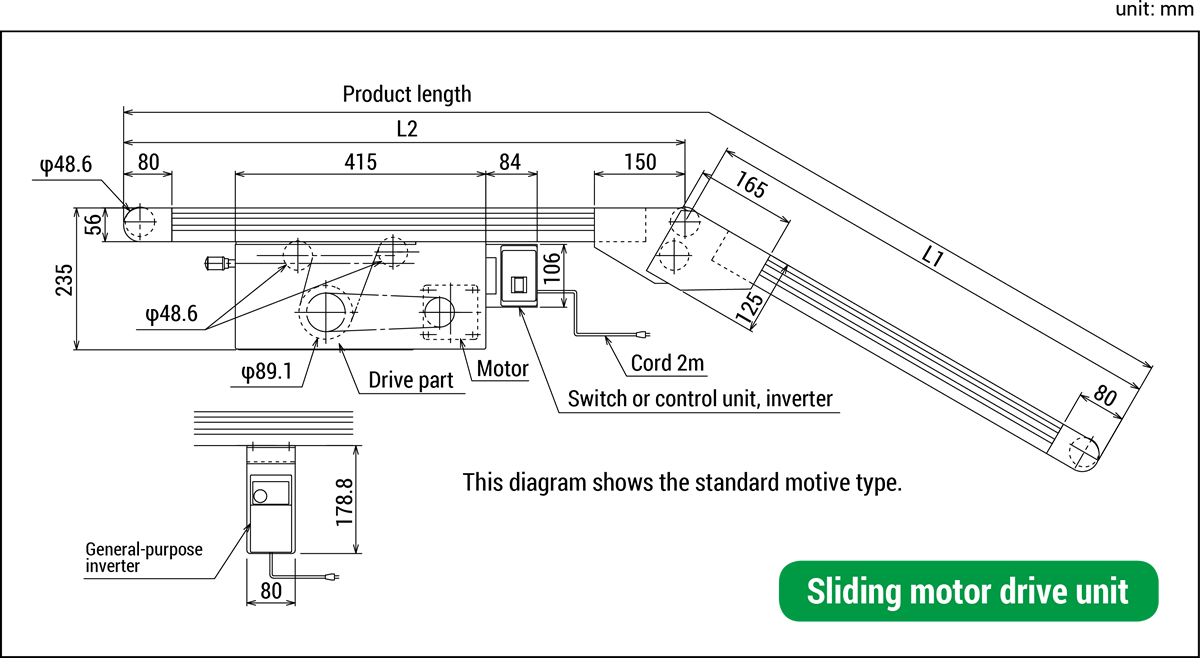

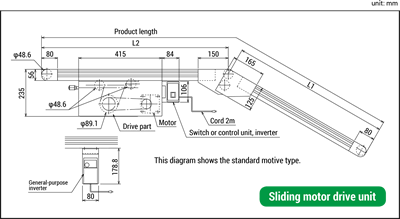

Transfer from a slope to horizontal and vice-versa without changing over using 1 machine. The slope angle can be adjusted from 0 to 45°.
Product length
Product length: 135~600cm
Transport weight: Use the standard 50% as a guide.
If the slope is steep, a separate tilting belt is required.

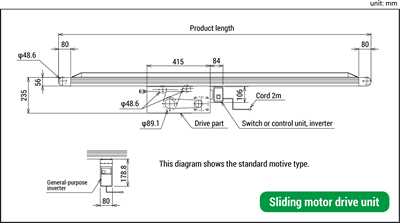

Dimensions
A V-shaped guide has been inserted into both sides of the belt to set the transfer surface in the bilge.
Ideal for carrying loose objects.
Product length
Product length: 100~600cm
Transport weight: Use the standard 50% as a guide. Belt will be 1 ply.

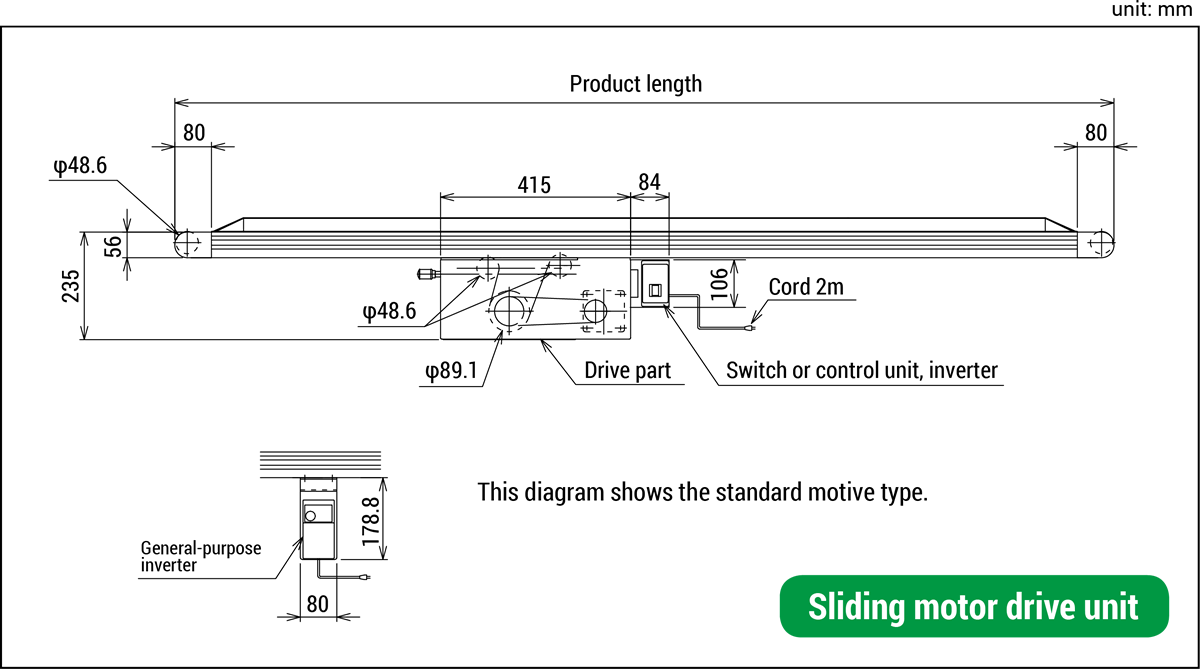

Dimensions
Option(Guide)
Option(Leg)
