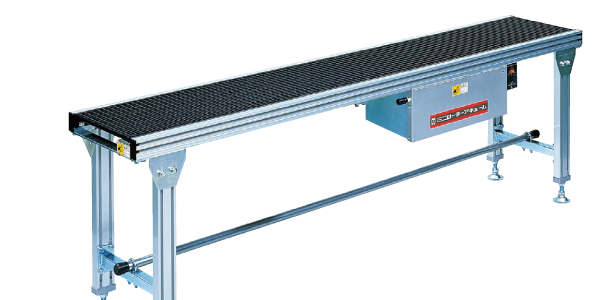

MRA1
A small-diameter roller conveyor for moving boxes and
other relatively small loads.
![Products img](../../common/images/products/mra1/detail_img.png)
Overview

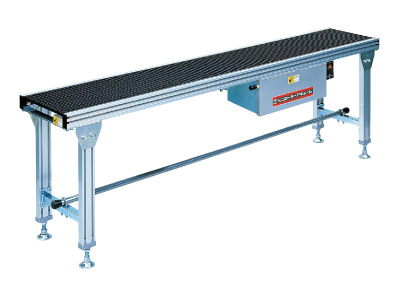

Product appearance
![Product appearance](../../common/images/products/mra1/img_01.jpg)
Flat belt drive
![Flat belt drive](../../common/images/products/mra1/img_02.jpg)

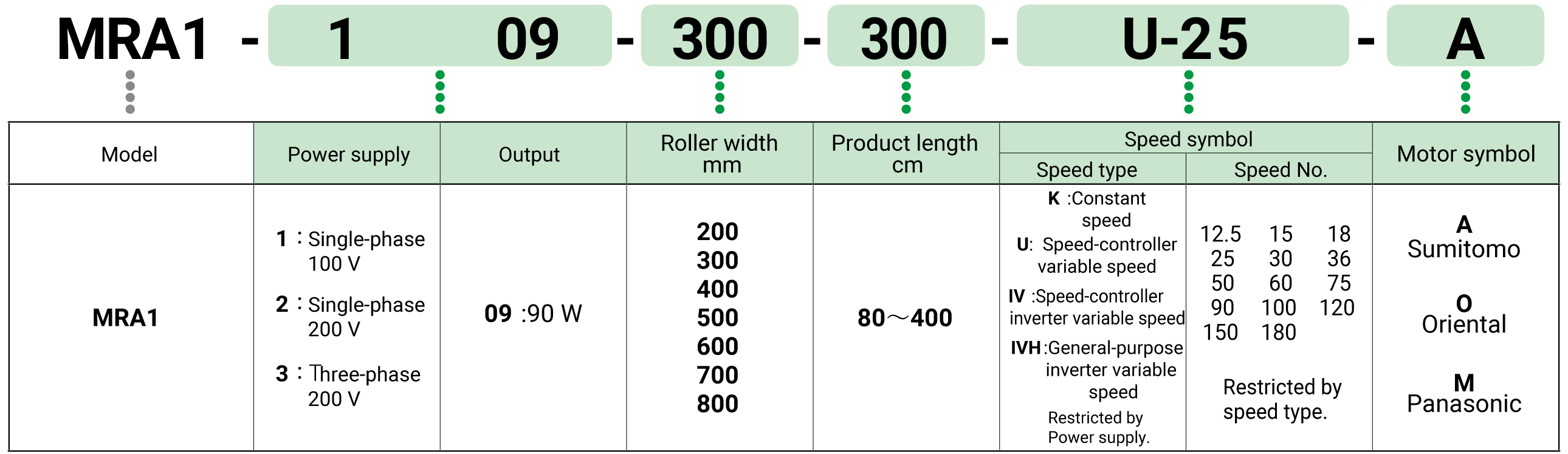

Key to model number designations
![Key to model number designations](../../common/images/products/mra1/img_03a.png)
![Key to model number designations](../../common/images/products/mra1/img_03L.png)

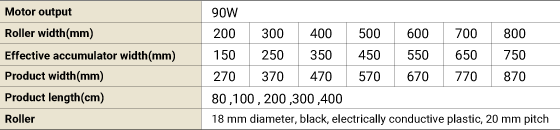

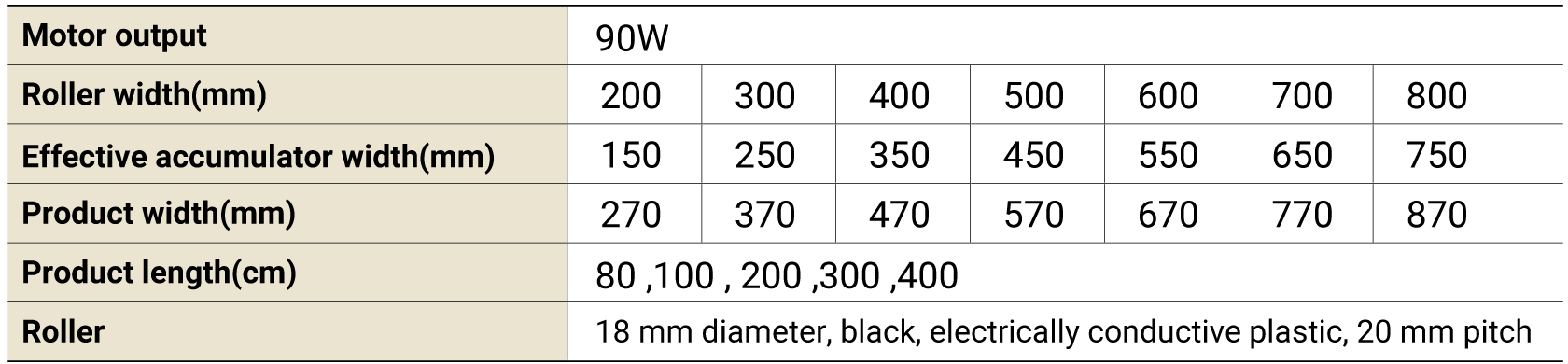

Specifications
![Specifications](../../common/images/products/mra1/img_04.png)
![Specifications](../../common/images/products/mra1/img_04L.png)
*Rubber-covered rollers are not available for models with a roller width of over 600 mm.

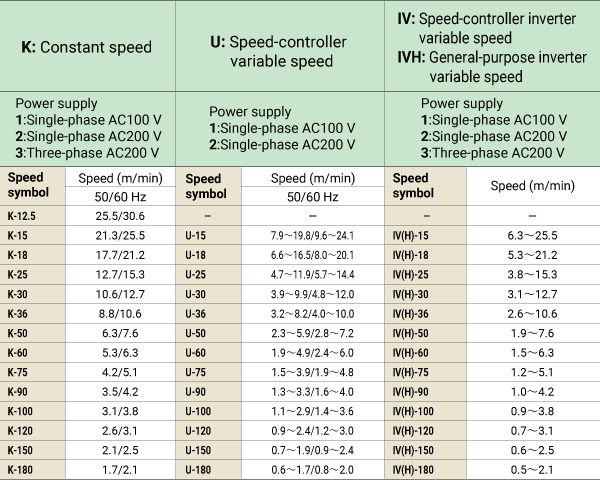

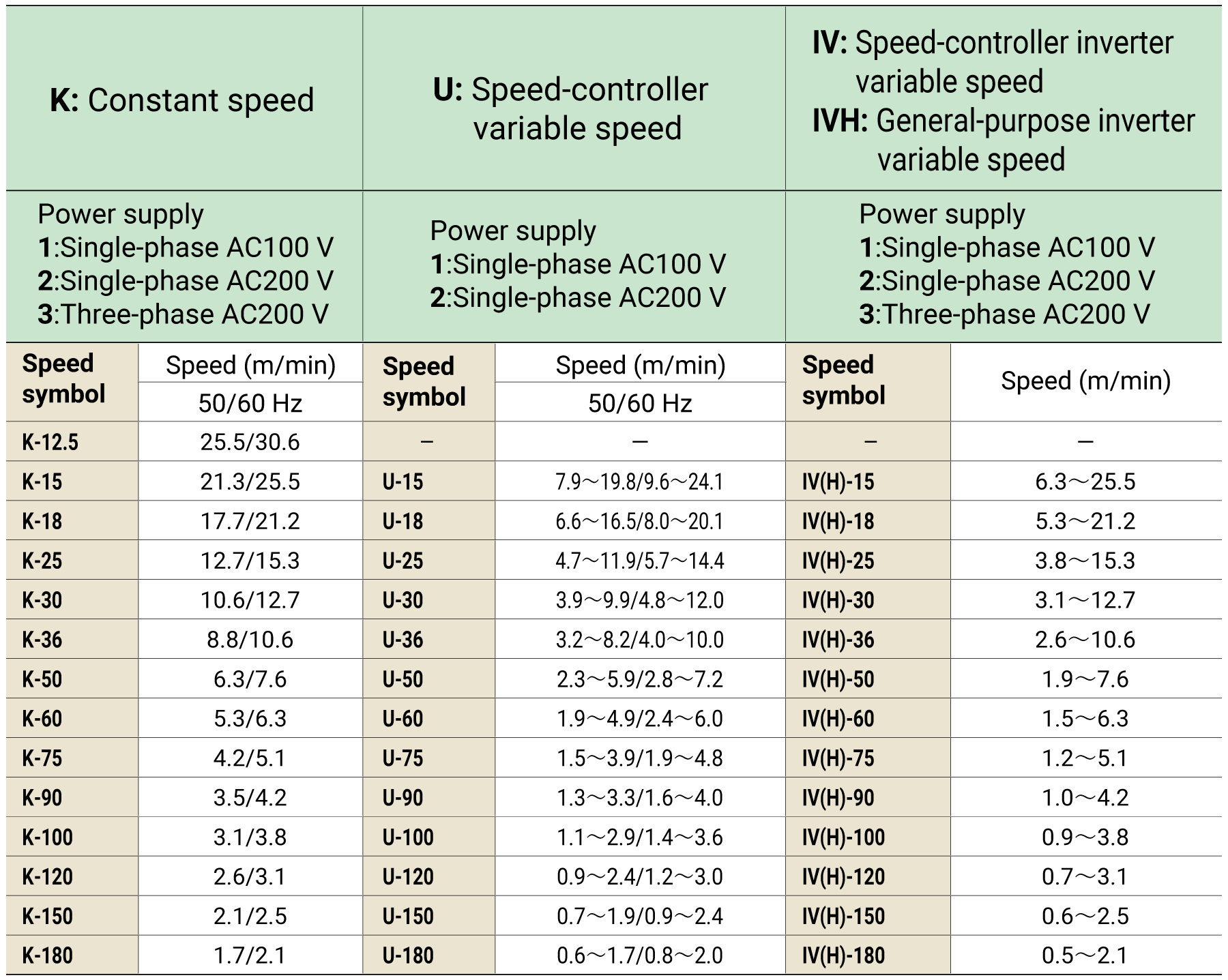

Speeds
![Speeds](../../common/images/products/mra1/img_05.png)
![Speeds](../../common/images/products/mra1/img_05L.png)
Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.

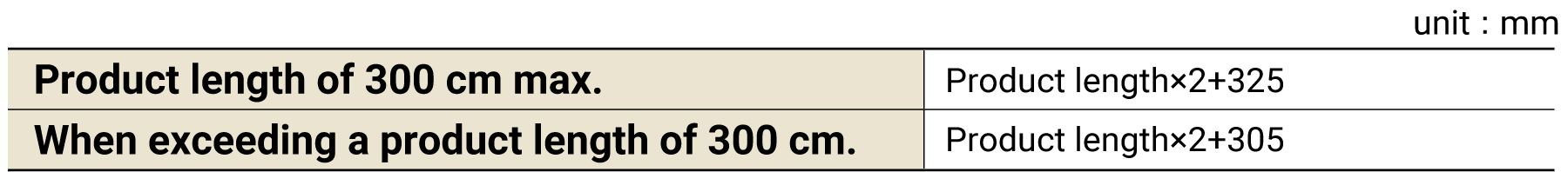

Transmission belt lengths
![Transmission belt lengths](../../common/images/products/mra1/img_06a.png)
![Transmission belt lengths](../../common/images/products/mra1/img_06L.png)

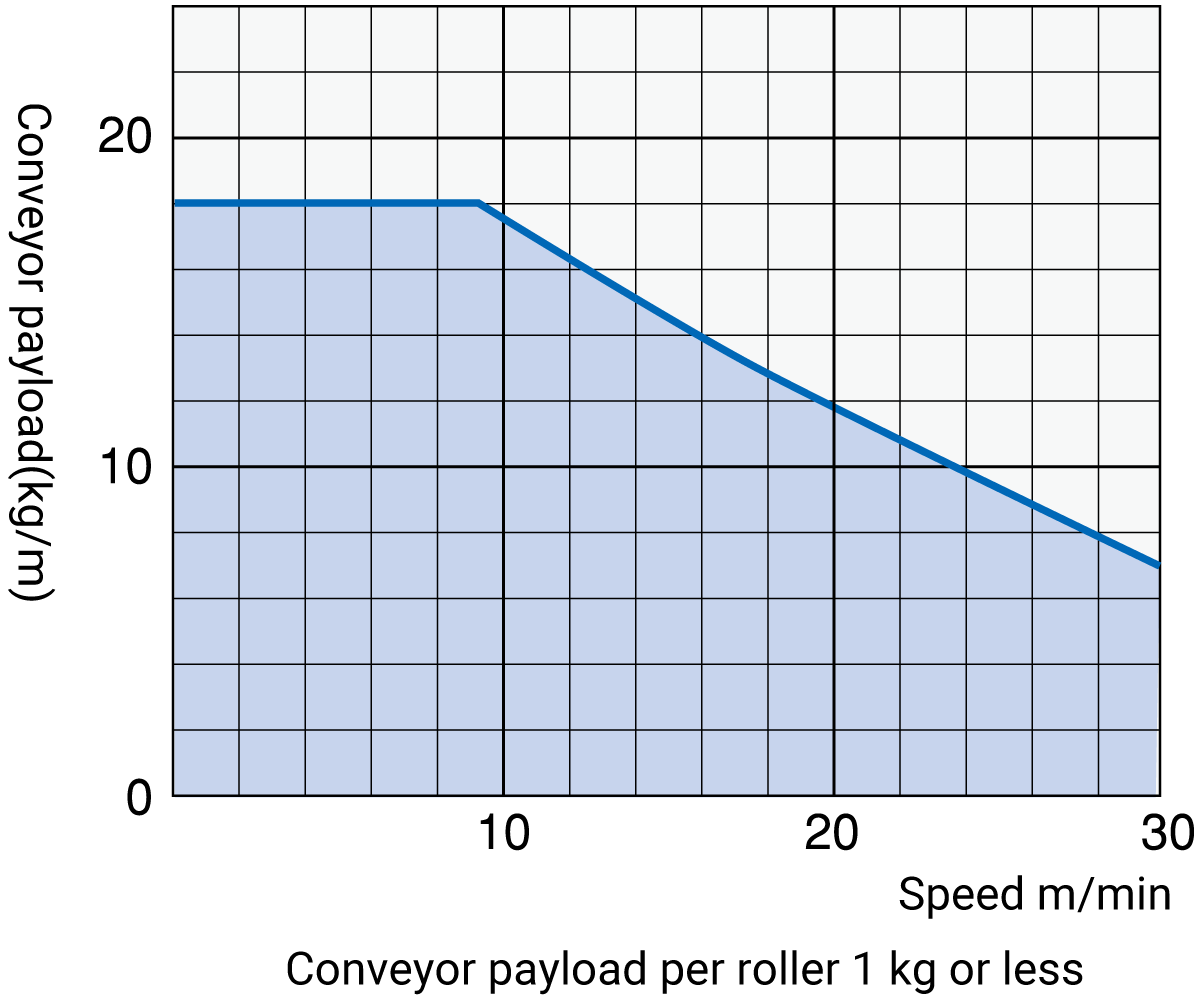

Conveyor payloads
![Specifications](../../common/images/products/mra1/img_08a.png)
![Specifications](../../common/images/products/mra1/img_08L.png)

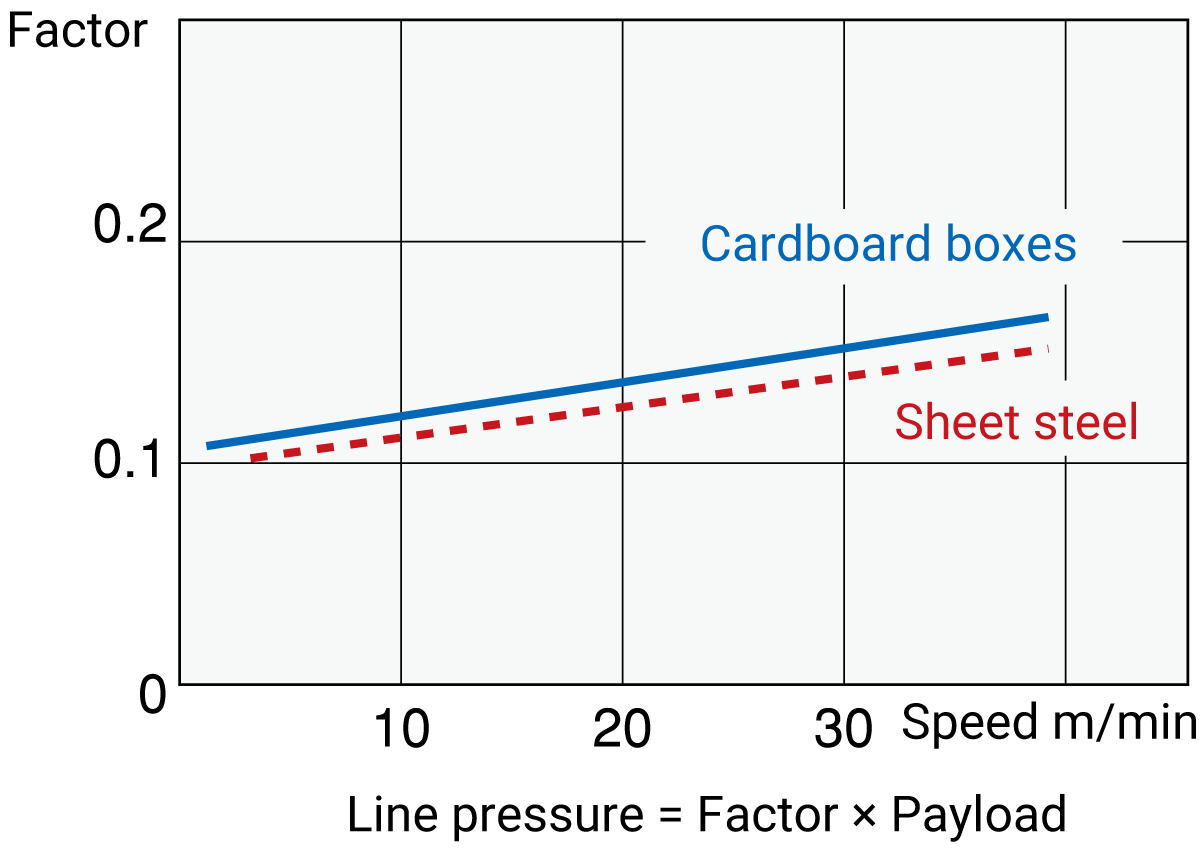

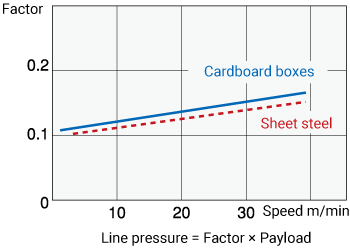

Line pressure chart
![Line pressure chart](../../common/images/products/mra1/img_09a.png)
![Line pressure chart](../../common/images/products/mra1/img_09L.png)

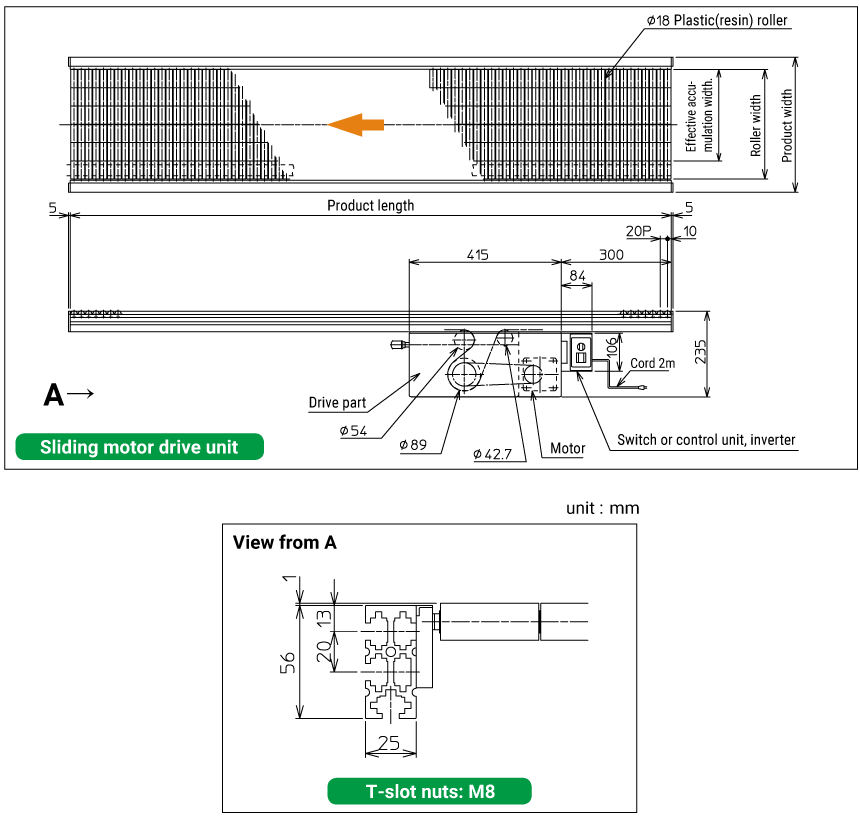

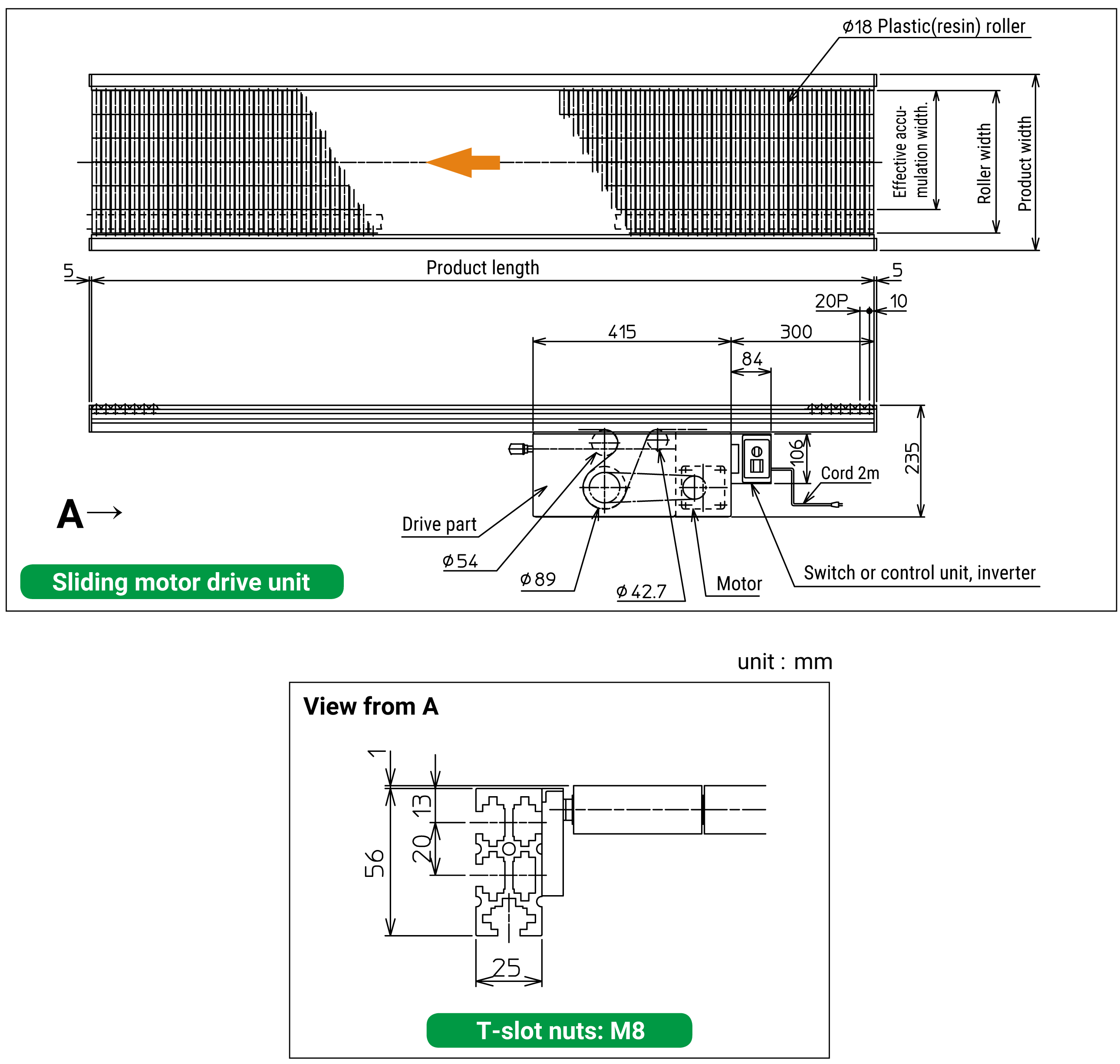

Dimensions, Cross-section
![Dimensions](../../common/images/products/mra1/img_07a.png)
![Dimensions](../../common/images/products/mra1/img_07L.png)

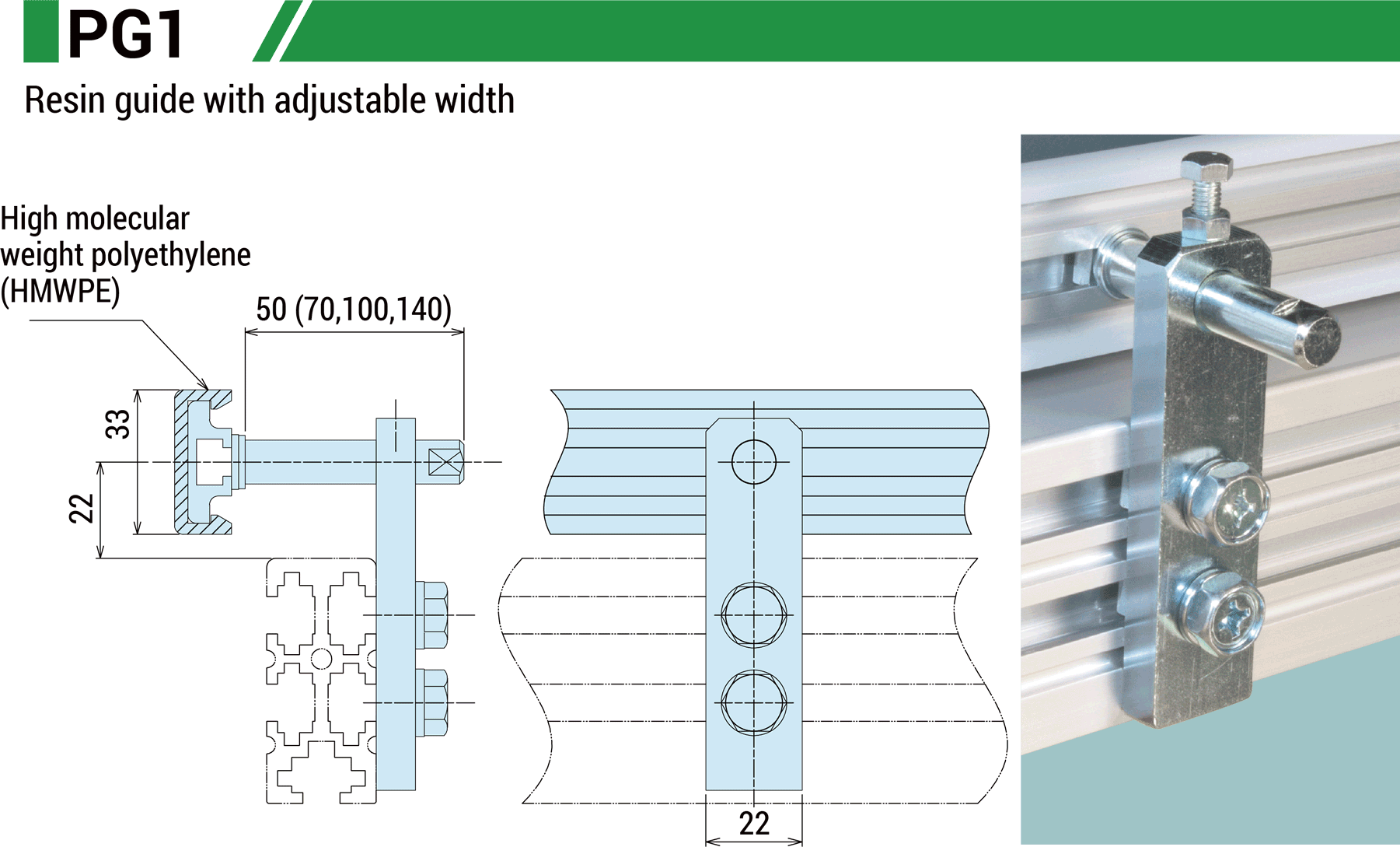

Option(Guide)
![PG1](../../common/images/products/mra1/op_img_01.png)
![PG1](../../common/images/products/mra1/op_img_01L.png)

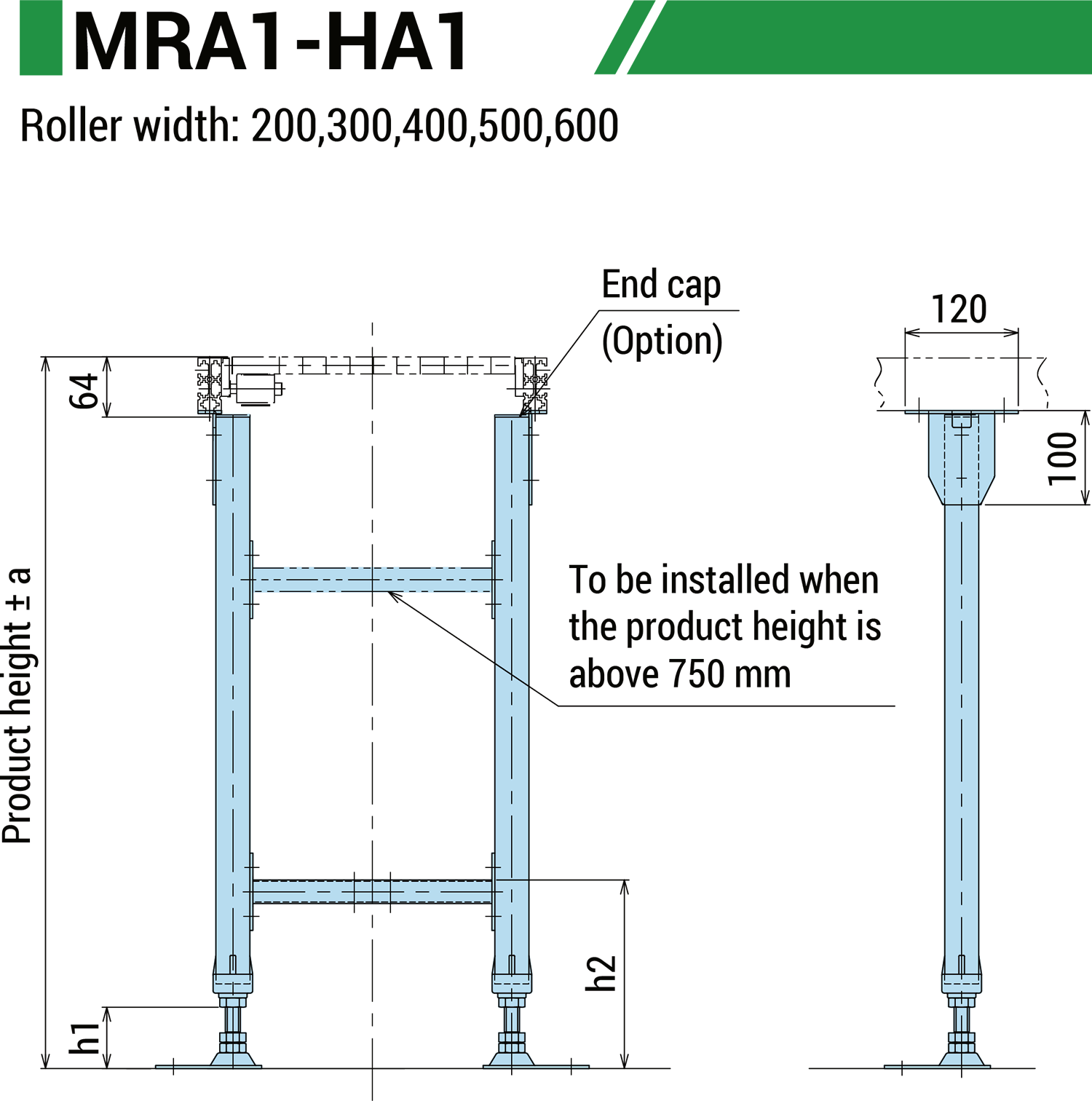

Option(Leg)
![MRA1-HA1](../../common/images/products/mra1/op_img_02.png)
![MRA1-HA1](../../common/images/products/mra1/op_img_02L.png)
