FRU

Ensure a smooth transfer without small transported objects falling into the space between the rollers.
A flat slider can be set on the aluminum frame for use as a conveyor unit.

Products img

FRU

Overview

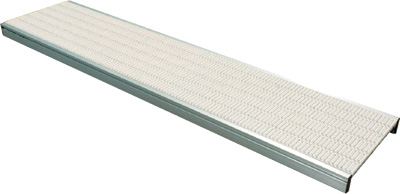

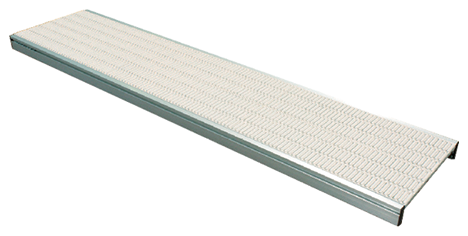

Product appearance

appearance

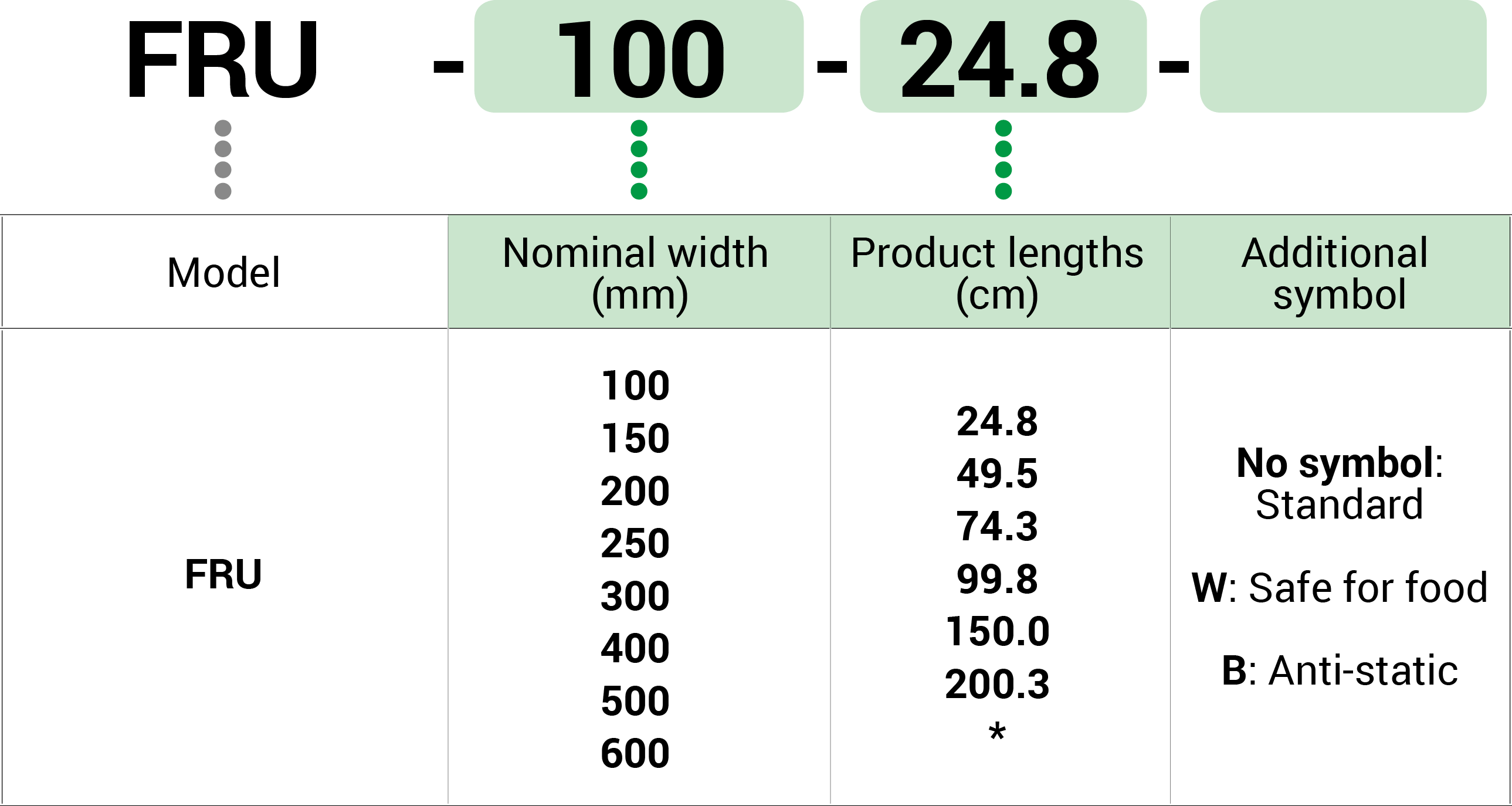

Key to model number designations

Key to model number designations

Click to enlarge image
Inverted illustration

Note:
* The product length is between 6.7 cm and 200.3 cm; a random product length can also be produced at the roller pitch unit (8.2 mm).

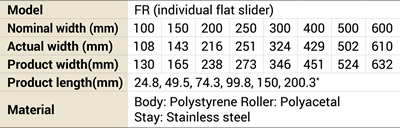

Specifications

Specifications
Specifications

Note:
* The product length is between 6.7 cm and 200.3 cm; a random product length can also be produced at the roller pitch unit (8.2 mm).

Transport weight

Transport weight: 9 kg/m (dispersion load)

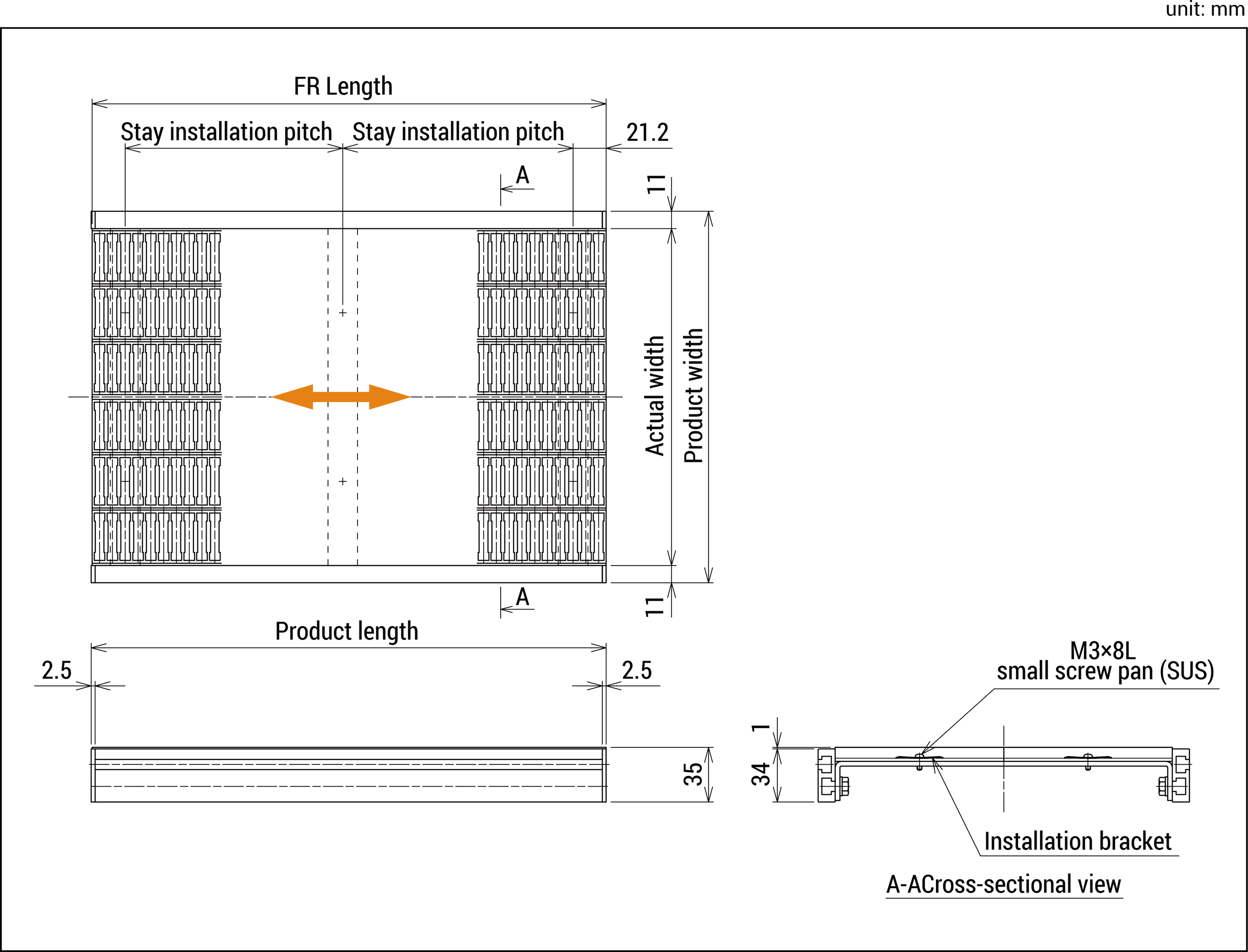

Dimensions

Dimensions

Click to enlarge image
Dimensions

FR

The body thickness is very thin at 9 mm, allowing it to be installed to save space.

Products img

FR

Overview

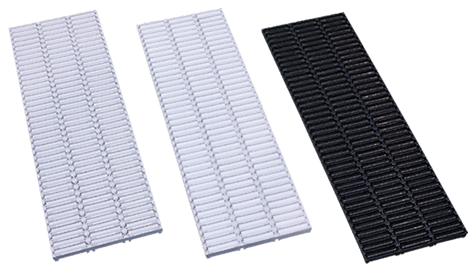

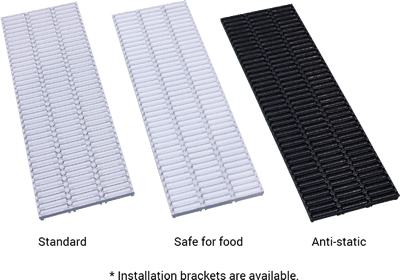

Product appearance

appearance

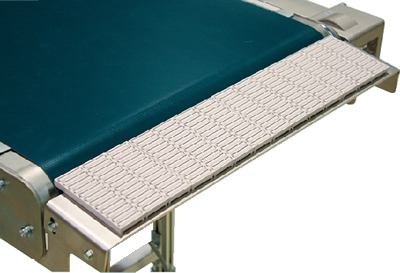

Example of use

Example of use

Can be attached to the end of the conveyor for use as a chute.

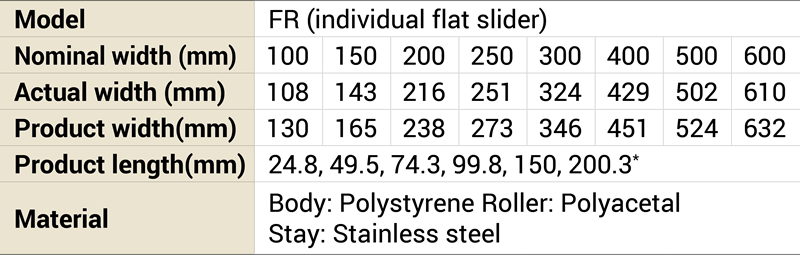

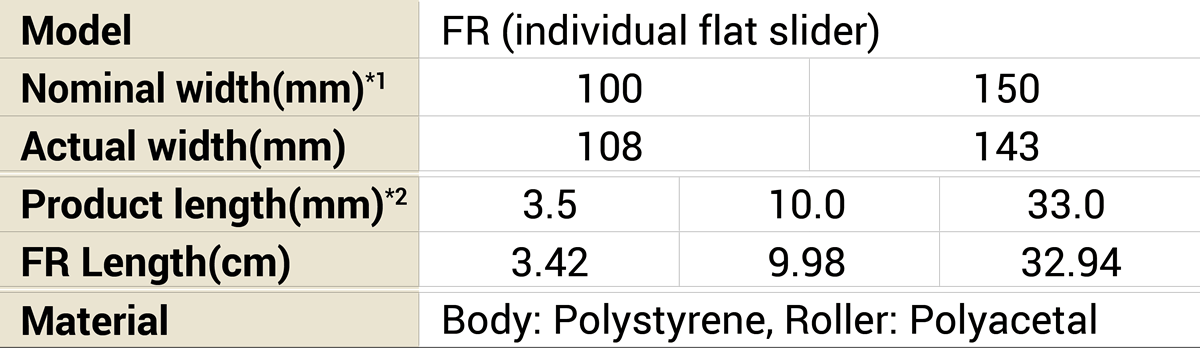

Specifications

Specifications
Specifications

Note:
*1: FR If the flat slider is an individual part, the nominal width is either 100 mm or 150 mm.
3 installation brackets for attaching FR1, and 3 installation screws (small screw pan M3×8L SUS) are included.
*2: A random machine length can also be produced at the roller pitch unit (8.2 mm).
FR length=9.6 + 8.2× number of roller pitches (max 39)

Transport weight

Transport weight: 5 kg/100cm² (dispersion load)

* Assuming the entire lower surface of the roller is received with a flat plate etc.

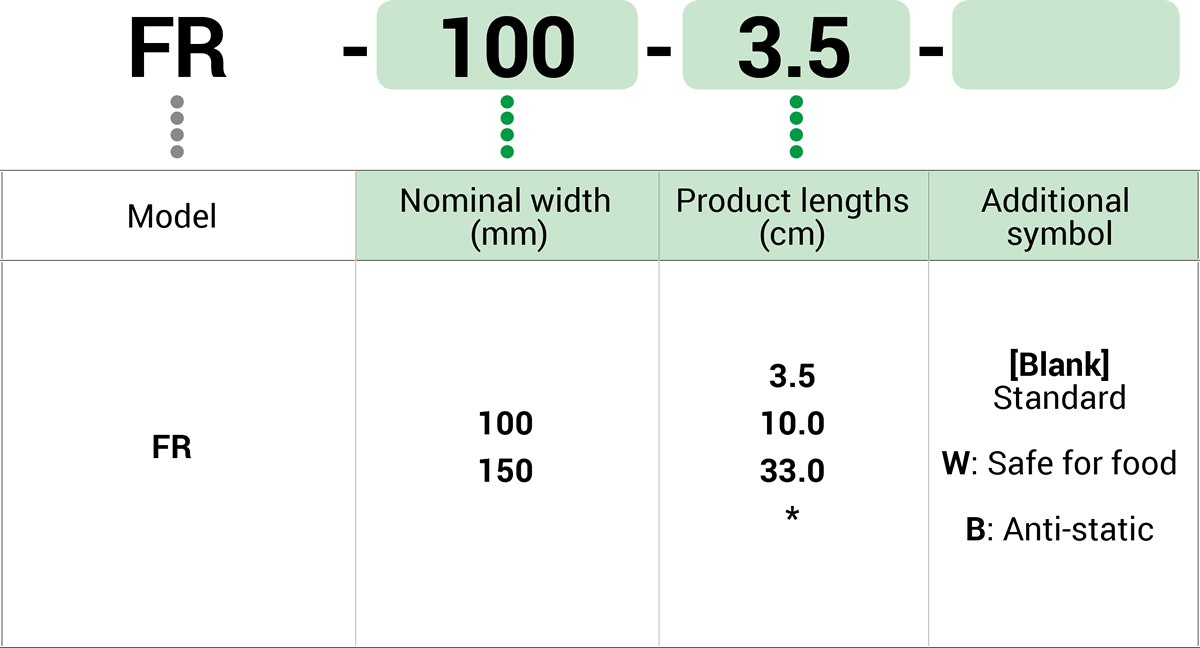

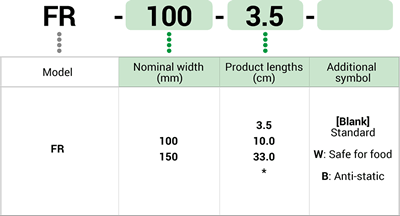

Key to model number designations

Key to model number designations

Click to enlarge image
Inverted illustration

Note:
*A random machine length can also be produced at the roller pitch unit (8.2 mm).
FR length=9.6 + 8.2× number of roller pitches (max 39)

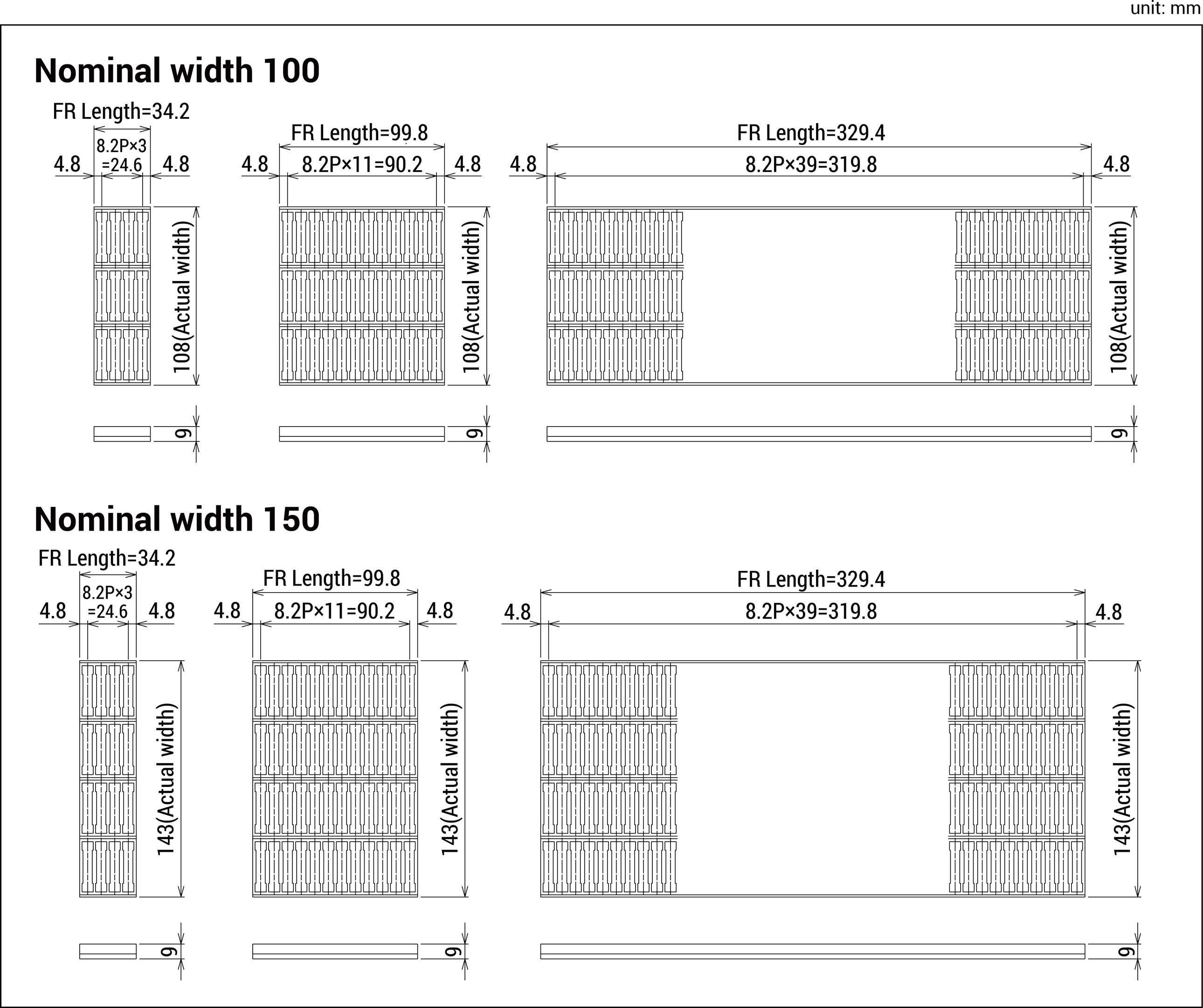

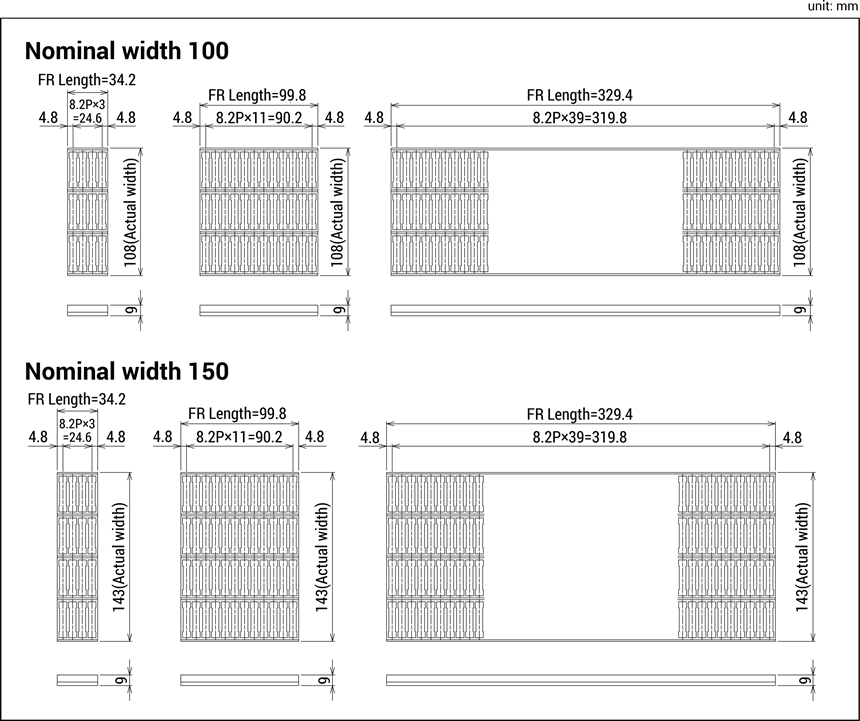

Dimensions

Dimensions

Click to enlarge image
Dimensions
