GM18H
An eco-friendly roller conveyor with a magnet-based drive transmission system.
![Products img](../../common/images/products/gm18h/detail_img.png)
Overview

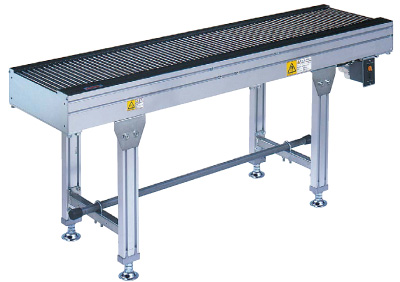

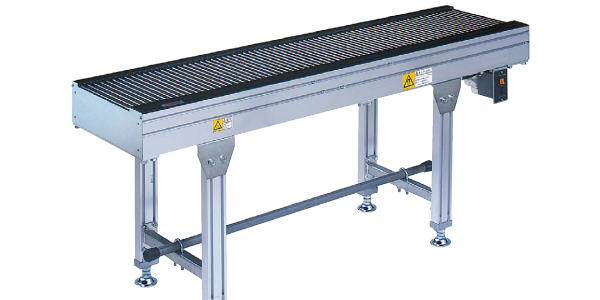

Product appearance
![Product appearance](../../common/images/products/gm18h/img_01.jpg)
Driving concept
![LESSVEYOR](../../common/images/products/gm18h/fig02.jpg)

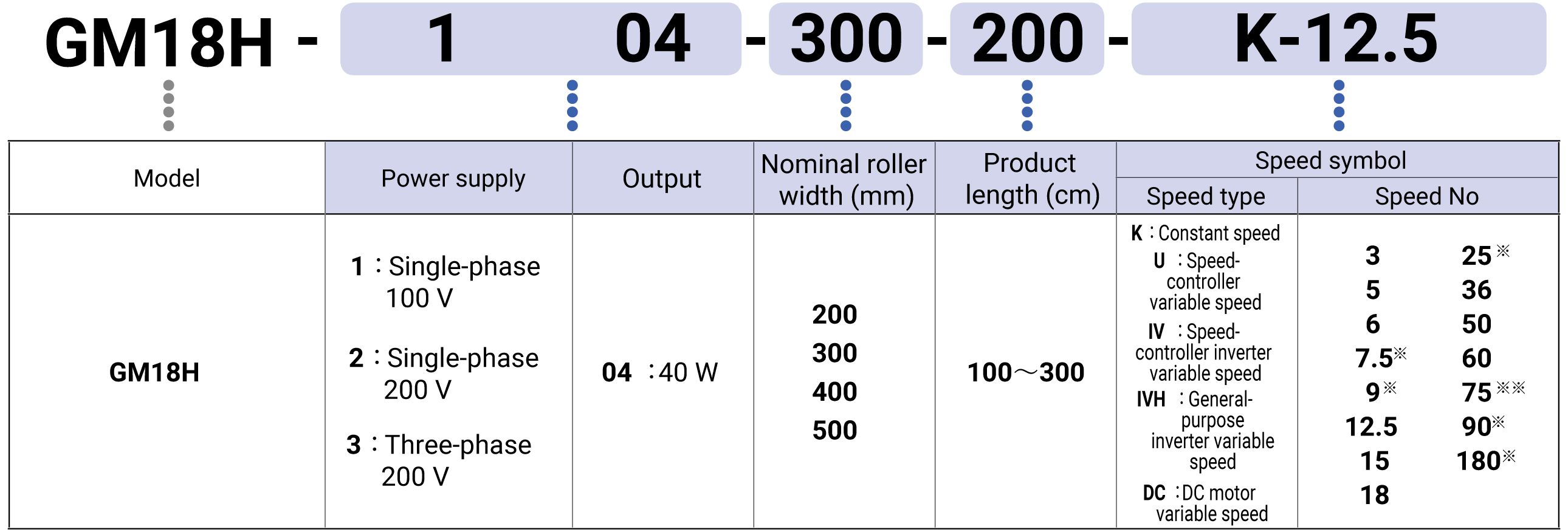

Key to model number designations
![Key to model number designations](../../common/images/products/gm18h/img_03a.png)
![型式表示方法](../../common/images/products/gm18h/img_03L.png)
Note:
Speed Nos. marked by an asterisk (*) are available for constant-speed and inverter variable-speed models. Speed Nos. marked by a double asterisk (**) are available only for speed controller variable-speed models.

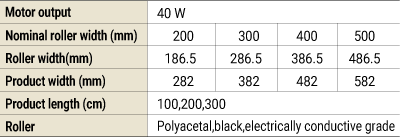

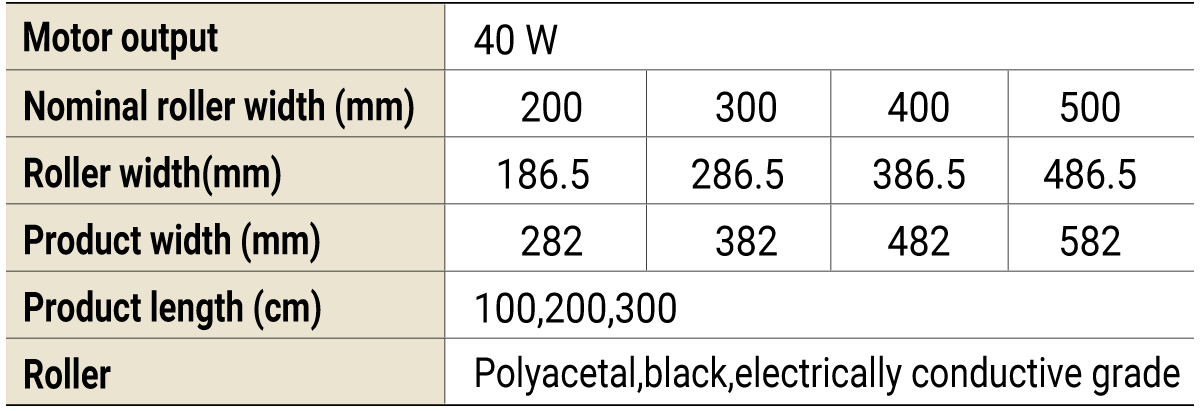

Specifications
![Specifications](../../common/images/products/gm18h/img_04.png)
![Specifications](../../common/images/products/gm18h/img_04L.png)

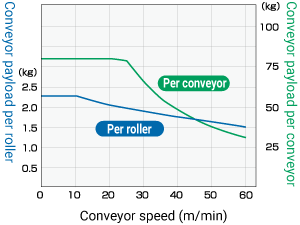

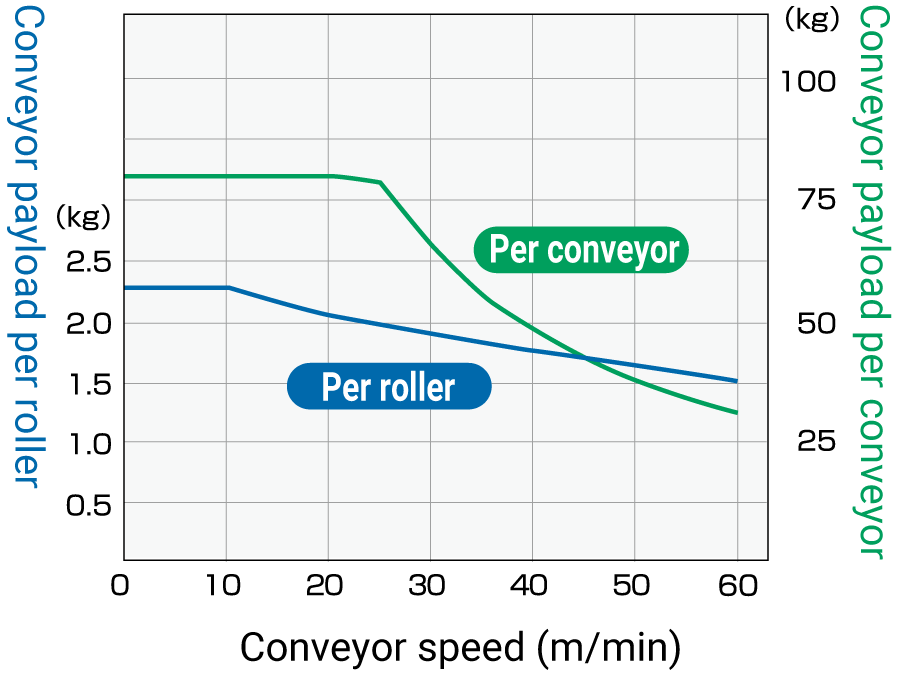

Conveyor payloads
![Conveyor payloads](../../common/images/products/gm18h/img_05.png)
![Conveyor payloads](../../common/images/products/gm18h/img_05L.png)
*For a roller width of 500 mm, the maximum conveyor payload per roller is 1.2 kg.
*Your conveyor payload must be within the supported ranges for both payload per roller and payload per conveyor.

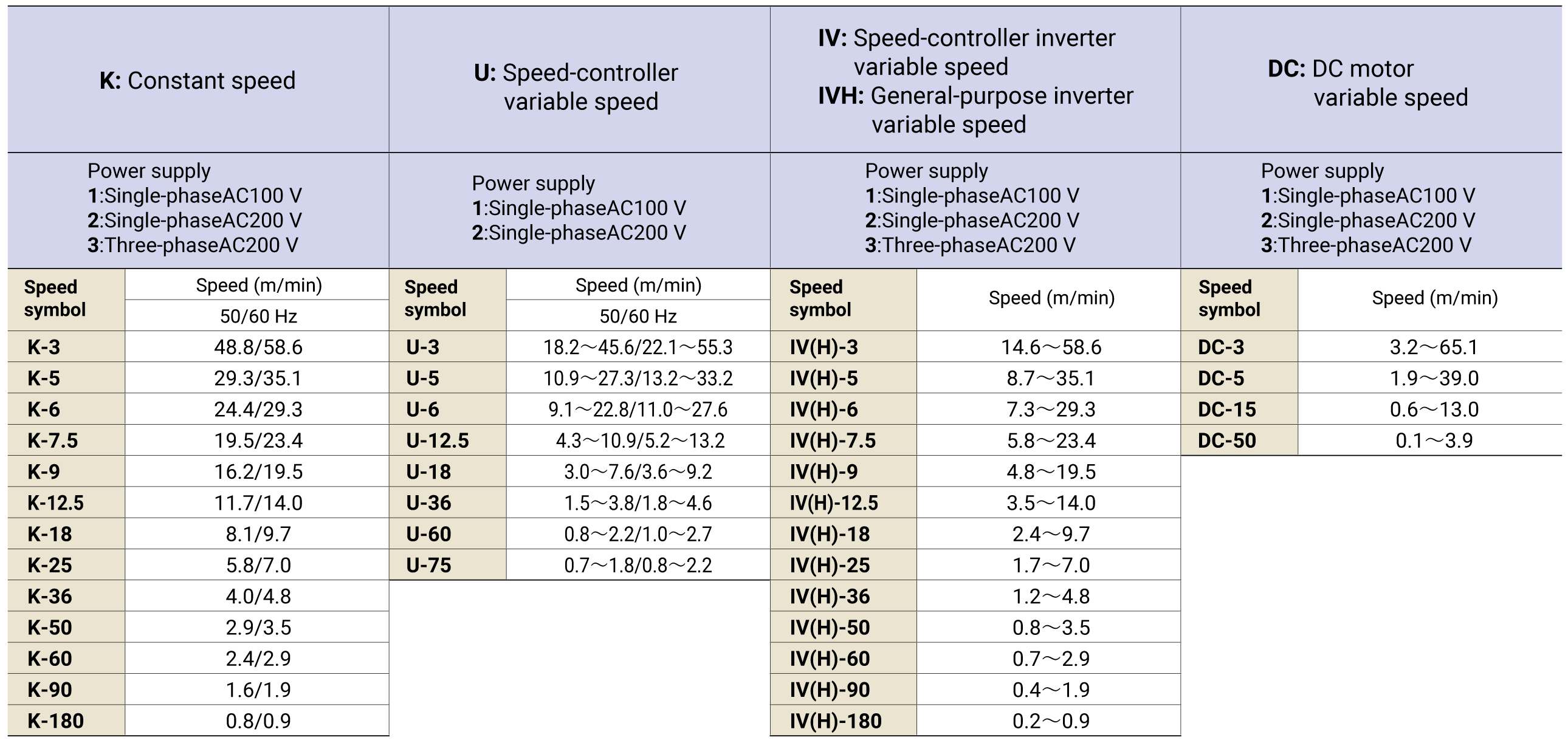

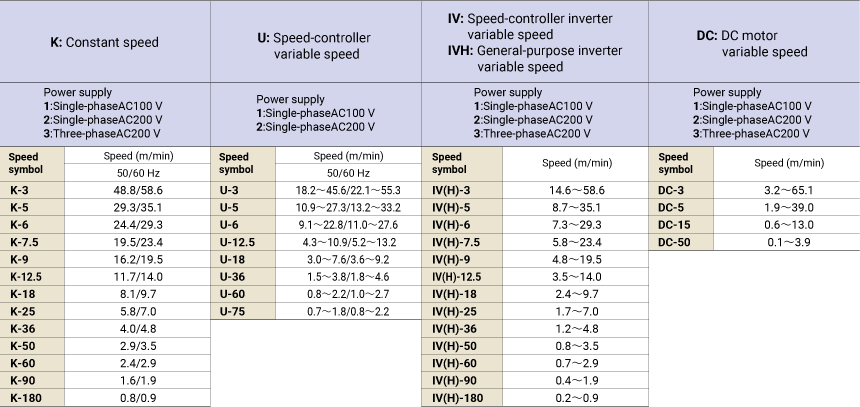

Power supplies and speeds
![Power supplies and speeds](../../common/images/products/gm18h/img_06.png)
![Power supplies and speeds](../../common/images/products/gm18h/img_06L.png)
Note:
(1) Actual speeds may vary by up to 10% less than the values shown, depending on the motor characteristics and payload.
(2) Speeds of DC motor variable speed models may vary by up to 0.6% more or less than the values shown, depending on the motor characteristics and payload.
(3) Variable-speed models should only be used within the specified speed range since low-speed operation may cause motor burnout.

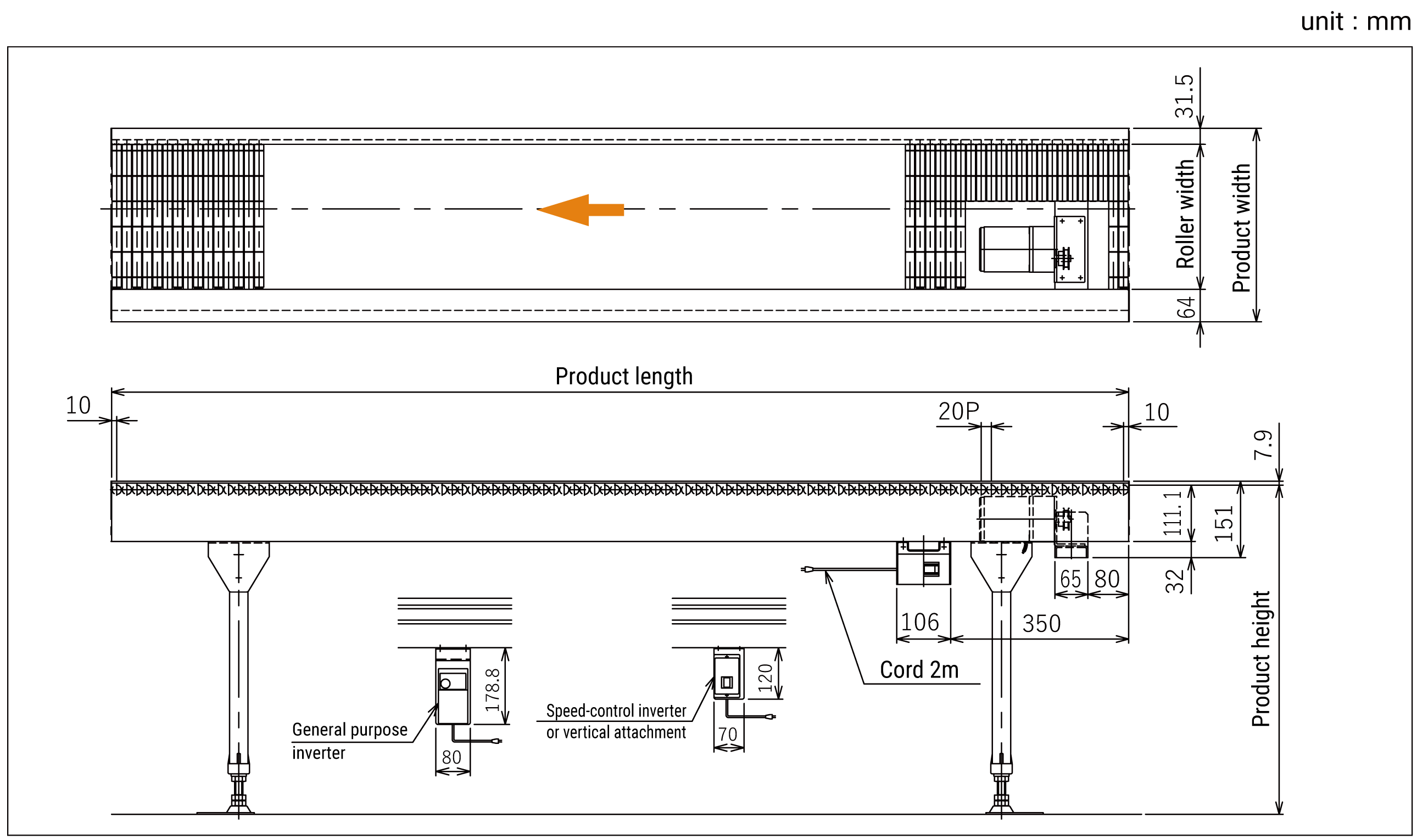

Dimensions
![Dimensions](../../common/images/products/gm18h/img_07a.png)
![Dimensions](../../common/images/products/gm18h/img_07L.png)

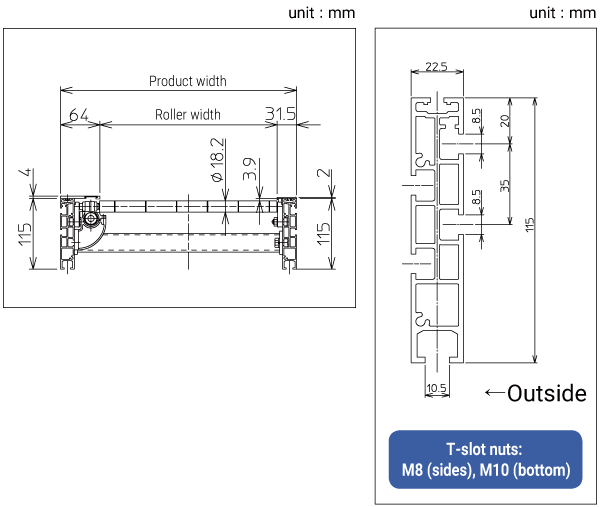

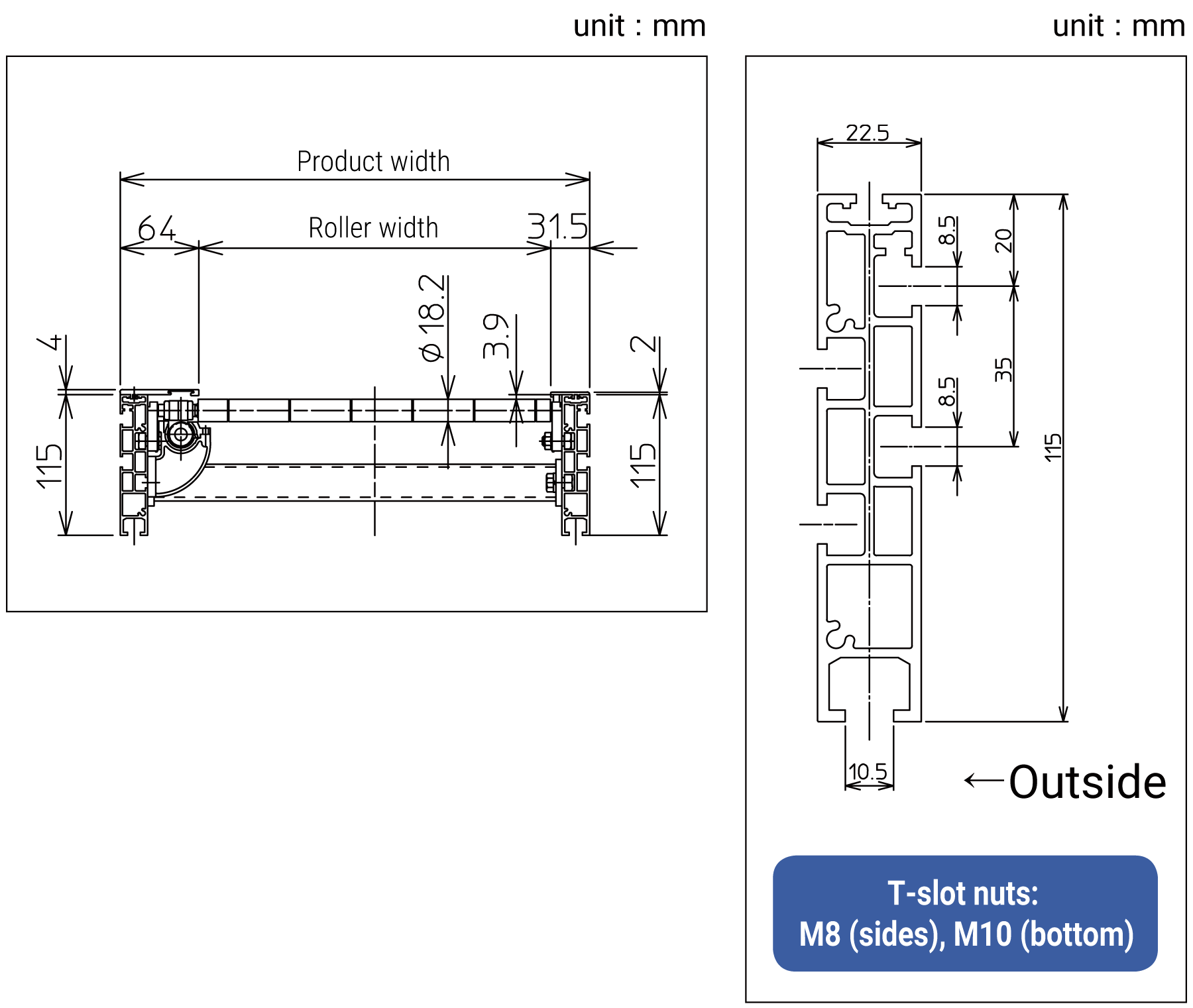

Cross-section, Frame Cross-section
![Cross-section](../../common/images/products/gm18h/img_08a.png)
![Cross-section](../../common/images/products/gm18h/img_08L.png)

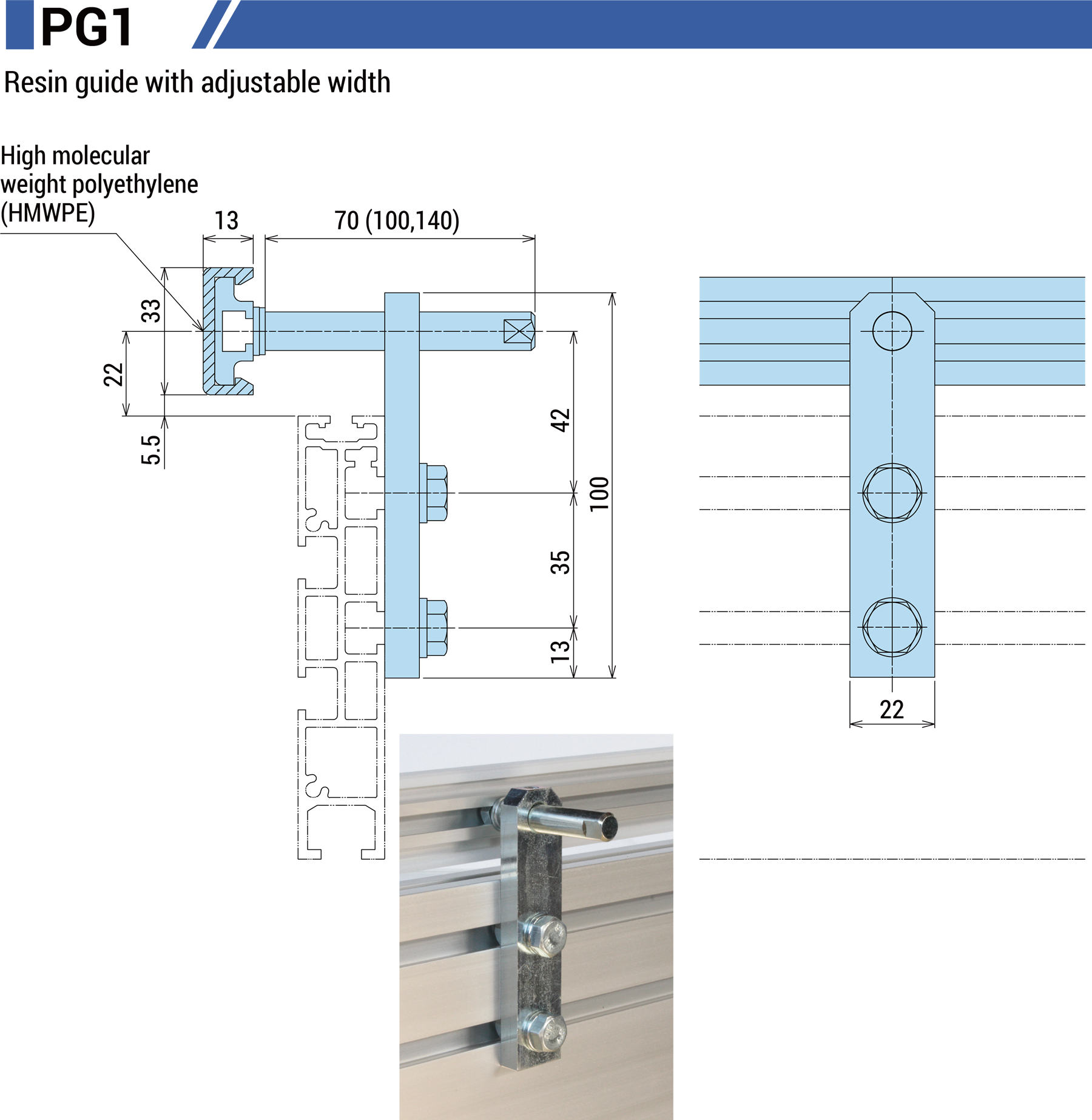

Option(Guide)
![PG1](../../common/images/products/gm18h/op_img_01.png)
![PG1](../../common/images/products/gm18h/op_img_01L.png)

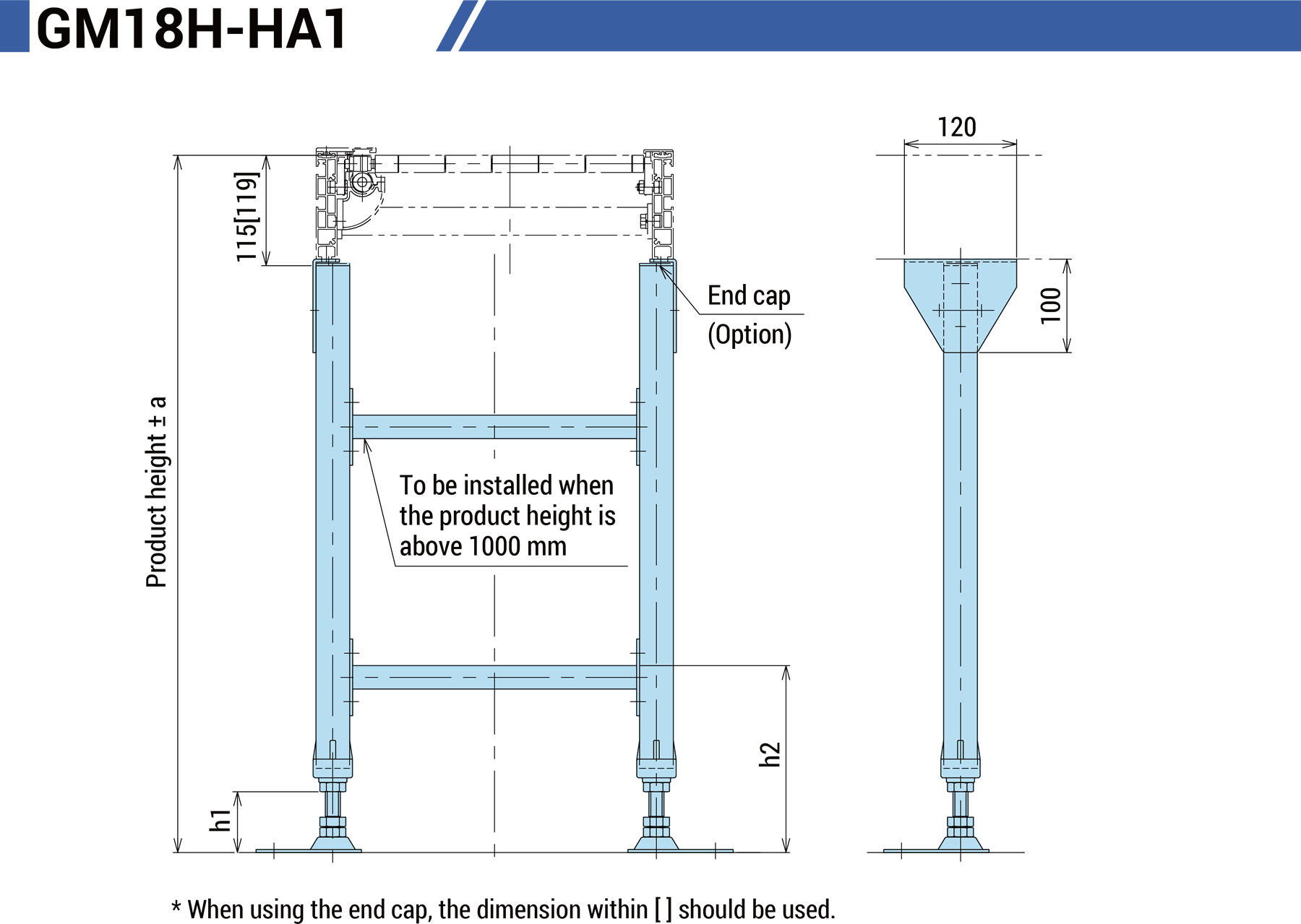

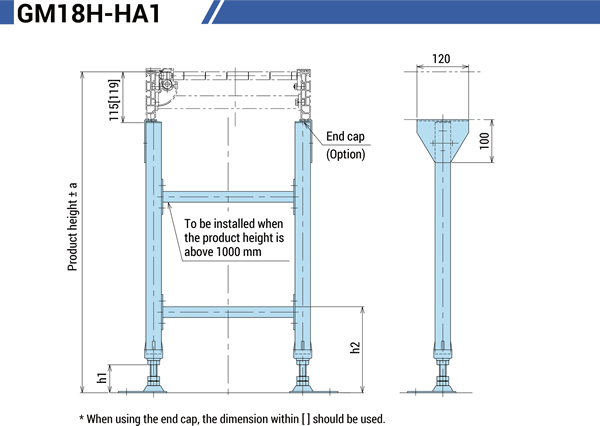

Option(Leg)
![GM18H-HA1](../../common/images/products/gm18h/op_img_02.png)
![GM18H-HA1](../../common/images/products/gm18h/op_img_02L.png)
